Nisshinbo Micro Devices Inc.

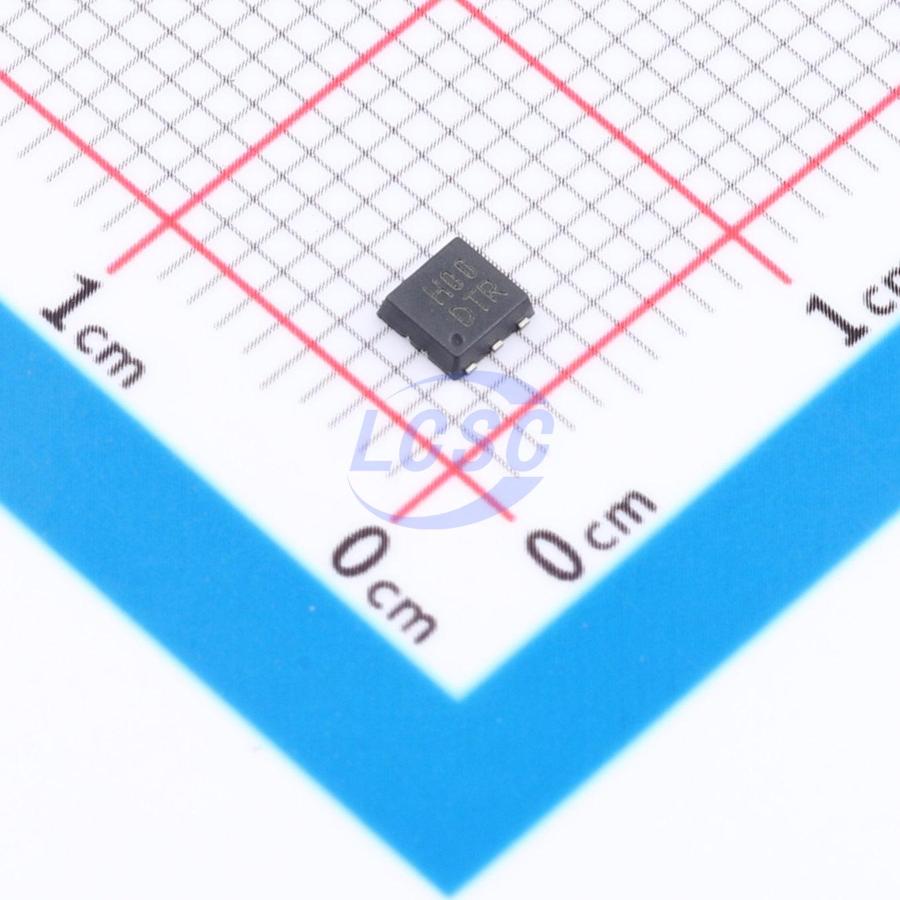

R1173D001D-TR-FE

1V~6V Positive Adjustable HSON-6(2.8x2.9) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

HSON-6(2.8x2.9)ROHS3 CompliantActive

Manufacturer: Nisshinbo Micro Devices Inc.
Manufacturer part #: R1173D001D-TR-FE
Store part #: C5251290
Package / case: HSON-6(2.8x2.9)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,958 in stock

#C5251290

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹84.74	₹84.74
10+	₹68.02	₹680.20
30+	₹59.54	₹1,786.20
100+	₹51.28	₹5,128.00
500+	₹46.28	₹23,140.00
1,000+	₹43.67	₹43,670.00

Quantity (min 1)

1 × ₹84.74

₹84.74

excl. GST

₹99.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

R1173D001D-TR-FE

₹84.74 for 1 + GST

Specifications

Output Voltage: 1V~6V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 60uA
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 1A
Features: Thermal shutdown;Over Current Protection
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.034 g

Overview

The R1173x Series are CMOS-based positive voltage regulator ICs. The R1173x Series have features of super low dropout, 1A output current capability, and -3mV typical load regulation at 1A. Even the output voltage is set at 1.5V, on resistance of internal FET is typically 0.32Ω. Therefore, applications that require a large current at small dropout are suitable for the R1173x series. Low input voltage is acceptable and low output voltage can be set. The minimum input voltage is 1.4V, and the lowest set output voltage is 0.8V. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor net for setting output voltage, a current limit circuit at overcurrent, a chip enable circuit, a thermal-shutdown circuit, and so on. A stand-by mode with ultra low consumption current can be realized with the chip enable pin. The output voltage types of R1173 are fixed one in the IC and adjustable one (R1173x001x). Since the packages for these ICs are the SOT-89-5 package, HSON-6, or HSOP-6J, high density mounting of the ICs on boards is possible.

Applications

Local Power source for Notebook PC.
Local Power source for portable communication equipments, cameras, and videos.
Local Power source for home appliances.

Key features

Output Current: 1A
Supply Current: Typ. 60µA
Standby Current: Typ. 0.1µA
Input Voltage Range: 1.4V to 6.0V
Output Voltage Range: 0.8V to 5.0V (0.1V steps) (R1173xxx1); 1.0V to VIN (R1173x001)
Dropout Voltage: Typ. 0.32V (VOUT = 1.5V, IOUT = 1A); Typ. 0.18V (VOUT = 2.8V, IOUT = 1A)
Ripple Rejection: Typ. 70dB (Vout = 2.8V)
Output Voltage Accuracy: ±2.0%
Temperature-drift Coefficient of Output Voltage: Typ. ±100ppm/°C
Line Regulation: Typ. 0.05%/V
Load Regulation: Typ. -2mV (IOUT = 300mA); Typ. -3mV (IOUT = 1A)
Packages: SOT-89-5, HSON-6, HSOP-6J
Low inrush current at turning-on: Typ. 500mA
Built-in Thermal Shutdown Circuit
Built-in Current Limit Circuit: Typ. 250mA
Output capacitors: CIN = Ceramic 4.7µF; COUT = Tantalum 4.7µF (VOUT < 1.0V); COUT = Ceramic 4.7µF (Vout ≥ 1.0V)
