RENESASDatasheet (PDF)

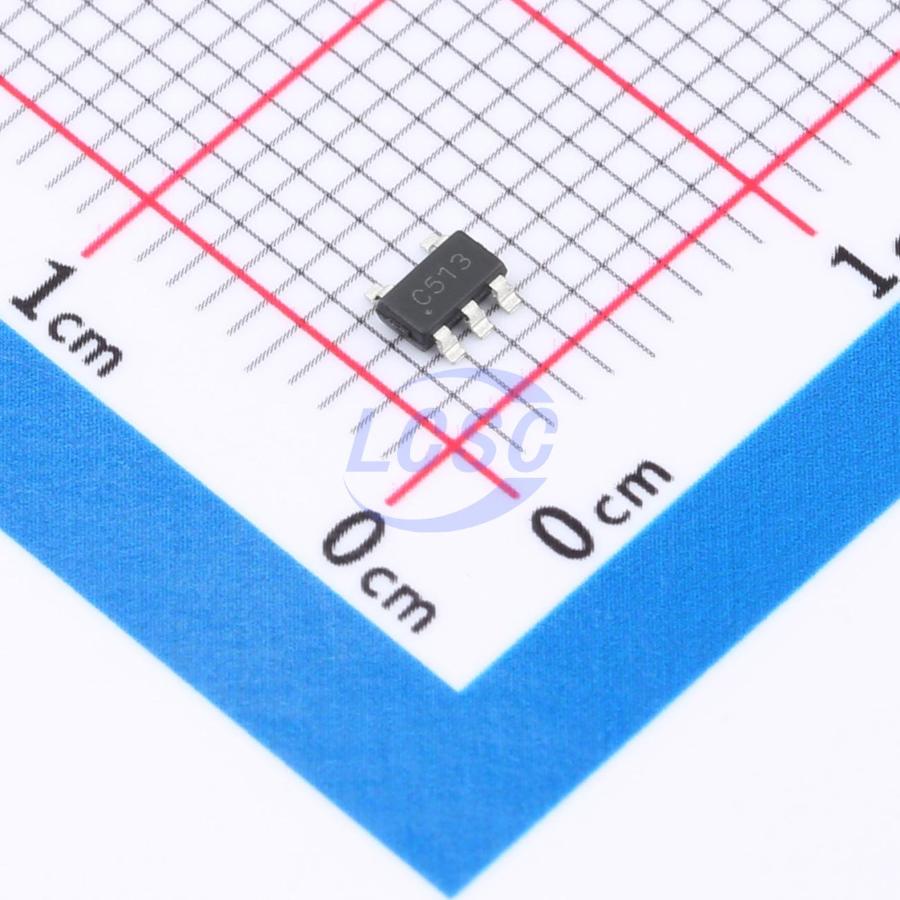

RAA2230124GP3#JA0
190mA 50kHz 1W 700V 6.5V Buck 3.3V TSOT-23-5 AC DC Converters, Offline Switchers RoHS
TSOT-23-5ROHS3 CompliantActive
700V AC/DC Buck Regulator with Ultra-Low Standby Power
- Manufacturer
- RENESAS
- Manufacturer part #
- RAA2230124GP3#JA0
- Store part #
- C3093984
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
999 in stock
#C3093984
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹221.22 | ₹221.22 |
| 10+ | ₹187.75 | ₹1,877.50 |
| 30+ | ₹166.90 | ₹5,007.00 |
| 100+ | ₹145.38 | ₹14,538.00 |
| 500+ | ₹135.82 | ₹67,910.00 |
| 1,000+ | ₹131.47 | ₹1,31,470.00 |
1 × ₹221.22
₹221.22
excl. GST
₹261.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RAA2230124GP3#JA0
₹221.22 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 190mA
- Frequency - Switching
- 50kHz
- Pd - Power Dissipation
- 1W
- Voltage - Breakdown
- 700V
- Voltage - Supply
- 6.5V
- Topology
- Buck
- Features
- Light load efficient mode;EMI optimization (spread spectrum);Brown-in/Brown-out detection;Hiccup current limiting;Audio noise elimination;Leading edge blanking;Under-voltage lockout;Short Circuit Protection;Overtemperature protection (OTP)
- Output Voltage
- 3.3V
- Working Mode
- PFM Modulation
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
The RAA223012 is a universal input AC/DC switching buck regulator with ultra-low standby power that features a 700V integrated MOSFET capable of delivering up to 2.5W output power. It supports output voltage as low as 3.3V. The RAA223012 combines constant off-time control for heavy load and Pulse Frequency Modulation (PFM) for light-load operation. Constant off-time controls switching frequency above the audible frequency of approximately 50kHz. PFM eliminates any potential audible noises while offering superior light-load efficiency and ultra-low power consumption (<10mW at no load). Efficiency is achieved up to 75%. The built-in frequency dithering further reduces the EMI noise spectrum. The RAA223012 also features input brownout protection that prevents input circuitry from the overcurrent at low input voltage, and hiccup protections for output fault conditions such as short-circuit, overload, and open feedback. The RAA223012 is available in a small 5 Ld TSOT23 and 8 Ld SOIC packages.
Applications
- Home appliances
- Home automation, IoT, and sensors
- Metering and Industry control Bias power
Key features
- Ultra low standby power (<10mW)
- No audible noise
- Low quiescent current (<100μA)
- Output voltage as low as 3.3V
- Low EMI with frequency dithering
- 5 Ld TSOT23 and 8 Ld SOIC package options
- Programmable PFM allows optimization of COUT for various standby power requirements
- Protection features: Short-Circuit Protection (SCP), Overload Protection (OLP), Open Feedback Protection, and Over-Temperature Protection (OTP).
