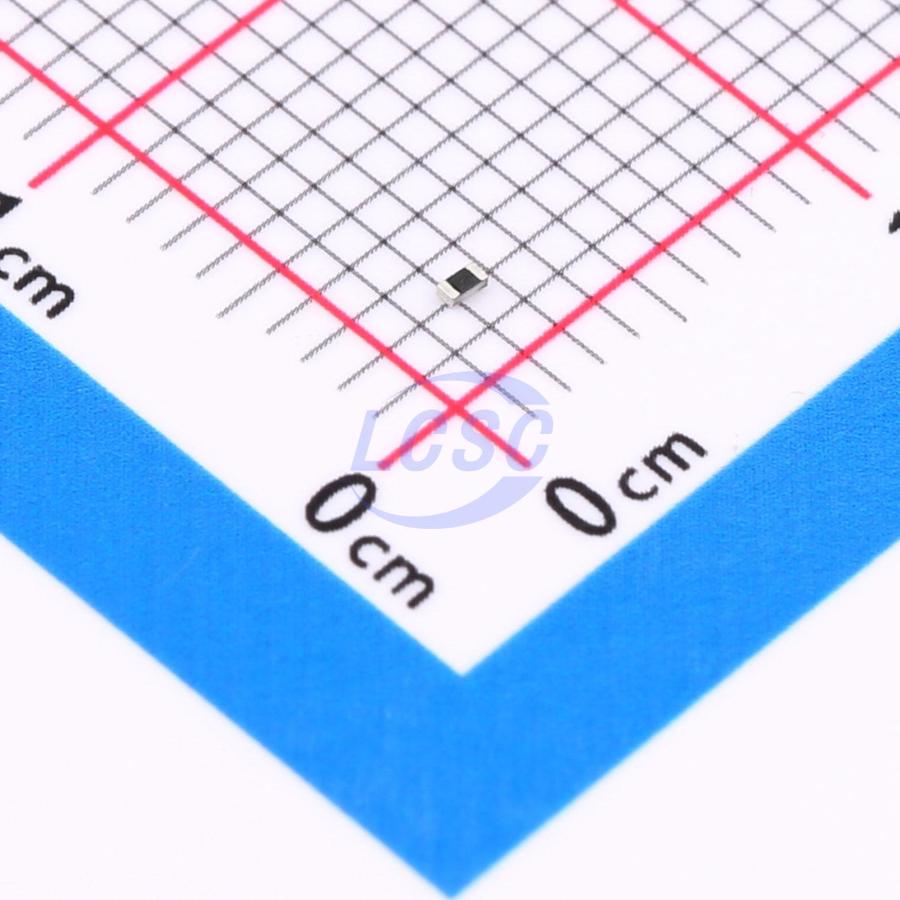

RC0402FR-07100RL
100Ω 62.5mW 50V Thick Film Resistor ±100ppm/℃ ±1% 0402 Chip Resistor - Surface Mount RoHS
RES 100Ω ±1% 62.5mW 0402
- Manufacturer
- YAGEO
- Manufacturer part #
- RC0402FR-07100RL
- Store part #
- C106232
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
83,95,400 in stock
#C106232
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.242 | ₹24.20 |
| 1,000+ | ₹0.198 | ₹198.00 |
| 3,000+ | ₹0.176 | ₹528.00 |
| 10,000+ | ₹0.165 | ₹1,650.00 |
| 50,000+ | ₹0.154 | ₹7,700.00 |
100 × ₹0.242
₹24.20
excl. GST
₹28.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
RC0402FR-07100RL
₹24.20 for 100 + GST
Specifications
- Resistance
- 100Ω
- Power(Watts)
- 62.5mW
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.01 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT021000FTH#C102747RALEC · 0402 | RALEC | 0402 | 31,200 | ₹0.154 · 31,200 in stock | View |
 | AC0402FR-07100RL#C144808YAGEO · 0402 | YAGEO | 0402 | 7,77,200 | ₹0.341 · 7,77,200 in stock | View |
 | WR04X1000FTL#C163808Walsin · 0402 | Walsin | 0402 | 7,91,000 | ₹0.198 · 7,91,000 in stock | View |
 | FRQ0402F1000TS#C18222274FOJAN · 0402 | FOJAN | 0402 | 9,400 | ₹0.363 · 9,400 in stock | View |
 | CR0402-FX-1000GLF#C202393BOURNS · 0402 | BOURNS | 0402 | 700 | ₹0.440 · 700 in stock | View |
Questions about RC0402FR-07100RL
What Should I Look for When Selecting Alternatives or Replacements for This Component?
When seeking a replacement for the YAGEO RC0402FR-07100RL, ensure the replacement matches the critical specifications: a 100Ω resistance, ±1% tolerance, an 0402 package size, and a power rating of at least 62.5mW (1/16 W). You should also verify that the temperature coefficient (±100ppm/°C) meets your design's thermal stability requirements.
What Are the Common Application Scenarios for This 100 Ohm Resistor?
This high-precision, low-power thick film resistor is ideal for space-constrained applications. Common scenarios include pull-up/pull-down networks, signal conditioning, impedance matching, and current limiting in consumer electronics, mobile devices, telecommunications equipment, and industrial control circuits.
What Are the Key Technical Specifications and Operating Limits of This Component?
The YAGEO RC0402FR-07100RL features a 100Ω resistance with a tight ±1% tolerance. It is rated for a maximum power of 62.5mW (1/16 W) and a maximum working voltage of 50V. It operates reliably across a wide temperature range from -55°C to +155°C with a temperature coefficient of ±100ppm/°C.
How Should This Resistor Be Handled and Implemented During Board Layout and Soldering?
Since 0402 components are extremely small, high-precision solder stencil design and accurate pick-and-place alignment are critical to prevent defects like "tombstoning." Ensure PCB pads are dimensioned according to the manufacturer's recommended footprints, and follow standard lead-free reflow profiles corresponding to its -55°C to +155°C temperature rating.
Is This Resistor Compatible With standard 0402 Surface-Mount Technology (SMT) Assembly Processes?
Yes, this resistor is fully compatible. It features a standard 0402 surface-mount package (0.4 mm x 0.2 mm) and a standard thick-film construction, making it compatible with standard automated pick-and-place equipment and standard reflow soldering profiles.
