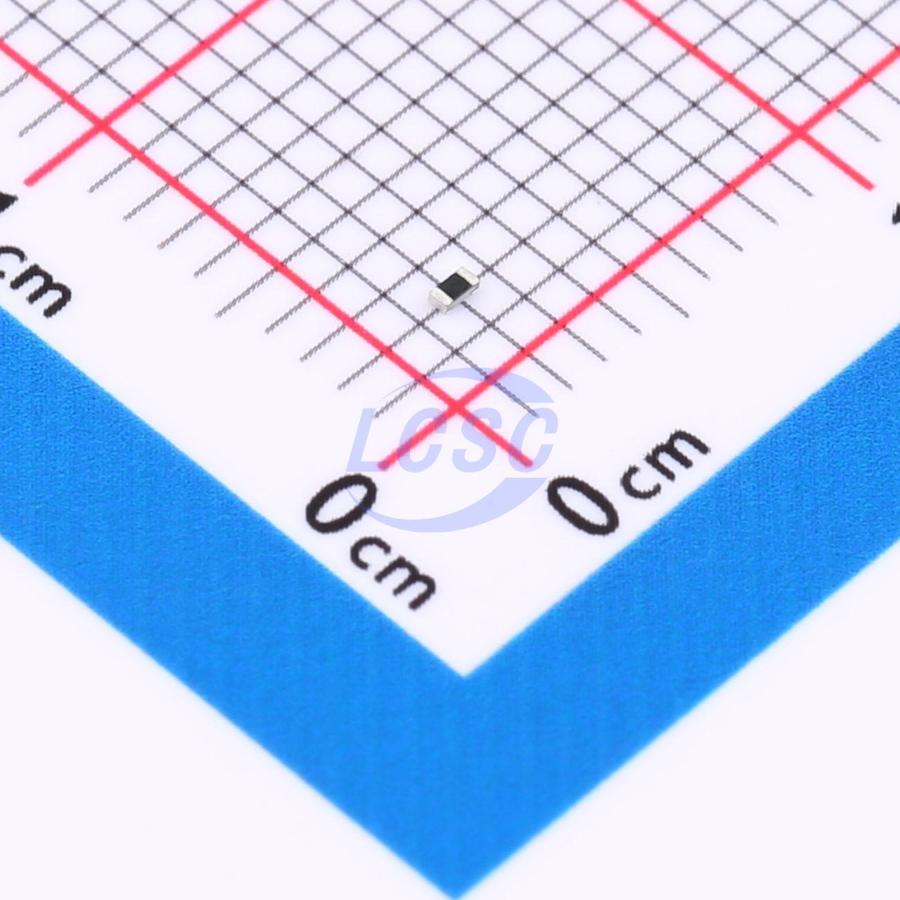

RC0402FR-0710KL
62.5mW 10kΩ 50V Thick Film Resistor ±100ppm/℃ ±1% 0402 Chip Resistor - Surface Mount RoHS
RES 10kΩ ±1% 62.5mW 0402
- Manufacturer
- YAGEO
- Manufacturer part #
- RC0402FR-0710KL
- Store part #
- C60490
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46,02,200 in stock
#C60490
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.3043 | ₹30.43 |
| 1,000+ | ₹0.2514 | ₹251.40 |
| 3,000+ | ₹0.2117 | ₹635.10 |
| 10,000+ | ₹0.1985 | ₹1,985.00 |
| 50,000+ | ₹0.1852 | ₹9,260.00 |
100 × ₹0.3043
₹30.43
excl. GST
₹35.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
RC0402FR-0710KL
₹30.43 for 100 + GST
Specifications
- Power(Watts)
- 62.5mW
- Resistance
- 10kΩ
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.01 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CR0402-FX-1002GLF#C202396BOURNS · 0402 | BOURNS | 0402 | 8,20,000 | ₹0.3837 · 8,20,000 in stock | View |
 | CRG0402F10K#C2074114TE Connectivity · 0402 | TE Connectivity | 0402 | 2,100 | ₹2.43 · 2,100 in stock | View |
 | CRCW040210K0FKED#C71617VISHAY · 0402 | VISHAY | 0402 | 4,79,500 | ₹0.4895 · 4,79,500 in stock | View |
 | RMCF0402FT10K0#C6111655SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | 3,900 | ₹0.344 · 3,900 in stock | View |
 | ERJ2RKF1002X#C191123PANASONIC · 0402 | PANASONIC | 0402 | 2,42,300 | ₹0.6086 · 2,42,300 in stock | View |
Questions about RC0402FR-0710KL
What are the key electrical and physical specifications of the YAGEO RC0402FR-0710KL resistor?
The YAGEO RC0402FR-0710KL is a 10kΩ thick-film chip resistor with a tight ±1% tolerance, suited to stable signal-level applications such as voltage dividers and pull-up networks. It uses an 0402 (1005 metric) package, measuring about 1.0mm × 0.5mm with a low profile around 0.35mm high. It is rated 62.5mW (1/16W) and 50V, making it well suited to space-constrained, low-power PCB designs where electrical stability matters.
Can the YAGEO RC0402FR-0710KL be used in 3.3V and 5V logic and analog circuits?
Yes. The RC0402FR-0710KL works in 3.3V and 5V digital and analog circuits, including Arduino, ESP32, STM32, and Raspberry Pi systems, where 10kΩ is a standard pull-up/pull-down value for GPIO stabilisation. At 5V it draws only 0.5mA (5V ÷ 10kΩ) and dissipates about 2.5mW, far below its 62.5mW rating. That makes it safe for signal conditioning, ADC biasing, and logic interfacing, but not for power delivery or high-current paths.
How reliable is the YAGEO RC0402FR-0710KL under long-term thermal and electrical stress?
The RC0402FR-0710KL operates from −55°C to +155°C, suiting industrial-grade environments, and has a temperature coefficient of ±100ppm/°C for predictable drift. Long-term reliability depends on power derating: operation at higher ambient temperatures calls for reduced load to limit resistance drift. The thick-film construction gives stable general-purpose performance, though continuous operation near maximum power can slightly affect long-term tolerance stability.
What packaging format and procurement options are available for the YAGEO RC0402FR-0710KL?
The RC0402FR-0710KL is supplied on standard tape-and-reel for automated SMT assembly, with a full reel of about 10,000 pieces. Cut-tape and small quantities are widely available for prototyping and evaluation. For production, full-reel ordering is preferred to ensure stable pick-and-place feeding and consistent throughput. Availability can vary with distributor stock and regional supply.
What PCB layout practices should be followed when using a 0402 10kΩ resistor like the YAGEO RC0402FR-0710KL?
Use an IPC-compliant 0402 land pattern (about 1.0mm × 0.5mm footprint) to ensure good solder wetting and placement accuracy, and standard lead-free reflow profiles with peaks up to 260°C for short durations. A symmetric pad layout helps prevent uneven surface tension during reflow, which can cause tombstoning. In high-impedance circuits, place the resistor close to signal nodes to reduce noise pickup and maintain signal integrity.
