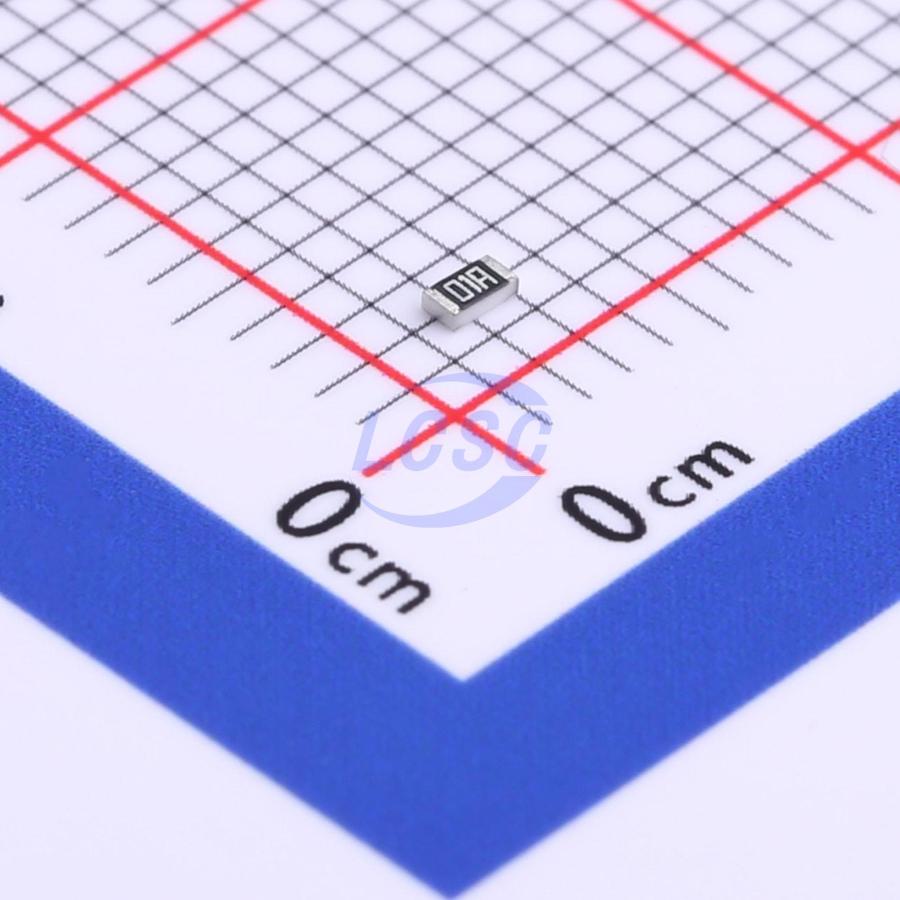

RC0603FR-07100RL
100mW 100Ω 75V Thick Film Resistor ±100ppm/℃ ±1% 0603 Chip Resistor - Surface Mount RoHS
RES 100Ω ±1% 100mW 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- RC0603FR-07100RL
- Store part #
- C105588
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,44,400 in stock
#C105588
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.3175 | ₹31.75 |
| 1,000+ | ₹0.2646 | ₹264.60 |
| 5,000+ | ₹0.2381 | ₹1,190.50 |
| 10,000+ | ₹0.2249 | ₹2,249.00 |
| 50,000+ | ₹0.2117 | ₹10,585.00 |
100 × ₹0.3175
₹31.75
excl. GST
₹37.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RC0603FR-07100RL
₹31.75 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 100Ω
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.036 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RCG0603100RFKEA#C2091185VISHAY · 0603 | VISHAY | 0603 | 60 | ₹3.12 · 60 in stock | View |
 | RMCF0603FT100R#C2479061SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | 1,600 | ₹0.516 · 1,600 in stock | View |
 | RMCF0603FG100R#C2479811SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | 20,000 | ₹0.8864 · 20,000 in stock | View |
 | CRCW0603100RFKEA#C844917VISHAY · 0603 | VISHAY | 0603 | 2,44,200 | ₹0.5821 · 2,44,200 in stock | View |
 | ERJ3EKF1000V#C193336PANASONIC · 0603 | PANASONIC | 0603 | 2,17,300 | ₹0.7012 · 2,17,300 in stock | View |
Questions about RC0603FR-07100RL
What Guidelines Should Be Followed for Soldering and Implementation?
This component features a standard 0603 surface-mount device (SMD) packaging intended for automated PCB placement. It supports an operating temperature range up to +155°C and should be integrated using standard surface-mount assembly and reflow soldering profiles compatible with thick film chip resistors.
What Are the Key Technical Specifications of the YAGEO RC0603FR-07100RL?
This thick film chip resistor is built in a 0603 surface-mount package. Key specifications include a resistance value of 100Ω, a tolerance of ±1%, a power rating of 100mW (1/10W), a maximum voltage rating of 75V, and a temperature coefficient of ±100ppm/°C.
What Are the Common Application Scenarios for This Resistor?
As a standard thick film chip resistor, this component is designed for general-purpose surface-mount circuit applications. It is widely used across various electronic devices requiring a stable 100Ω resistance with a ±1% precision tolerance and a standard 100mW power capacity.
What Are the Best Alternatives If This Specific Part Is Out of Stock?
Since this is a standard 0603-packaged, 100Ω thick film resistor with a ±1% tolerance and 100mW power rating, you can substitute it with any equivalent 0603 chip resistor from alternative manufacturers on LCSC that meet or exceed these identical physical and electrical specifications.
Can This Resistor Be Used in High-Voltage Automotive Applications?
This general-purpose thick film resistor has a maximum voltage rating of 75V and an operating temperature range of -55°C to +155°C. For automotive applications, please verify your circuit does not exceed this voltage limit and check if your design requires a dedicated AEC-Q200 automotive-grade qualification, which is not explicitly stated on this standard part's primary listing.
