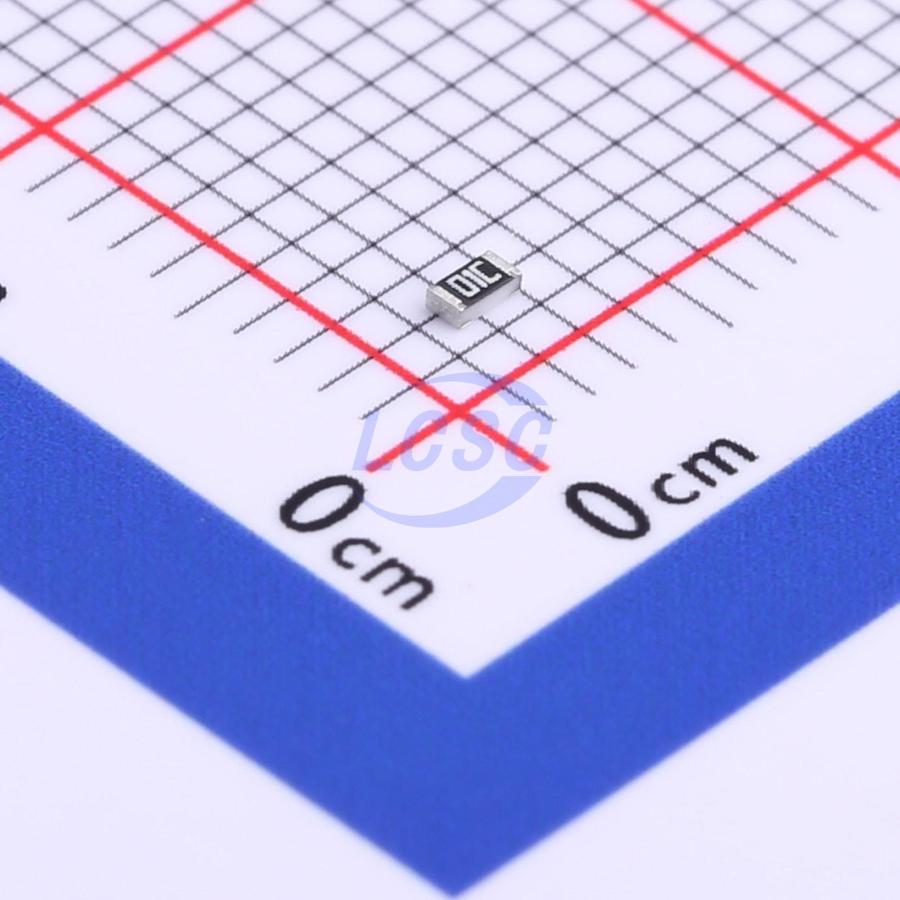

RC0603FR-0710KL
100mW 10kΩ 75V Thick Film Resistor ±100ppm/℃ ±1% 0603 Chip Resistor - Surface Mount RoHS
RES 10kΩ ±1% 100mW 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- RC0603FR-0710KL
- Store part #
- C98220
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
81,50,900 in stock
#C98220
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.374 | ₹37.40 |
| 1,000+ | ₹0.286 | ₹286.00 |
| 5,000+ | ₹0.242 | ₹1,210.00 |
| 10,000+ | ₹0.209 | ₹2,090.00 |
| 50,000+ | ₹0.187 | ₹9,350.00 |
100 × ₹0.374
₹37.40
excl. GST
₹44.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RC0603FR-0710KL
₹37.40 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 10kΩ
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.023 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WR06X1002FTL#C108449Walsin · 0603 | Walsin | 0603 | 7,94,600 | ₹0.506 · 7,94,600 in stock | View |
 | AC0603FR-0710KL#C116677YAGEO · 0603 | YAGEO | 0603 | 32,38,600 | ₹0.561 · 32,38,600 in stock | View |
 | RK73H1JTTD1002F#C130232KOA · 0603 | KOA | 0603 | 17,12,900 | ₹0.649 · 17,12,900 in stock | View |
 | AF0603FR-0710KL#C144081YAGEO · 0603 | YAGEO | 0603 | 1,100 | ₹0.935 · 1,100 in stock | View |
| CRCW060310K0FKEBC#C1511867VISHAY · 0603 | VISHAY | 0603 | 28,550 | ₹2.28 · 28,550 in stock | View | |
Questions about RC0603FR-0710KL
Is This Chip Resistor Compatible With Standard 0603 PCB Reflow Soldering Profiles?
Yes, the YAGEO RC0603FR-0710KL features a standard 0603 surface-mount package, making it fully compatible with standard automated pick-and-place machinery and lead-free reflow soldering processes typical for thick film resistors.
What Can I Use as a Direct Alternative if This Exact Part Is Out of Stock?
If the RC0603FR-0710KL is unavailable, you can substitute it with any 0603-sized thick film chip resistor that shares the same electrical profile: a resistance of 10kΩ, a tolerance of ±1% or tighter (like ±0.5%), and a power rating of at least 100mW (1/10W).
What Are the Common Application Scenarios for This 10kΩ Resistor?
This 10kΩ resistor is highly versatile and frequently used in commercial and consumer electronics. Common applications include pull-up or pull-down resistors for digital I/O lines, voltage dividers, biasing networks for transistors, and signal conditioning circuits.
What Are the Key Technical Specifications Regarding Temperature Operations and Voltage Limits?
The resistor features a power rating of 100mW (1/10W), a maximum operating voltage rating of 75V, and a temperature coefficient of ±100ppm/°C. It is designed to operate reliably across a wide temperature range From -55°C to +155°C.
How Should I Implement This Resistor in a Circuit With High-Voltage Spikes?
When implementing this resistor, ensure that the continuous operating voltage across it does not exceed its rated 75V limit. For circuits subject to high-voltage transients or spikes, you should use transient voltage suppressors (TVS diodes) or choose a specialized surge-resistant resistor to protect the component.
