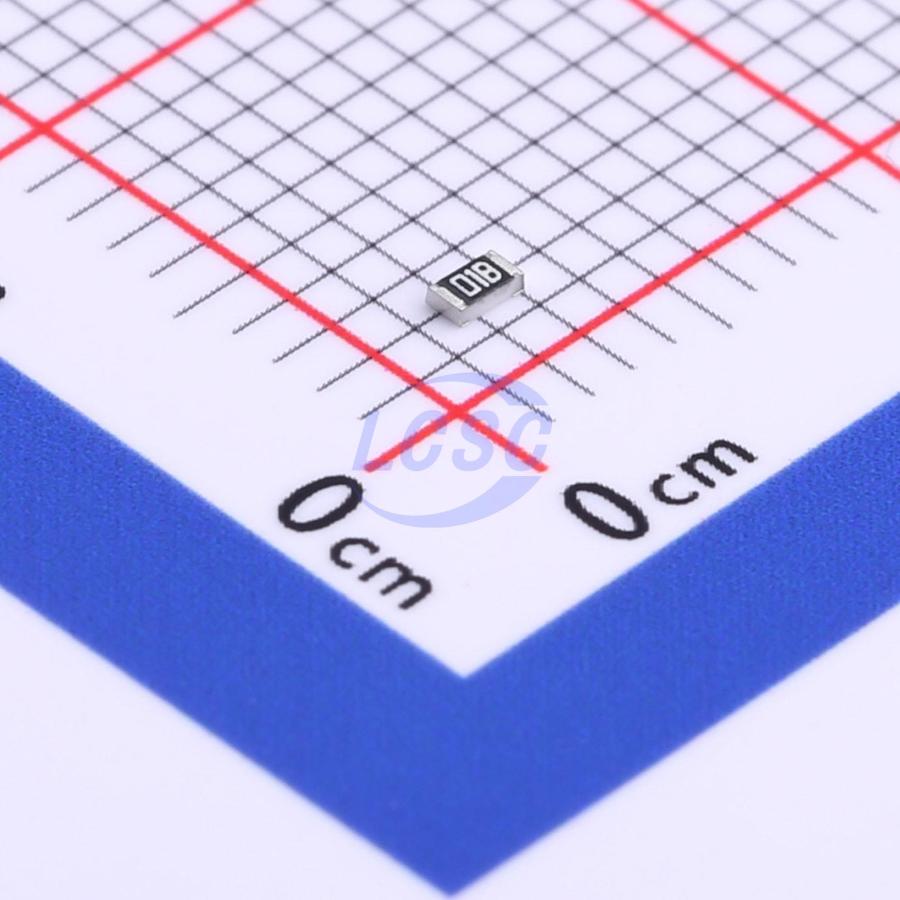

RC0603FR-071KL
100mW 1kΩ 75V Thick Film Resistor ±100ppm/℃ ±1% 0603 Chip Resistor - Surface Mount RoHS
RES 1kΩ ±1% 100mW 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- RC0603FR-071KL
- Store part #
- C22548
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,04,81,000 in stock
#C22548
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.407 | ₹40.70 |
| 1,000+ | ₹0.297 | ₹297.00 |
| 5,000+ | ₹0.253 | ₹1,265.00 |
| 10,000+ | ₹0.220 | ₹2,200.00 |
| 50,000+ | ₹0.187 | ₹9,350.00 |
100 × ₹0.407
₹40.70
excl. GST
₹48.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RC0603FR-071KL
₹40.70 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 1kΩ
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.023 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CRG0603F1K0#C2073687TE Connectivity · 0603 | TE Connectivity | 0603 | 44,300 | ₹1.08 · 44,300 in stock | View |
 | RMCF0603FG1K00#C2484691SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | 4,100 | ₹0.473 · 4,100 in stock | View |
 | RMCF0603FT1K00#C2484712SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | 16,600 | ₹0.451 · 16,600 in stock | View |
 | RCG06031K00FKEA#C4264491VISHAY · 0603 | VISHAY | 0603 | 370 | ₹4.79 · 370 in stock | View |
 | WR06X1001FTL#C112433Walsin · 0603 | Walsin | 0603 | 3,55,200 | ₹0.495 · 3,55,200 in stock | View |
Questions about RC0603FR-071KL
How Much Power Can the AMS1117-3.3 Handle in an SOT-223 Package Without Overheating?
Power dissipation is calculated as . For the SOT-223 package, the thermal resistance () is approximately . If you drop 5V to 3.3V at 500mA, the is 0.85W, raising the junction temperature by . To reach the full 1A output, you must provide adequate PCB copper pours as a heat sink. If the differential voltage is high (e.g., 12V to 3.3V), the current must be significantly derated to prevent thermal shutdown.
What Is the Minimum Input Voltage Required for the AMS1117-3.3 (C22548) to Provide a Stable 3.3V Output?
The AMS1117-3.3 is a Low Dropout (LDO) regulator with a typical dropout voltage of 1.1V to 1.3V at 1A load. To ensure a regulated 3.3V output, the input voltage () must be at least 4.5V to 4.6V (). While it can technically handle up to 15V input, using a 5V supply is ideal for minimizing heat dissipation while maintaining regulation.
What Are the Recommended Capacitors for the AMS1117-3.3 to Prevent Circuit Oscillation?
Stability in the AMS1117-3.3 requires an output capacitor with a specific Equivalent Series Resistance (ESR). It is highly recommended to use at least a 22µF Tantalum or Electrolytic capacitor on the output. While Ceramic capacitors are popular, their ultra-low ESR can sometimes cause LDO oscillation; if using ceramics, adding a small series resistor (0.5Ω) or ensuring a minimum of 10µF is crucial for frequency compensation and transient response.
Can the AMS1117-3.3 Be Used as a Direct Replacement for LM1117, LD1117, or AZ1117?
Yes, the AMS1117-3.3 is a functional and pin-to-pin compatible replacement for most industry-standard 1117 series LDOs in the SOT-223 package, including the TI LM1117-3.3 and STMicroelectronics LD1117S33. The pinout is standard: Pin 1 (Adj/GND), Pin 2 (Vout/Tab), Pin 3 (Vin). Always check the maximum input voltage rating, as some variants support up to 15V while others may differ slightly in transient performance.
Is the AMS1117-3.3 Suitable for Powering ESP32, ESP8266, or STM32 Microcontrollers?
Absolutely. The AMS1117-3.3 is a staple in the maker community for powering ESP32 and STM32 modules because these MCUs require a steady 3.3V supply and can have current spikes up to 400mA-600mA during Wi-Fi/Bluetooth transmission. The 1A rating of the C22548 provides ample headroom. For battery-powered IoT devices, however, consider the 5mA quiescent current, which might be higher than specialized ultra-low-power LDOs.
