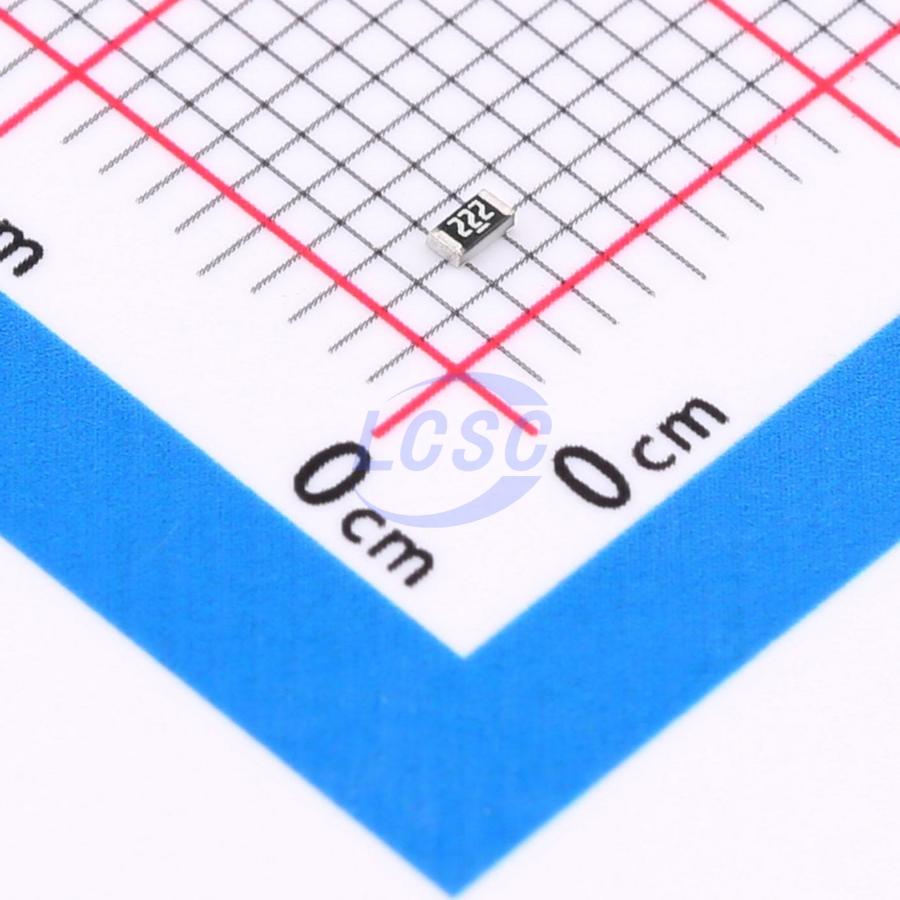

RC0603FR-072K2L

The YAGEO RC0603FR-072K2L is a 2.2 kΩ (2200 Ω) thick film chip resistor with a ±1% resistance tolerance. It is rated for 0.1 W (1/10 W) power dissipation, has a maximum continuous working voltage of 75 V, and can withstand a maximum overload voltage of 150 V. The resistor is manufactured using a thick film process with lead-free terminations.

The RC0603FR-072K2L uses the standard 0603 surface-mount package. Its nominal dimensions are 1.60 ±0.10 mm in length, 0.80 ±0.10 mm in width, and 0.45 ±0.10 mm in height. The terminal overlap dimensions (I1 and I2) are both 0.25 ±0.15 mm.

The RC0603FR-072K2L operates over a temperature range of −55°C to +155°C. For resistance values between 10 Ω and 10 MΩ, including 2.2 kΩ, the specified temperature coefficient of resistance (TCR) is ±100 ppm/°C. The resistor is rated at 70°C, and its allowable power is derated as the ambient temperature increases, reaching 0% at 155°C.

The resistor is constructed on a high-grade ceramic body with internal metal electrodes connected to a thick film resistive element. The resistive element is embedded in glass and covered by a second glass layer to help protect it from environmental influences. A protective epoxy coating is applied, and the external terminations use a nickel barrier with matte tin plating.

The ordering code "07" indicates a 7-inch reel, while the suffix "L" is the default ordering code. For the RC0603 size, the datasheet specifies paper taping reel (R) packaging, with standard quantities of 5,000 pieces on a 7-inch reel, 10,000 pieces on a 10-inch reel, or 20,000 pieces on a 13-inch reel. The RC_L series is RoHS compliant, Halogen Free, has lead-free terminations, and is rated MSL 1.
