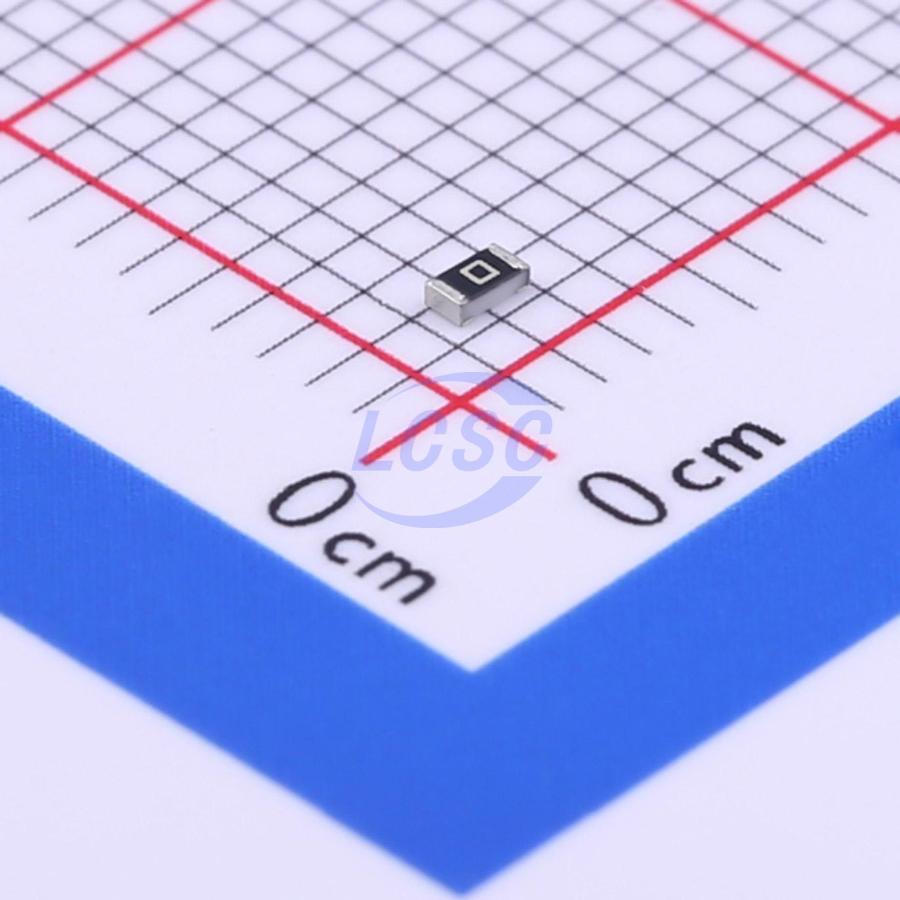

RC0603JR-070RL
100mW 0Ω 75V Thick Film Resistor ±5% 0603 Chip Resistor - Surface Mount RoHS
RES 0Ω ±5% 100mW 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- RC0603JR-070RL
- Store part #
- C95177
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,73,500 in stock
#C95177
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.3175 | ₹31.75 |
| 1,000+ | ₹0.2646 | ₹264.60 |
| 5,000+ | ₹0.2249 | ₹1,124.50 |
| 10,000+ | ₹0.2117 | ₹2,117.00 |
| 50,000+ | ₹0.1985 | ₹9,925.00 |
100 × ₹0.3175
₹31.75
excl. GST
₹37.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RC0603JR-070RL
₹31.75 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 0Ω
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.036 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AC0603JR-070RL#C141796YAGEO · 0603 | YAGEO | 0603 | 31,200 | ₹0.6483 · 31,200 in stock | View |
 | AF0603JR-070RL#C144114YAGEO · 0603 | YAGEO | 0603 | 41,600 | ₹1.20 · 41,600 in stock | View |
 | RC0603JR-130RL#C1512169YAGEO · 0603 | YAGEO | 0603 | 23,400 | ₹0.3175 · 23,400 in stock | View |
 | 0603WAJ0000T5E#C15402UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 17,37,400 | ₹0.1985 · 17,37,400 in stock | View |
 | QR0603J0R00P05Z#C176152EVER OHMS · 0603 | EVER OHMS | 0603 | 3,900 | ₹0.516 · 3,900 in stock | View |
Questions about RC0603JR-070RL
What are the primary electrical specifications and physical characteristics of the YAGEO RC0603JR-070RL resistor?
The YAGEO RC0603JR-070RL is a 0Ω chip resistor (jumper) manufactured using a thick-film process. It is supplied in a standard 0603 surface-mount package with nominal dimensions of 1.60 mm × 0.80 mm × 0.45 mm. The device has a rated power of 0.1 W (1/10 W) at 70°C and an operating temperature range of -55°C to +155°C. For jumper applications, the RC0603 series specifies a maximum resistance of less than 50 mΩ, a rated current of 1.0 A, and a maximum current of 2.0 A.
What is the purpose of a 0Ω resistor such as the RC0603JR-070RL?
The RC0603JR-070RL is a 0Ω jumper resistor within the YAGEO RC_L Series. According to the datasheet, jumper devices use a conductor in place of the resistive element and are specified with a maximum resistance below 50 mΩ. The component shares the same standard 0603 surface-mount package as other RC_L Series resistors, allowing it to be assembled using standard SMT manufacturing processes.
How do temperature and power limits affect the RC0603JR-070RL?
The RC0603JR-070RL is rated for operation from -55°C to +155°C with a power rating of 0.1 W (1/10 W) at 70°C. The resistor is constructed on a high-grade ceramic substrate using a thick-film process, protected by an epoxy coating with Ni/matte tin terminations. The datasheet also specifies qualification testing, including endurance, high-temperature exposure, humidity, thermal shock, board flex, and solderability, with acceptance criteria defined for jumper devices.
What PCB layout and soldering information is provided for the RC0603JR-070RL?
The RC0603JR-070RL is a standard 0603 surface-mount chip resistor. For PCB footprint recommendations and soldering profiles, the datasheet directs users to the separate "Chip Resistors Mounting" document. The component features Ni/matte tin terminations and is supplied for standard SMT assembly processes.
What distinguishes the RC0603JR-070RL from a standard chip resistor?
The RC0603JR-070RL is specified as a 0Ω jumper resistor. Unlike standard resistance values in the RC_L Series, the jumper version uses a conductor and is specified with a maximum resistance below 50 mΩ. It is manufactured in the same 0603 package and follows the same electrical and mechanical specifications applicable to the RC0603 jumper devices described in the datasheet.
