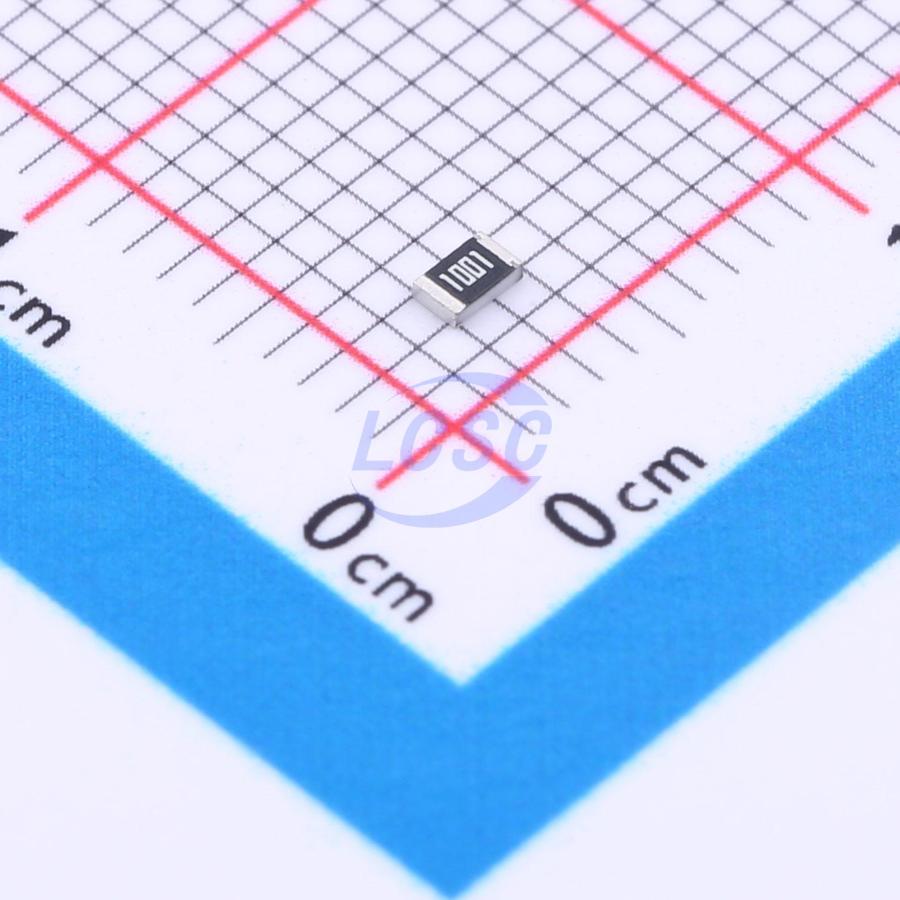

RC0805FR-071KL
1kΩ 125mW 150V Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
RES 1kΩ ±1% 125mW 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- RC0805FR-071KL
- Store part #
- C95781
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30,89,700 in stock
#C95781
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.4895 | ₹48.95 |
| 1,000+ | ₹0.3969 | ₹396.90 |
| 5,000+ | ₹0.3308 | ₹1,654.00 |
| 10,000+ | ₹0.3043 | ₹3,043.00 |
| 50,000+ | ₹0.2778 | ₹13,890.00 |
100 × ₹0.4895
₹48.95
excl. GST
₹57.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RC0805FR-071KL
₹48.95 for 100 + GST
Specifications
- Resistance
- 1kΩ
- Power(Watts)
- 125mW
- Voltage Rating
- 150V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.032 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CRG0805F1K0#C2073872TE Connectivity · 0805 | TE Connectivity | 0805 | 4,750 | ₹2.49 · 4,750 in stock | View | |
 | RMCF0805FT1K00#C6654733SEI(Stackpole Electronics Inc.) · 0805 | SEI(Stackpole Electronics Inc.) | 0805 | 1,300 | ₹0.860 · 1,300 in stock | View |
 | CRCW08051K00FKEA#C844939VISHAY · 0805 | VISHAY | 0805 | 27,000 | ₹1.08 · 27,000 in stock | View |
 | RC0805DR-071KL#C100051YAGEO · 0805 | YAGEO | 0805 | On request | ₹1.15 · 0 in stock | View |
 | CR0805F81001G#C101404LIZ · 0805 | LIZ | 0805 | 2,400 | ₹1.28 · 2,400 in stock | View |
Questions about RC0805FR-071KL
Can This 0805 Resistor Be Used on Boards Designed for 0603 or 1206 Components?
No, it is not recommended. The YAGEO RC0805FR-071KL comes in a standard 0805 surface-mount package. Attempting to fit it onto smaller 0603 pads may cause solder bridging or manufacturing issues, while placing it on larger 1206 pads can lead to poor joints or "tombstoning."
What Should I Consider when Looking for Alternatives From Other Manufacturers?
When finding a replacement, ensure the alternative part is a thick film chip resistor with an 0805 packaging size, a 1kΩ resistance value, a power rating of at least 125mW, and a tolerance of ±1% or better. You can use the "Show similar products" feature on LCSC to find direct matches.
What Types of Circuit Application Scenarios Is This Resistor Best Suited For?
Due to its standard 1kΩ resistance and stable ±100ppm/℃ temperature coefficient, this resistor is ideal for general-purpose electronics, including pull-up/pull-down networks, current limiting for small LEDs, signal conditioning, and voltage dividers in consumer or industrial circuits.
What Are the Maximum Voltage and Power Ratings for This Product?
The YAGEO RC0805FR-071KL features a maximum power rating of 125mW (1/8W) and a maximum operating voltage rating of 150V. It operates reliably across a wide temperature range from -55℃ to +155℃.
How Should This Resistor Be Handled and Processed During PCB Assembly?
As a standard surface-mount device (SMD), it is compatible with automated pick-and-place machinery and standard reflow or wave soldering profiles. For low-volume prototyping or repairs, it can also be easily hand-soldered using a fine-tip soldering iron and standard SMD tweezers.
