YAGEODatasheet (PDF)

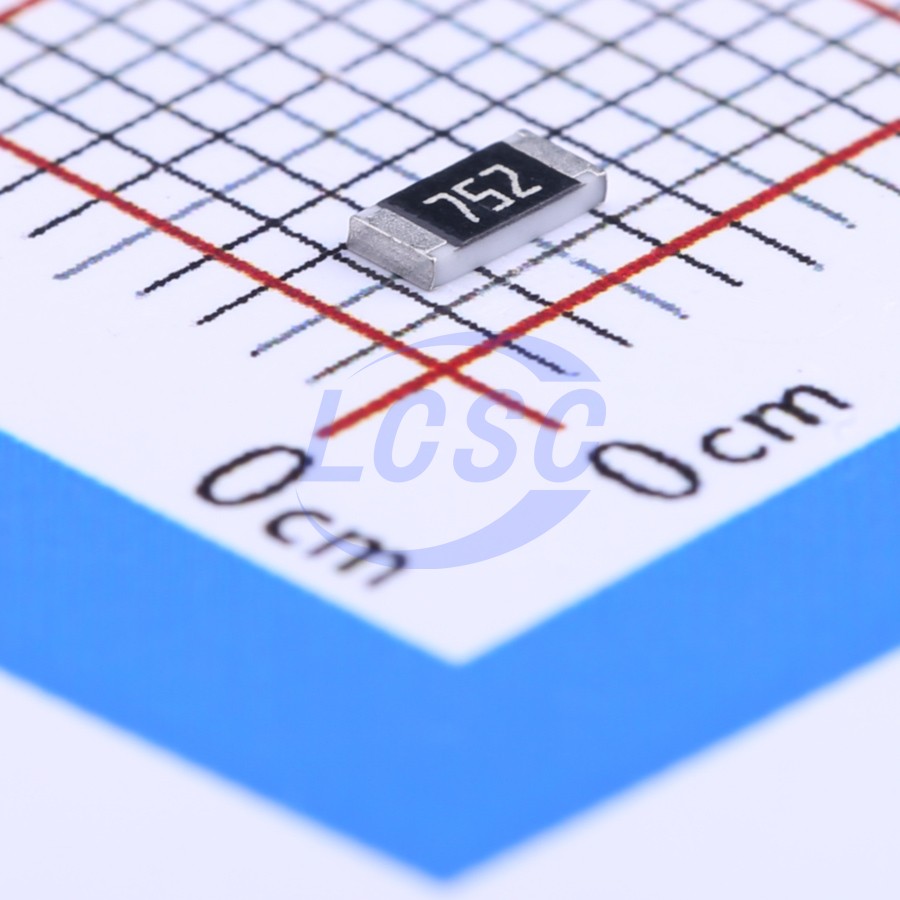

RC1206JR-077K5L
7.5kΩ 250mW 200V Thick Film Resistor ±100ppm/℃ ±5% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 7.5kΩ ±5% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- RC1206JR-077K5L
- Store part #
- C137115
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,300 in stock
#C137115
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹1.19 | ₹119.00 |
| 1,000+ | ₹0.9658 | ₹965.80 |
| 5,000+ | ₹0.807 | ₹4,035.00 |
| 10,000+ | ₹0.7409 | ₹7,409.00 |
| 50,000+ | ₹0.6747 | ₹33,735.00 |
| 1,00,000+ | ₹0.635 | ₹63,500.00 |
100 × ₹1.19
₹119.00
excl. GST
₹140.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RC1206JR-077K5L
₹119.00 for 100 + GST
Specifications
- Resistance
- 7.5kΩ
- Power(Watts)
- 250mW
- Voltage Rating
- 200V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±5%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.03 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS-06K752JT#C1487FH · 1206 | FH | 1206 | 3,800 | ₹0.6615 · 3,800 in stock | View |
 | 1206W4J0752T5E#C26047UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 6,700 | ₹0.4895 · 6,700 in stock | View |
 | FRC1206J752 TS#C2907531FOJAN · 1206 | FOJAN | 1206 | 1,64,000 | ₹0.7806 · 1,64,000 in stock | View |
 | GR1206J7K5T5G00#C49654116GiantOhm · 1206 | GiantOhm | 1206 | 4,800 | ₹0.4763 · 4,800 in stock | View |
 | 1RC1206J0752#C54532638SAE · 1206 | SAE | 1206 | 6,800 | ₹0.6615 · 6,800 in stock | View |
