TECH PUBLICDatasheet (PDF)

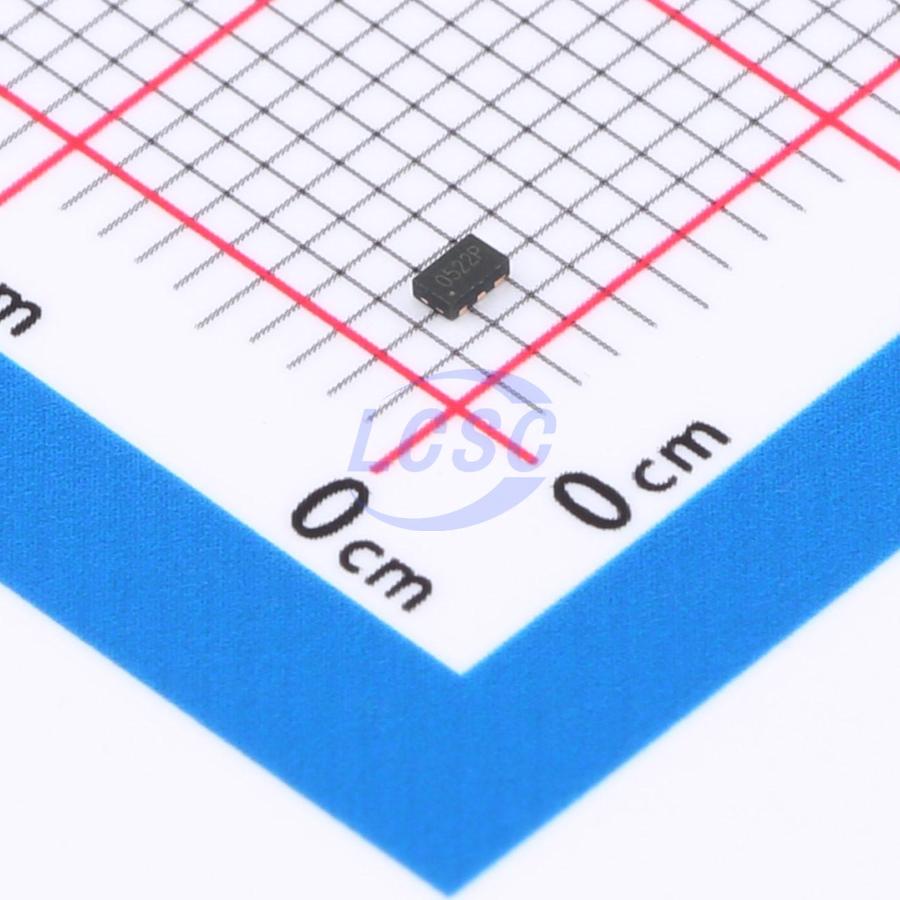

RCLAMP0522P
13VC Clamp 5A@8/20us Ipp DFN1610-6
DFN1610-6RoHSActive
5VWM 13VC DFN1610-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RCLAMP0522P
- Store part #
- C2937020
- Package / case
- DFN1610-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C2937020
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.58 | ₹95.80 |
| 100+ | ₹7.74 | ₹774.00 |
| 300+ | ₹6.83 | ₹2,049.00 |
| 3,000+ | ₹5.52 | ₹16,560.00 |
| 6,000+ | ₹4.97 | ₹29,820.00 |
| 9,000+ | ₹4.70 | ₹42,300.00 |
10 × ₹9.58
₹95.80
excl. GST
₹113.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RCLAMP0522P
₹95.80 for 10 + GST
Specifications
- Clamping Voltage
- 13V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Ultra small package: 1.6x1.0x0.5mm
- Ultra low capacitance: 0.3 pF typical (io to io)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 5A (8/20 μs)
- These are Pb-Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRCLAMP3382P#C19829428TECH PUBLIC · DFN1610-6L | TECH PUBLIC | DFN1610-6L | 5,760 | ₹9.12 · 5,760 in stock | View |
 | TPAOZ8802ADI#C2875149TECH PUBLIC · DFN1610-6 | TECH PUBLIC | DFN1610-6 | 1,655 | ₹13.16 · 1,655 in stock | View |
 | RCLAMP0522P-TP#C2830313TECH PUBLIC · UDFN-6(1x1.6) | TECH PUBLIC | UDFN-6(1x1.6) | 5,900 | ₹9.79 · 5,900 in stock | View |
