TECH PUBLICDatasheet (PDF)

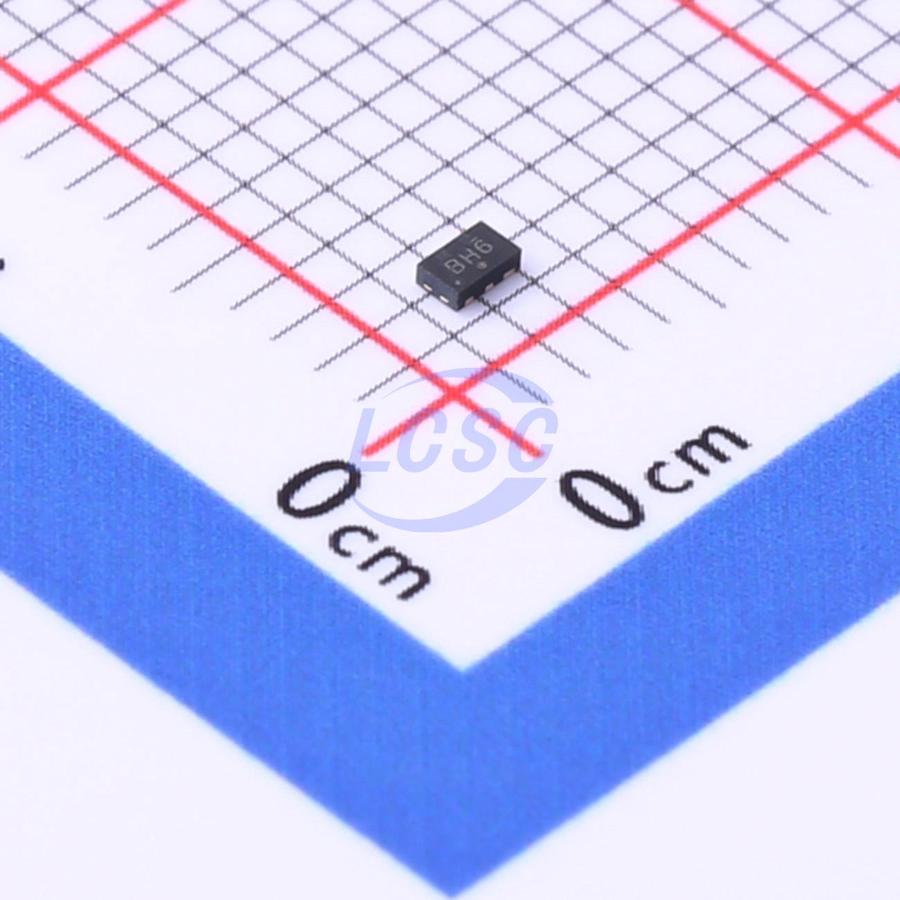

TPAOZ8802ADI
13VC Clamp 5A@8/20us Ipp ESD DIODE DFN1610-6
DFN1610-6RoHSActive
ESD DIODE 5VWM 13VC DFN1610-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAOZ8802ADI
- Store part #
- C2875149
- Package / case
- DFN1610-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,655 in stock
#C2875149
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.16 | ₹65.80 |
| 50+ | ₹10.53 | ₹526.50 |
| 150+ | ₹9.21 | ₹1,381.50 |
| 500+ | ₹8.22 | ₹4,110.00 |
| 3,000+ | ₹6.55 | ₹19,650.00 |
| 6,000+ | ₹6.15 | ₹36,900.00 |
5 × ₹13.16
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAOZ8802ADI
₹65.80 for 5 + GST
Specifications
- Clamping Voltage
- 13V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 70nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Ultra small package: 1.6x1.0x0.5mm
- Ultra low capacitance: 0.3 pF typical (io to io)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 5A (8/20 μs)
- These are Pb-Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRCLAMP3382P#C19829428TECH PUBLIC · DFN1610-6L | TECH PUBLIC | DFN1610-6L | 5,760 | ₹9.12 · 5,760 in stock | View |
 | RCLAMP0522P#C2937020TECH PUBLIC · DFN1610-6 | TECH PUBLIC | DFN1610-6 | 1,340 | ₹9.58 · 1,340 in stock | View |
 | RCLAMP0522P-TP#C2830313TECH PUBLIC · UDFN-6(1x1.6) | TECH PUBLIC | UDFN-6(1x1.6) | 5,900 | ₹9.79 · 5,900 in stock | View |
