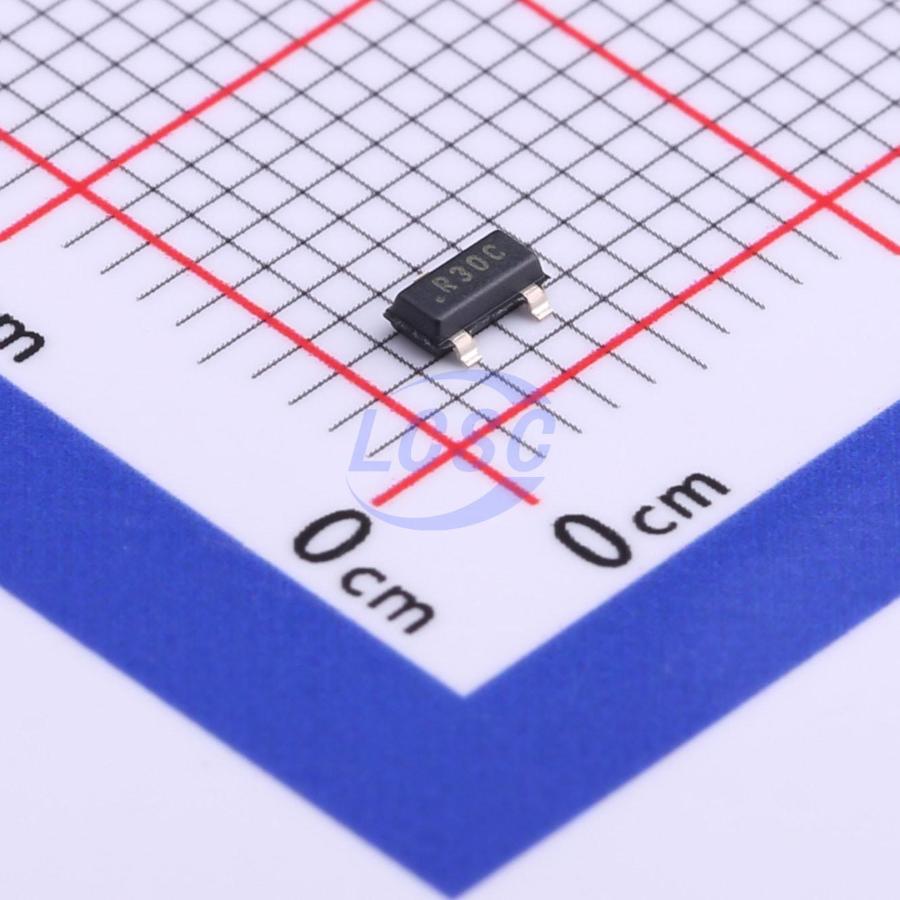

REF3025AIDBZR
2.5V ±0.2% 2.55V~5.5V 25mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
CMOS Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3025AIDBZR
- Store part #
- C11334
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,790 in stock
#C11334
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.48 | ₹71.48 |
| 10+ | ₹60.18 | ₹601.80 |
| 30+ | ₹51.93 | ₹1,557.90 |
| 100+ | ₹45.42 | ₹4,542.00 |
| 500+ | ₹43.24 | ₹21,620.00 |
| 1,000+ | ₹41.94 | ₹41,940.00 |
1 × ₹71.48
₹71.48
excl. GST
₹84.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3025AIDBZR
₹71.48 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Quiescent Current
- 50uA
- Tolerance
- ±0.2%
- Voltage - Supply
- 2.55V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 28uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 80uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The REF30xx is a precision, low power, low voltage dropout voltage reference family available in a tiny SOT23-3. The REF30xx small size and low power consumption (50µA max) make it ideal for portable and battery-powered applications. The REF30xx does not require a load capacitor. Unloaded, the REF30xx can be operated with supplies within 1mV of output voltage. All models are specified for the wide temperature range, -40°C to +125°C.
Applications
- PORTABLE, BATTERY-POWERED EQUIPMENT
- DATA ACQUISITION SYSTEMS
- MEDICAL EQUIPMENT
- HAND-HELD TEST EQUIPMENT
Key features
- MicroSIZE PACKAGE: SOT23-3
- LOW DROPOUT: 1mV
- HIGH OUTPUT CURRENT: 25mA
- HIGH ACCURACY: 0.2%
- LOW l₀: 50µA max
- EXCELLENT SPECIFIED DRIFT PERFORMANCE: 50ppm/°C (max) from 0°C to +70°C; 75ppm/°C (max) from -40°C to ±125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3025AIDBZT#C96625TI · SOT-23 | TI | SOT-23 | 2,629 | ₹92.56 · 2,629 in stock | View |
 | GM7200AUJZ-2.5-R7#C55595895GONGMOSEMI · SOT-23 | GONGMOSEMI | SOT-23 | 200 | ₹84.13 · 200 in stock | View |
 | ISL21010CFH325Z-T7A#C2157608RENESAS · SOT-23-3 | RENESAS | SOT-23-3 | 3 | ₹315.14 · 3 in stock | View |
 | REF3125AQDBZRQ1#C122478TI · SOT-23 | TI | SOT-23 | 94 | ₹525.22 · 94 in stock | View |
 | REF3125AIDBZT#C2156515TI · SOT-23 | TI | SOT-23 | 648 | ₹235.03 · 648 in stock | View |
