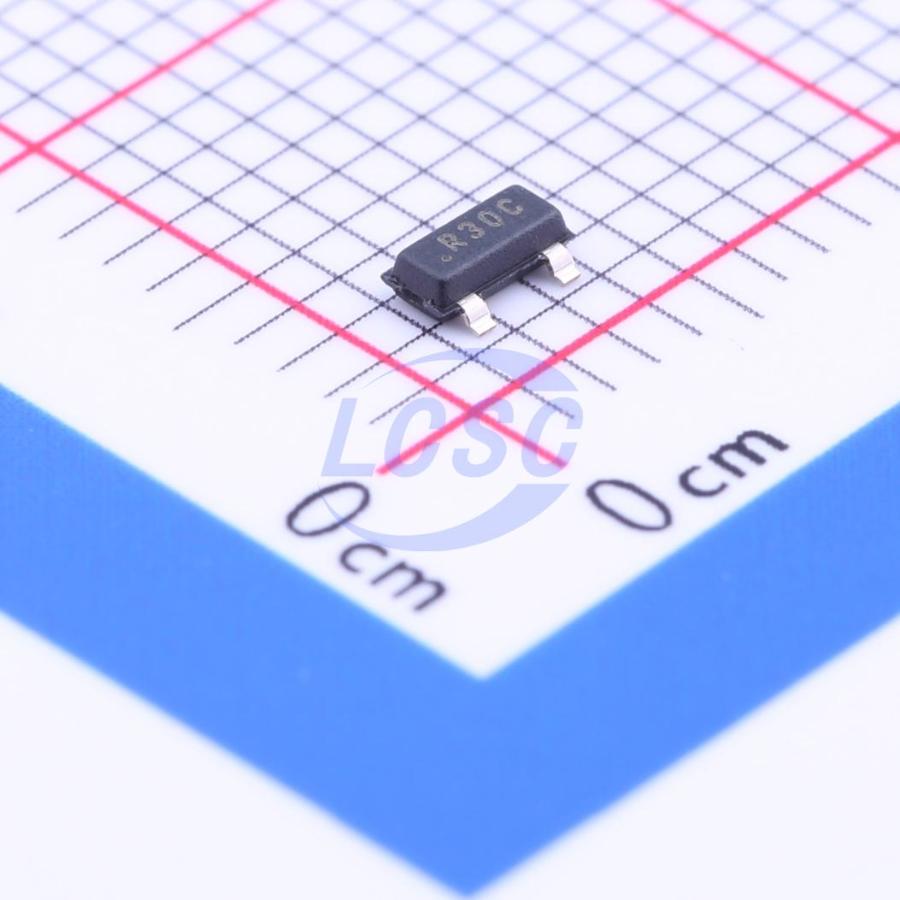

REF3025AIDBZT
2.5V ±0.2% 2.55V~5.5V 25mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
CMOS Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3025AIDBZT
- Store part #
- C96625
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,629 in stock
#C96625
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.56 | ₹92.56 |
| 10+ | ₹76.26 | ₹762.60 |
| 30+ | ₹68.00 | ₹2,040.00 |
| 250+ | ₹56.06 | ₹14,015.00 |
| 500+ | ₹51.28 | ₹25,640.00 |
| 1,000+ | ₹48.67 | ₹48,670.00 |
1 × ₹92.56
₹92.56
excl. GST
₹109.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 250 per reel
REF3025AIDBZT
₹92.56 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Quiescent Current
- 42uA
- Tolerance
- ±0.2%
- Voltage - Supply
- 2.55V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 28uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 80uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The REF30xx is a precision, low-power, low-dropout voltage, reference family available in a tiny 3-pin SOT-23 package. The REF30xx offers excellent temperature drift and initial accuracy while operating at a quiescent current of 42 μA (typical). The low power consumption and the relatively high precision make the REF30xx very attractive for loop-powered industrial applications such as pressure and temperature transmitter applications. The REF30xx is easy to use in intrinsically safe and explosion-proof applications because it does not require a load capacitor to be stable. The REF30xx is specified over the extended industrial temperature range of -40°C to +125°C. The REF30xx operates with supplies within 1 mV of output voltage under zero-load conditions. Engineers can use the low dropout, small size, and low power consumption of the REF30xx in portable and battery-powered applications.
Applications
- Temperature and Pressure Transmitters
- Portable, Battery-Powered Equipment
- Data Acquisition Systems
- Medical Equipment
- Handheld Test Equipment
Key features
- microSize Package: SOT-23-3
- Low Dropout: 1 mV
- High Output Current: 25 mA
- High Accuracy: 0.2%
- Low IQ: 42 μA (Typical)
- Excellent Specified Drift Performance:
- 50 ppm/°C (Maximum) From 0°C to 70°C
- 75 ppm/°C (Maximum) From -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3025AIDBZR#C11334TI · SOT-23 | TI | SOT-23 | 24,790 | ₹71.48 · 24,790 in stock | View |
 | ISL21010CFH325Z-T7A#C2157608RENESAS · SOT-23-3 | RENESAS | SOT-23-3 | 3 | ₹315.14 · 3 in stock | View |
 | REF3125AQDBZRQ1#C122478TI · SOT-23 | TI | SOT-23 | 94 | ₹525.22 · 94 in stock | View |
 | REF3125AIDBZT#C2156515TI · SOT-23 | TI | SOT-23 | 648 | ₹235.03 · 648 in stock | View |
 | REF3125AIDBZR#C33297TI · SOT-23 | TI | SOT-23 | 23,756 | ₹133.79 · 23,756 in stock | View |
