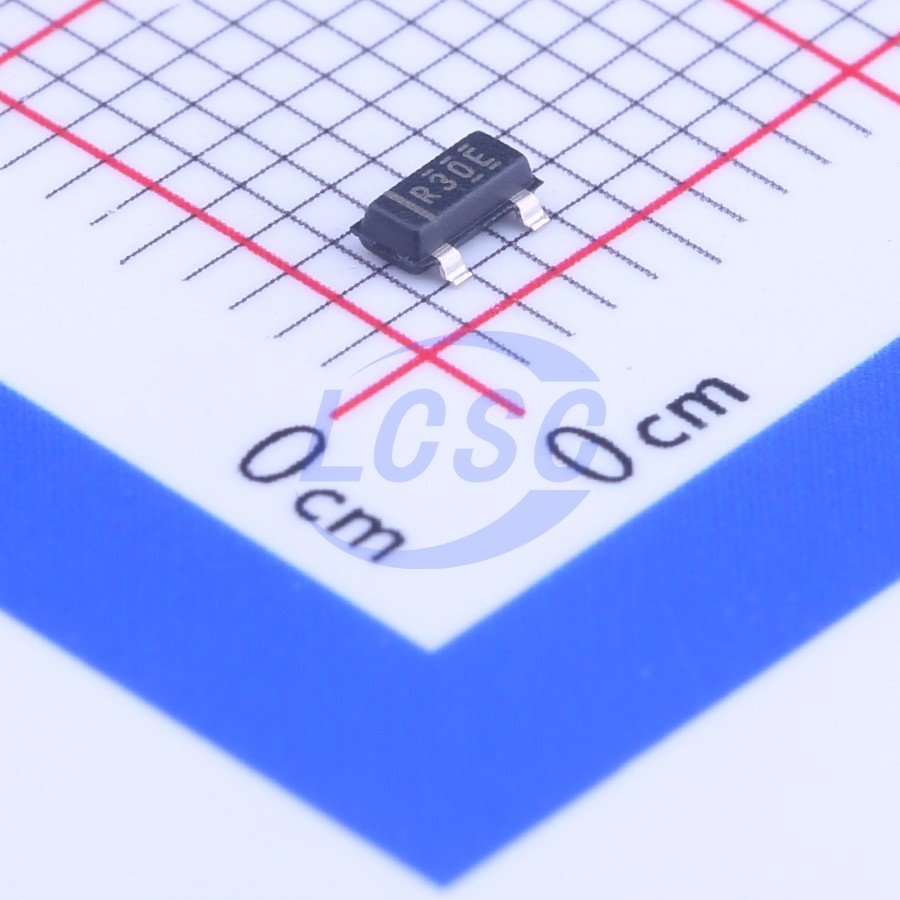

REF3040AIDBZR
Series Voltage Reference IC Fixed 4.096V ±0.2% 25mA SOT-23
SOT-23ROHS3 CompliantActive
CMOS Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3040AIDBZR
- Store part #
- C19415
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,728 in stock
#C19415
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.98 | ₹125.98 |
| 10+ | ₹105.59 | ₹1,055.90 |
| 30+ | ₹91.06 | ₹2,731.80 |
| 100+ | ₹79.37 | ₹7,937.00 |
| 500+ | ₹75.46 | ₹37,730.00 |
| 1,000+ | ₹73.29 | ₹73,290.00 |
1 × ₹125.98
₹125.98
excl. GST
₹148.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3040AIDBZR
₹125.98 for 1 + GST
Specifications
- Output Voltage
- 4.096V
- Quiescent Current
- 42uA
- Tolerance
- ±0.2%
- Voltage - Supply
- 4.097V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 45uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 128uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The REF30xx is a precision, low power, low voltage dropout voltage reference family available in a tiny SOT23-3. The REF30xx small size and low power consumption (50µA max) make it ideal for portable and battery-powered applications. The REF30xx does not require a load capacitor. Unloaded, the REF30xx can be operated with supplies within 1mV of output voltage. All models are specified for the wide temperature range, -40°C to +125°C.
Applications
- PORTABLE, BATTERY-POWERED EQUIPMENT
- DATA ACQUISITION SYSTEMS
- MEDICAL EQUIPMENT
- HAND-HELD TEST EQUIPMENT
Key features
- MicroSIZE PACKAGE: SOT23-3
- LOW DROPOUT: 1mV
- HIGH OUTPUT CURRENT: 25mA
- HIGH ACCURACY: 0.2%
- LOW l₀: 50µA max
- EXCELLENT SPECIFIED DRIFT PERFORMANCE: 50ppm/°C (max) from 0°C to +70°C; 75ppm/°C (max) from -40°C to ±125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3040AIDBZT#C2156519TI · SOT-23 | TI | SOT-23 | 911 | ₹173.25 · 911 in stock | View |
 | REF3140AIDBZT#C132034TI · SOT-23 | TI | SOT-23 | 47 | ₹413.04 · 47 in stock | View |
 | REF3140AIDBZR#C783607TI · SOT-23-3 | TI | SOT-23-3 | 3,175 | ₹240.88 · 3,175 in stock | View |
 | REF340SOT233#C19078491analogysemi · SOT-23-3 | analogysemi | SOT-23-3 | 7 | ₹128.30 · 7 in stock | View |
 | RS3112-4.096XSF3#C19269198RUNIC · SOT-23 | RUNIC | SOT-23 | 2,795 | ₹101.22 · 2,795 in stock | View |
