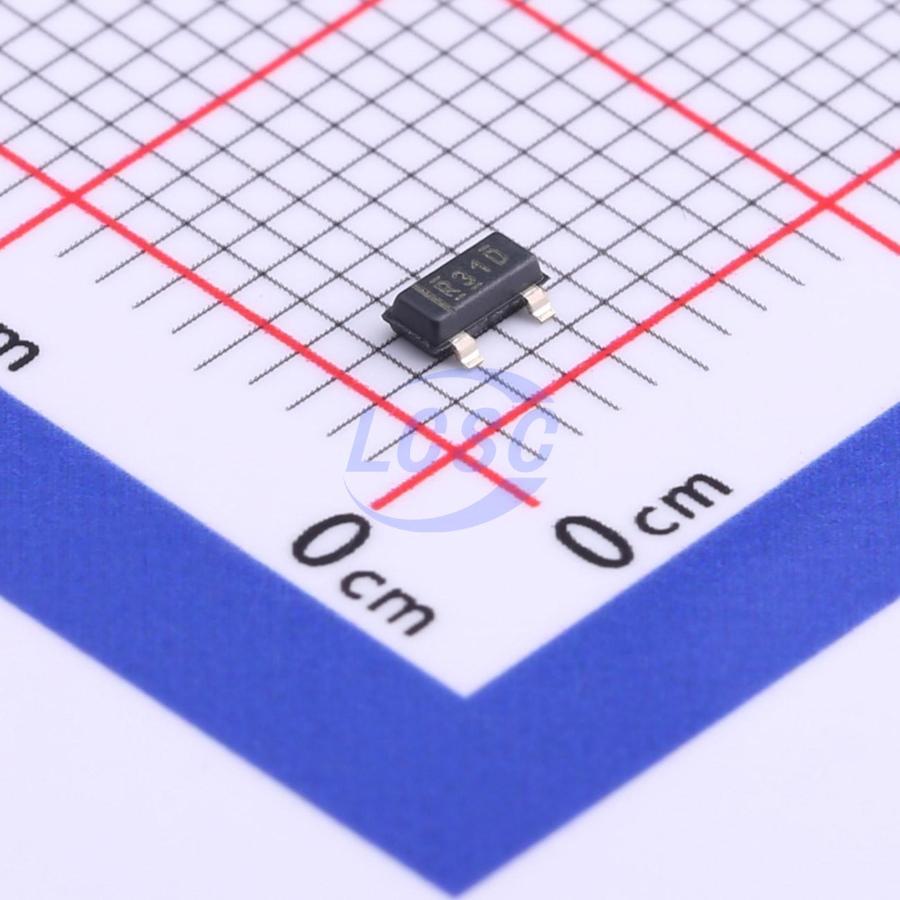

REF3140AIDBZR
4.096V ±0.2% 4.146V~5.5V 10mA Fixed SOT-23-3 Voltage Reference RoHS
SOT-23-3ROHS3 CompliantActive
Series Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3140AIDBZR
- Store part #
- C783607
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,175 in stock
#C783607
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹240.88 | ₹240.88 |
| 10+ | ₹201.72 | ₹2,017.20 |
| 30+ | ₹180.17 | ₹5,405.10 |
| 100+ | ₹144.71 | ₹14,471.00 |
| 500+ | ₹133.82 | ₹66,910.00 |
| 1,000+ | ₹129.03 | ₹1,29,030.00 |
1 × ₹240.88
₹240.88
excl. GST
₹284.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3140AIDBZR
₹240.88 for 1 + GST
Specifications
- Output Voltage
- 4.096V
- Quiescent Current
- 135uA
- Tolerance
- ±0.2%
- Voltage - Supply
- 4.146V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 53uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 78uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
The REF31xx is a family of precision, low power, low dropout, series voltage references available in the tiny 3-pin SOT-23 package. The REF31xx's small size and low power consumption (100 µA typical) make it ideal for portable and battery-powered applications. The REF31xx does not require a load capacitor, but is stable with any capacitive load and can sink or source up to 10 mA of output current. Unloaded, the REF31xx can operate on supplies down to 5 mV above the output voltage. All models are specified for the wide temperature range of -40°C to +125°C.
Applications
- Portable, Battery-Powered Equipment
- Data Acquisition Systems
- Medical Equipment
- Hand-Held Test Equipment
Key features
- MicroSize Package: SOT23-3
- Low Dropout: 5 mV
- High Output Current: ±10 mA
- High Accuracy: 0.2% Maximum
- Low IQ: 115 µA Maximum
- Excellent Specified Drift Performance: 15 ppm/°C (Maximum) from 0°C to +70°C, 20 ppm/°C (Maximum) from -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3140AIDBZT#C132034TI · SOT-23 | TI | SOT-23 | 47 | ₹413.04 · 47 in stock | View |
 | REF3040AIDBZR#C19415TI · SOT-23 | TI | SOT-23 | 11,728 | ₹125.98 · 11,728 in stock | View |
 | REF3040AIDBZT#C2156519TI · SOT-23 | TI | SOT-23 | 911 | ₹173.25 · 911 in stock | View |
 | REF340SOT233#C19078491analogysemi · SOT-23-3 | analogysemi | SOT-23-3 | 7 | ₹128.30 · 7 in stock | View |
 | RS3112-4.096XSF3#C19269198RUNIC · SOT-23 | RUNIC | SOT-23 | 2,795 | ₹101.22 · 2,795 in stock | View |
