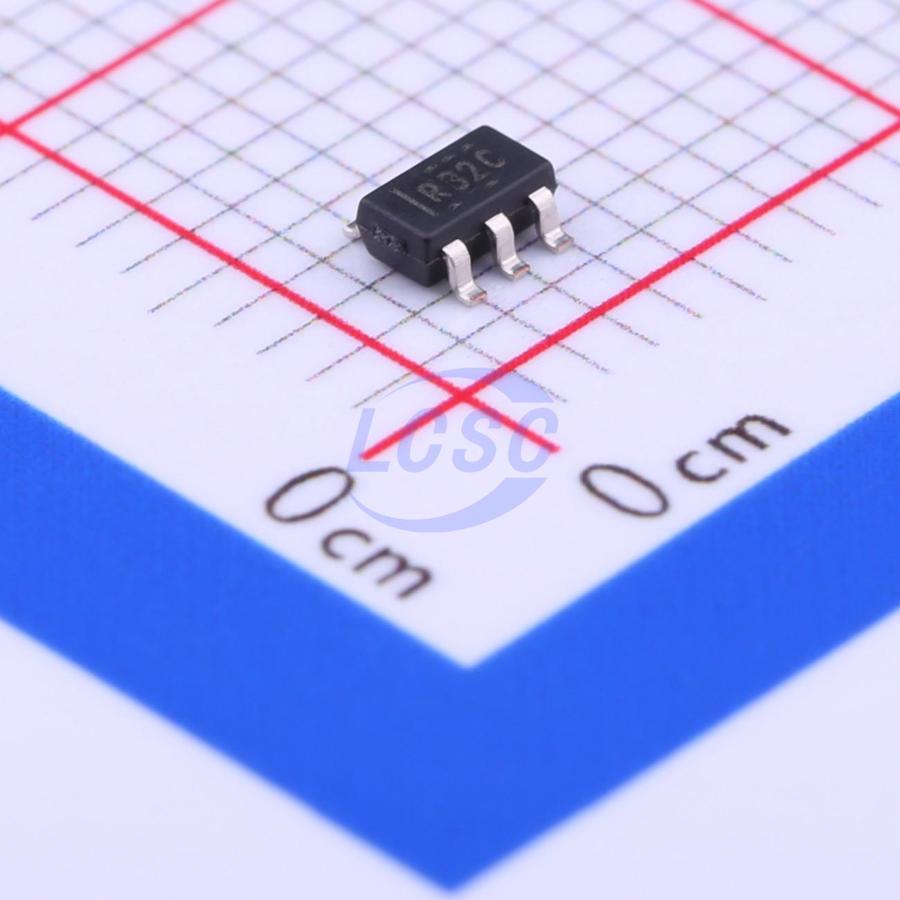

REF3225AIDBVR
2.5V ±0.2% 2.55V~5.5V 10mA Fixed SOT-23-6 Voltage Reference RoHS
SOT-23-6ROHS3 CompliantActive
Low Drift, Micropower, Low-Dropout Precision Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3225AIDBVR
- Store part #
- C40852
- Package / case
- SOT-23-6
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,267 in stock
#C40852
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹446.59 | ₹446.59 |
| 10+ | ₹424.14 | ₹4,241.40 |
| 30+ | ₹410.75 | ₹12,322.50 |
| 100+ | ₹397.14 | ₹39,714.00 |
| 500+ | ₹390.88 | ₹1,95,440.00 |
| 1,000+ | ₹388.08 | ₹3,88,080.00 |
1 × ₹446.59
₹446.59
excl. GST
₹526.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3225AIDBVR
₹446.59 for 1 + GST
Specifications
- Quiescent Current
- 135uA
- Output Voltage
- 2.5V
- Tolerance
- ±0.2%
- Voltage - Supply
- 2.55V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 33uVp-p
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/disable
- Noise - 10Hz to 10kHz
- 43uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.9 g
Overview
The REF32xx is a very low drift, micropower, low-dropout, precision voltage reference family available in the tiny SOT23-6 package. The small size and low power consumption (120μA max) of the REF32xx make it ideal for portable and battery-powered applications. This reference is stable with any capacitive load. The REF32xx can be operated from a supply as low as 5mV above the output voltage, under no load conditions. All models are specified for the wide temperature range of -40°C to +125°C.
Applications
- Portable Equipment
- Data Acquisition Systems
- Medical Equipment
- Test Equipment
Key features
- Excellent Specified Drift Performance: 7ppm/°C (max) at 0°C to ±125°C
- 20ppm/°C (max) at -40°C to ±125°C
- Microsize Package: SOT23-6
- High Output Current: ±10mA
- High Accuracy: 0.01%
- Low Quiescent Current: 100μA
- Low Dropout: 5mV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3225AIDBVT#C54784TI · SOT-23-6 | TI | SOT-23-6 | 115 | ₹488.94 · 115 in stock | View |
 | REF3425IDBVR#C187836TI · SOT-23-6 | TI | SOT-23-6 | 9,836 | ₹142.26 · 9,836 in stock | View |
 | ADR3425ARJZ-R2#C579287ADI · SOT-23-6 | ADI | SOT-23-6 | 83 | ₹365.33 · 83 in stock | View |
 | ADR3425ARJZ-R7#C60864ADI · SOT-23-6 | ADI | SOT-23-6 | 2,844 | ₹335.34 · 2,844 in stock | View |
 | MCP1502T-25E/CHY#C3680051MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 29 | ₹385.50 · 29 in stock | View |
