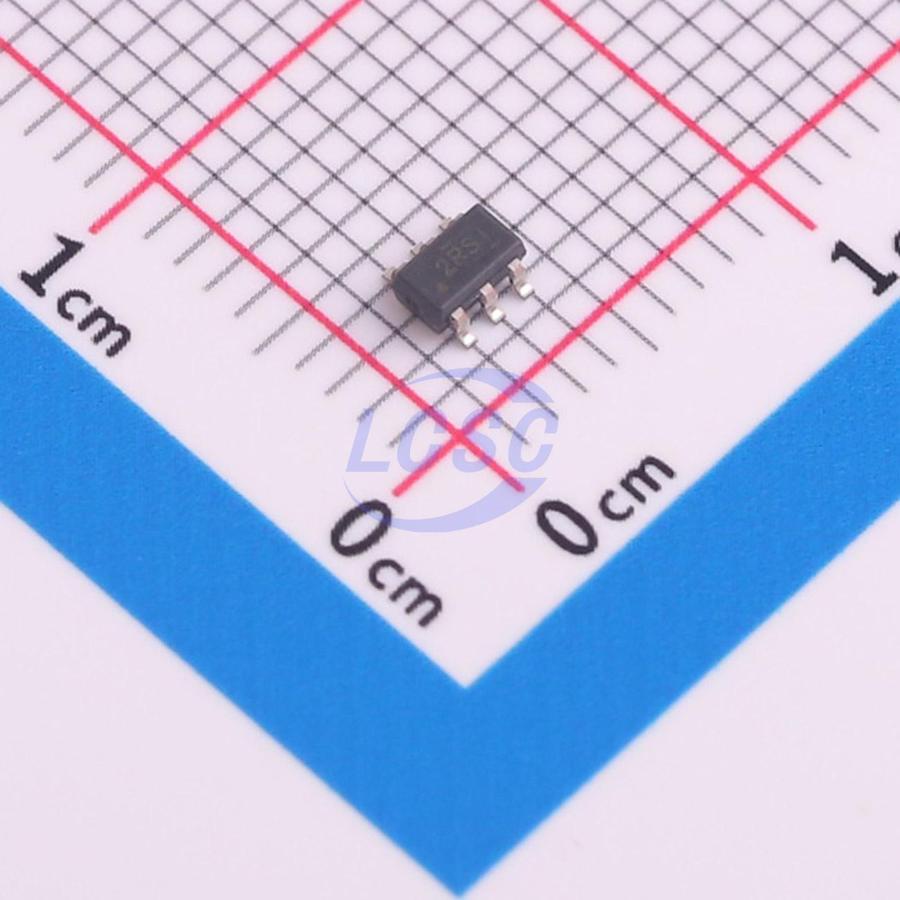

REF35250QDBVR

Series Voltage Reference IC Fixed 2.5V ±0.05% 10mA SOT-23-6

SOT-23-6ROHS3 CompliantActive

Ultra-Low-Power, High-Precision Voltage Reference

Manufacturer: TI
Manufacturer part #: REF35250QDBVR
Store part #: C6265005
Package / case: SOT-23-6
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,882 in stock

#C6265005

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹307.45	₹307.45
10+	₹271.24	₹2,712.40
30+	₹248.70	₹7,461.00
100+	₹225.28	₹22,528.00
500+	₹214.87	₹1,07,435.00
1,000+	₹210.32	₹2,10,320.00

Quantity (min 1)

1 × ₹307.45

₹307.45

excl. GST

₹362.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

REF35250QDBVR

₹307.45 for 1 + GST

Specifications

Quiescent Current: 2.6uA
Output Voltage: 2.5V
Tolerance: ±0.05%
Voltage - Supply: 2.75V~6V
Reference Type: Series
Output Current: 10mA
Operating Temperature: -40℃~+125℃@(Ta)
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.057 g

Overview

The REF35 is a family of micropower, low-drift, high-precision series voltage reference devices. The REF35 series offers an initial accuracy of ±0.05% with a typical supply current of 650nA. The device's temperature coefficient (12ppm/°C) and long-term stability (40ppm over 1000 hours) contribute to improved system stability and reliability. The combination of low power consumption and high accuracy specifications makes it suitable for a wide range of portable and low-current applications. The REF35 can source up to 10mA with noise of 3.3ppmₚ₋ₚ and a load regulation of 20ppm/mA. With these characteristics, the REF35 provides a robust low-noise, high-precision supply for precision sensors and 12- to 16-bit data converters. The device family operates over a temperature range of -40°C to 105°C and remains functional from -55°C to 125°C. The wide temperature range makes it suitable for industrial applications. The REF35 is available in multiple output voltage options from 1.024V to 5.0V. The device is offered in space-saving 6-pin SOT-23 and 4-pin WCSP package options. For available voltage and package options, contact your local Texas Instruments sales representative.

Applications

Flow transmitter
Blood glucose monitor
Servo drive control module
Power quality analyzer
Fault indicator
Oscilloscope
Process analysis
Optical module

Key features

Ultra-low quiescent current: 650nA (typical)
Initial accuracy: ±0.05% (maximum)
Temperature coefficient (maximum):
12ppm/°C (-40°C to 105°C, SOT23 package)
10ppm/°C (-40°C to 85°C, WCSP package)
Output 1/f noise (0.1Hz to 10Hz): 3.3ppmₚ₋ₚ
NR pin for noise reduction
EN pin for reduced shutdown current consumption
Long-term stability: 40ppm over 1000 hours
Hysteresis: 70ppm
Operating temperature range: -55°C to +125°C
Output current: +10mA, -5mA
Input voltage: V_REF + V_DO to 6V
Output voltage options: 1.024V, 1.2V, 1.25V, 1.6V, 1.8V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, 5.0V
Compact 6-pin SOT-23 package
Ultra-compact 4-pin WCSP package
