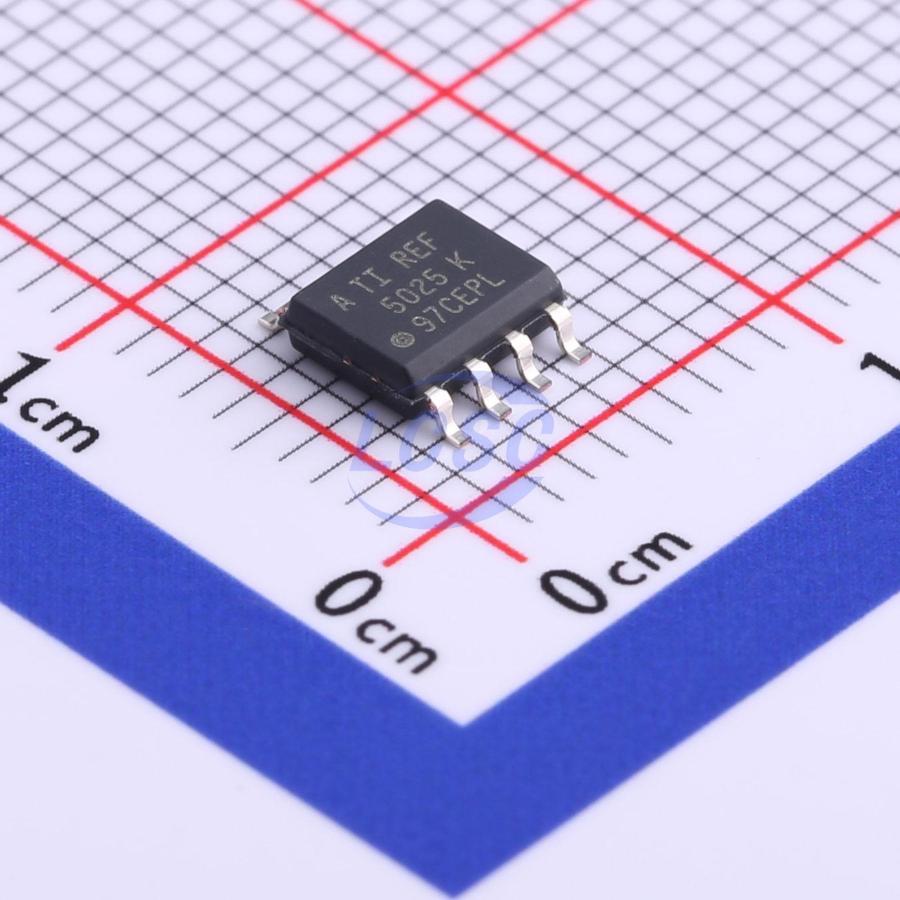

REF5025AIDR
2.5V ±0.1% 2.7V~18V 10mA Fixed SOIC-8 Voltage Reference RoHS
SOIC-8ROHS3 CompliantActive
Low-Noise, Very Low Drift, Precision Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF5025AIDR
- Store part #
- C11341
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30,710 in stock
#C11341
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.86 | ₹101.86 |
| 10+ | ₹84.52 | ₹845.20 |
| 30+ | ₹72.24 | ₹2,167.20 |
| 100+ | ₹62.13 | ₹6,213.00 |
| 500+ | ₹58.87 | ₹29,435.00 |
| 1,000+ | ₹56.89 | ₹56,890.00 |
1 × ₹101.86
₹101.86
excl. GST
₹120.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REF5025AIDR
₹101.86 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Quiescent Current
- 1.2mA
- Tolerance
- ±0.1%
- Voltage - Supply
- 2.7V~18V
- Reference Type
- Series
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Features
- Built-in temperature sensor
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.337 g
Overview
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation. Excellent temperature drift (3 ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems. Each reference voltage is available in both high grade (REF50xxIDGK and REF50xxID) and standard grade (REF50xxAIDGK and REF50xxAID). The reference voltages are offered in 8-pin VSSOP and SOIC packages, and are specified from -40°C to 125°C.
Applications
- Precision Data Acquisition Systems
- ATE Equipment
- Industrial Process Controls
- Medical Instrumentation
- Pressure and Temperature Transmitters
- Seismic monitoring systems
Key features
- Low Temperature Drift: High-Grade: 3 ppm/°C (Max) Standard-Grade: 8 ppm/°C (Max)
- High Accuracy: High-Grade: 0.05% (Max) Standard-Grade: 0.1% (Max)
- Low Noise: 3 μVPP/V
- Excellent Long-Term Stability: 45 ppm/1000 hr (Typ) after 1000 Hours
- High-Output Current: ±10 mA
- Temperature Range: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF5025AID#C1575305TI · SOIC-8 | TI | SOIC-8 | 141 | ₹267.40 · 141 in stock | View |
 | REF5025AQDRQ1#C2156523TI · SOIC-8 | TI | SOIC-8 | 2 | ₹581.83 · 2 in stock | View |
 | CM5102-SOPTA#C22446832CIMO · SOP-8 | CIMO | SOP-8 | 339 | ₹915.48 · 339 in stock | View |
 | REF5025ID#C523999TI · SOIC-8 | TI | SOIC-8 | 255 | ₹385.42 · 255 in stock | View |
 | REF5025IDR#C544535TI · SOIC-8 | TI | SOIC-8 | 2,893 | ₹515.50 · 2,893 in stock | View |
