onsemiDatasheet (PDF)

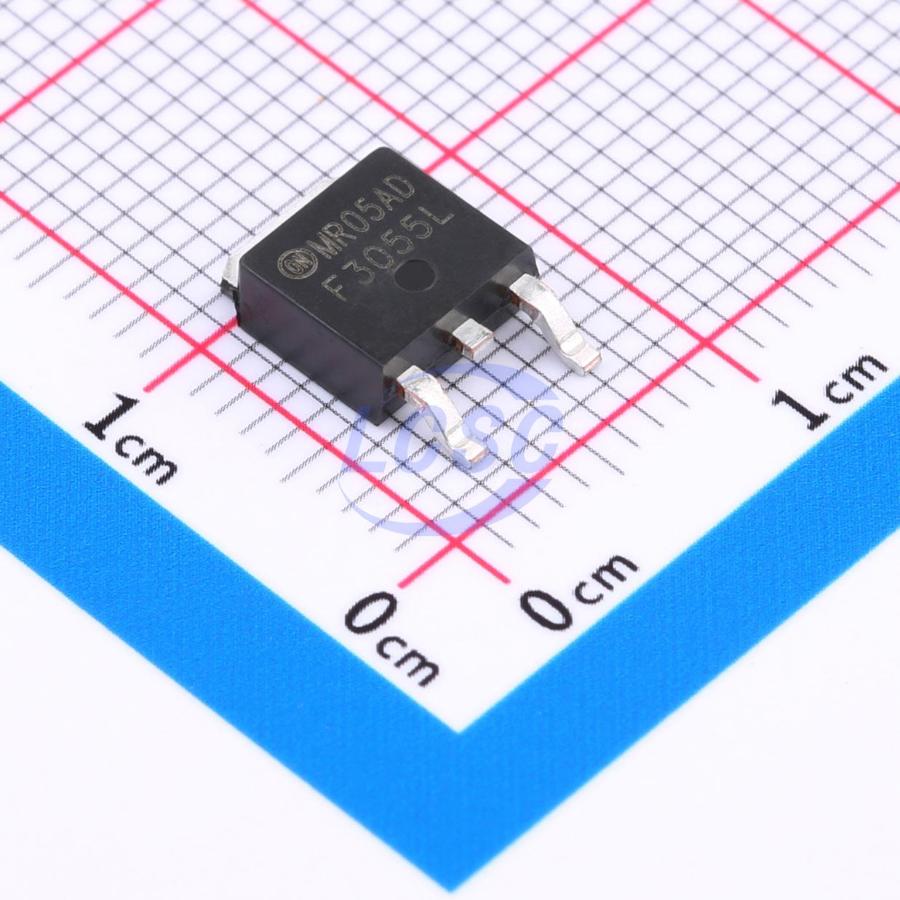

RFD3055LESM9A
N-Channel 60V 11A 38W Surface Mount DPAK-3
DPAK-3ROHS3 CompliantActive
MOSFET N-CH 60V 11A DPAK-3
- Manufacturer
- onsemi
- Manufacturer part #
- RFD3055LESM9A
- Store part #
- C236921
- Package / case
- DPAK-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
164 in stock
#C236921
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.18 | ₹115.18 |
| 10+ | ₹93.44 | ₹934.40 |
| 30+ | ₹82.36 | ₹2,470.80 |
| 100+ | ₹71.72 | ₹7,172.00 |
| 500+ | ₹65.20 | ₹32,600.00 |
| 1,000+ | ₹61.93 | ₹61,930.00 |
1 × ₹115.18
₹115.18
excl. GST
₹135.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RFD3055LESM9A
₹115.18 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 105pF
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 38W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 11A
- Reverse Transfer Capacitance (Crss)
- 23pF
- RDS(on)
- 107mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.3nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
These N-Channel enhancement-mode power MOSFETs are manufactured using the latest manufacturing process technology. This process, which uses feature sizes approaching those of LSI circuits, gives optimum utilization of silicon, resulting in outstanding performance. They were designed for use in applications such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from integrated circuits.
Applications
- switching regulators
- switching converters
- motor drivers
- relay drivers
Key features
- 11A, 60V
- rDS(ON)=0.107Ω
- Temperature Compensating PSPICE Model
- Peak Current vs Pulse Width Curve
- UIS Rating Curve
- Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards”
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSU6008#C701006HUASHUO · TO-252 | HUASHUO | TO-252 | 1,475 | ₹14.09 · 1,475 in stock | View |
 | STD12NF06T4#C2688630ST · TO-252-3 | ST | TO-252-3 | 2 | ₹153.64 · 2 in stock | View |
 | FDD10AN06A0#C236889onsemi · DPAK-3 | onsemi | DPAK-3 | 2 | ₹454.94 · 2 in stock | View |
 | STD14NM50NAG#C2688627ST · TO-252-3 | ST | TO-252-3 | 5 | ₹183.71 · 5 in stock | View |
 | GSD11N65E#C5375283XCH · TO-252-3 | XCH | TO-252-3 | 1,119 | ₹84.62 · 1,119 in stock | View |
