VISHAYDatasheet (PDF)

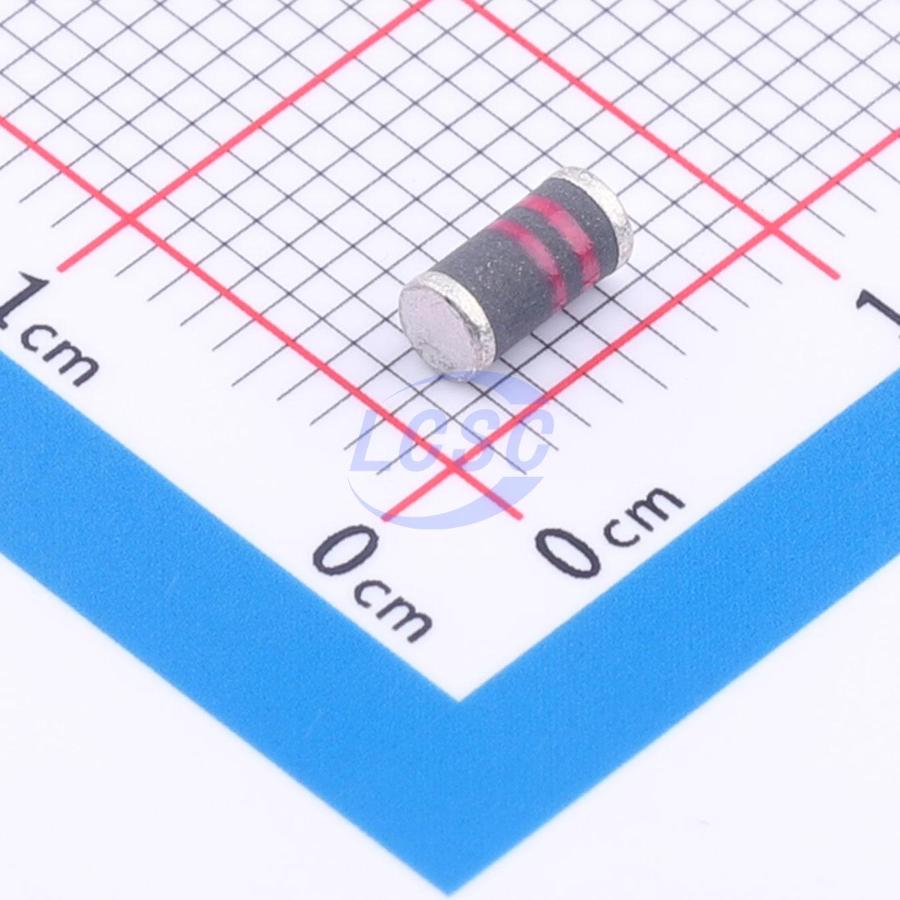

RGL41B-E3/96
Diode Independent 100V 1A Surface Mount DO-213AB
GL-41(DO-213AB)ROHS3 CompliantActive
DIODE GP 100V 1A (DO-213AB
- Manufacturer
- VISHAY
- Manufacturer part #
- RGL41B-E3/96
- Store part #
- C7503773
- Package / case
- GL-41(DO-213AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
58 in stock
#C7503773
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.25 | ₹53.25 |
| 10+ | ₹51.94 | ₹519.40 |
| 30+ | ₹51.29 | ₹1,538.70 |
| 100+ | ₹50.42 | ₹5,042.00 |
1 × ₹53.25
₹53.25
excl. GST
₹62.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RGL41B-E3/96
₹53.25 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 250ns
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.215 g
Overview
Applications
- Fast switching rectification for power supplies, inverters, and converters, as well as freewheeling diodes in consumer, automotive, and telecommunications applications
Key features
- Ultra-rectifier structure for high-reliability applications
- Ideal for automatic placement
- Fast switching for high efficiency
- Low leakage current
- High forward surge capability
- MSL Level 1 per J-STD-020, LF max peak temperature 250°C
