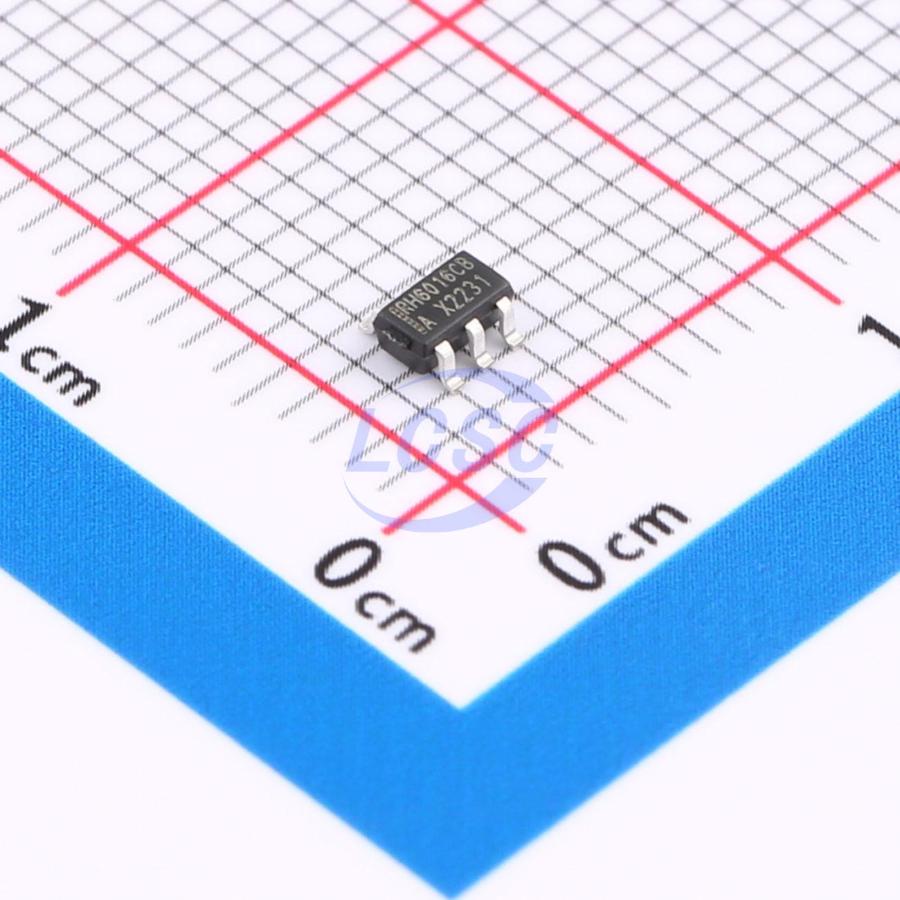

RH6016CB
Yes 1 SOT-23-6 Sensor, Capacitive Touch RoHS
- Manufacturer
- RONGHE Microelectronics
- Manufacturer part #
- RH6016CB
- Store part #
- C370788
- Package / case
- SOT-23-6
- Category
- Sensor, Capacitive Touch
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,455 in stock
#C370788
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.28 | ₹71.40 |
| 50+ | ₹11.79 | ₹589.50 |
| 150+ | ₹10.53 | ₹1,579.50 |
| 500+ | ₹9.59 | ₹4,795.00 |
| 3,000+ | ₹8.85 | ₹26,550.00 |
| 6,000+ | ₹8.47 | ₹50,820.00 |
5 × ₹14.28
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RH6016CB
₹71.40 for 5 + GST
Specifications
- ESD Protection Voltage
- 5kV
- Features
- Capacitive Touch;Automatic sensitivity calibration;Waterproof anti-interference touch
- Operating Temperature
- -20℃~+85℃
- Whether the Lock
- Yes
- Number of Channels
- 1
- Voltage - Supply
- 2.4V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
RH6016 is a single-channel capacitive touch detection IC that can replace mechanical switches or buttons. It integrates a high-precision voltage regulator, power-on reset, low-voltage reset, noise cancellation, and auto-calibration functions, delivering excellent performance, high stability, and strong anti-interference capability across a wide range of applications. The IC supports multiple operating modes configurable via pin settings, and is widely used in consumer electronics, smart home, electronic toys, lighting control, and other fields.
Applications
- Consumer Electronics
- Smart Home
- Electronic Toys
- Lighting Control
Key features
- Operating voltage: 2.4V~5.5V
- Operating current (@VDD=3V, no load): 10uA in low-power mode
- Initialization within 0.5s after power-on
- Auto-calibration function
- Built-in LDO, POR, and LVR
- Built-in noise cancellation circuit
- RH6016D: NMOS open-drain output
- RH6016C: CMOS output
- Package: SOT23-6
