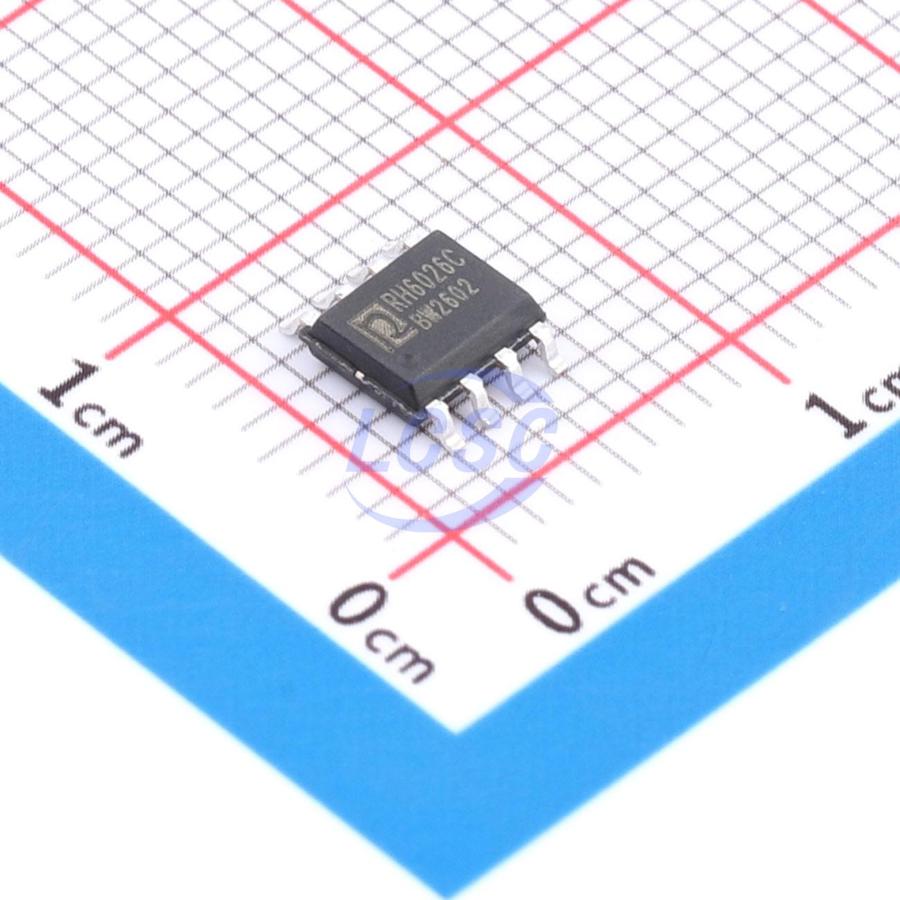

RH6026C

RH6026 is a dual-channel capacitive touch sensing control switch IC with an integrated voltage regulator module, designed to replace conventional mechanical switches. The device supports touch functionality through dielectric isolation barriers such as glass, acrylic, plastic, or ceramic, offering high safety. It integrates a high-precision voltage regulator, power-on reset, undervoltage reset, hardware debounce circuitry, and an environment-adaptive algorithm, significantly enhancing noise immunity. The chip supports multiple operating modes configurable via external pins.

Applications

• Lighting control
• Electronic toys
• Consumer electronics
• Home appliances

Key features

• Operating voltage range: 2.4V ~ 5.5V
• Standby average current less than 11uA at 3.0V
• Fast initialization within 0.6 seconds after power-on
• Ambient adaptive capability for quick adaptation to scenarios such as power-on before medium coverage and touch power-on
• Reliable power-on reset and low-voltage reset performance
• Built-in debounce circuit to prevent false triggering caused by external noise interference
• Configurable active-high or active-low output, synchronous or hold mode, and maximum on-time
• CMOS output type
• SOP8 package
