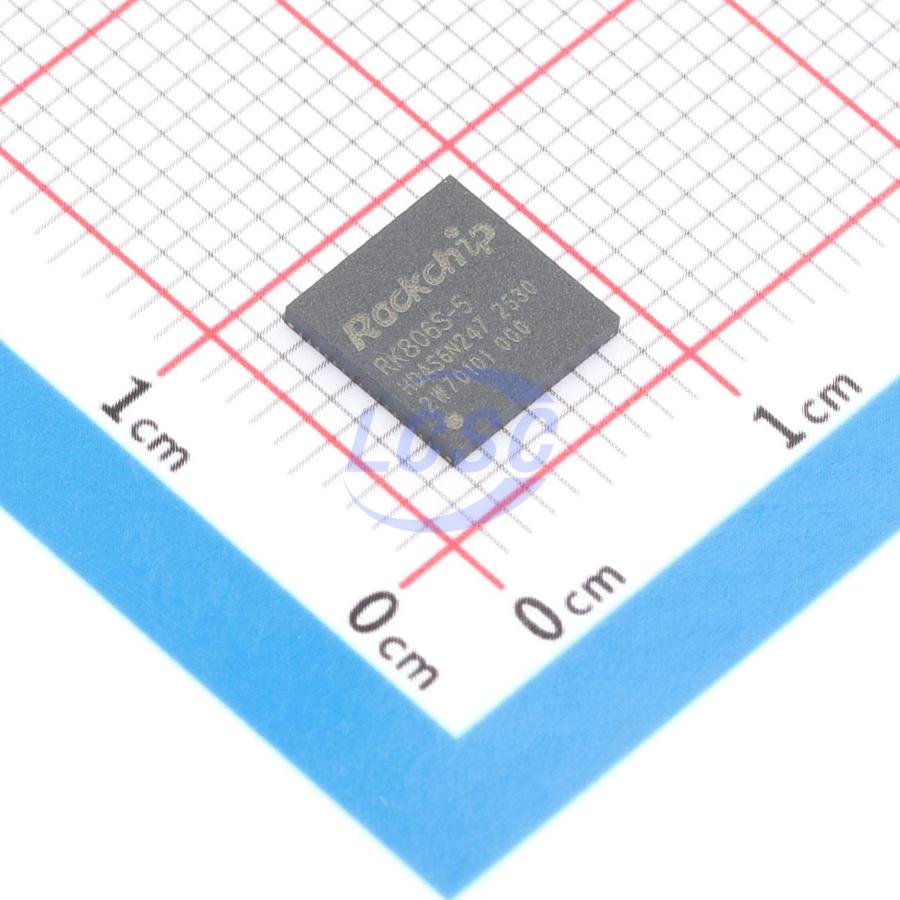

Rockchip

RK806S-5

0.5V~3.4V QFN-68(7x7) Power Management - Specialized

QFN-68(7x7)RoHSActive

Manufacturer: Rockchip
Manufacturer part #: RK806S-5
Store part #: C49174044
Package / case: QFN-68(7x7)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,467 in stock

#C49174044

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹338.87	₹338.87
10+	₹286.67	₹2,866.70
30+	₹253.83	₹7,614.90
100+	₹220.12	₹22,012.00
500+	₹204.89	₹1,02,445.00
1,000+	₹198.37	₹1,98,370.00

Quantity (min 1)

1 × ₹338.87

₹338.87

excl. GST

₹399.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

RK806S-5

₹338.87 for 1 + GST

Specifications

Features: Dynamic voltage scaling;Power-on timing control
Operating Temperature: -40℃~+125℃
Interface: I2C;SPI
Voltage - Supply: 2.7V~5.5V
Output Voltage: 0.5V~3.4V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.322 g

Overview

RK806S is a sophisticated power management IC capable of delivering a complete power management solution with minimal external components. The device features 10 fast load transient synchronous buck converters, along with 6 LDO regulators and 5 NMOS LDO regulators for high efficiency. Its configurable power-on/power-off controller supports any customized power-on/power-off sequence based on OTP. The RK806S integrates 10-channel step-down DC-DC converters, all employing ripple-based control for ultra-fast load transient response. All channels support dynamic output voltage adjustment based on processor operating states to maximize system efficiency. Output voltages for most channels are configurable via I2C or SPI interface. All channel inputs feature soft-start functionality.

Key features

10 fast load transient synchronous buck converters
6 LDO regulators
5 NMOS LDO regulators for high efficiency
Configurable power-up/power-down controller with OTP-based customizable power-up/power-down sequencing
10-channel buck DC-DC converters with ripple-based control for fast load transient response
Dynamic output voltage adjustment based on processor operating state
Output voltage configurable via I2C or SPI interface for most channels
Soft-start on all channel inputs
