YAGEODatasheet (PDF)

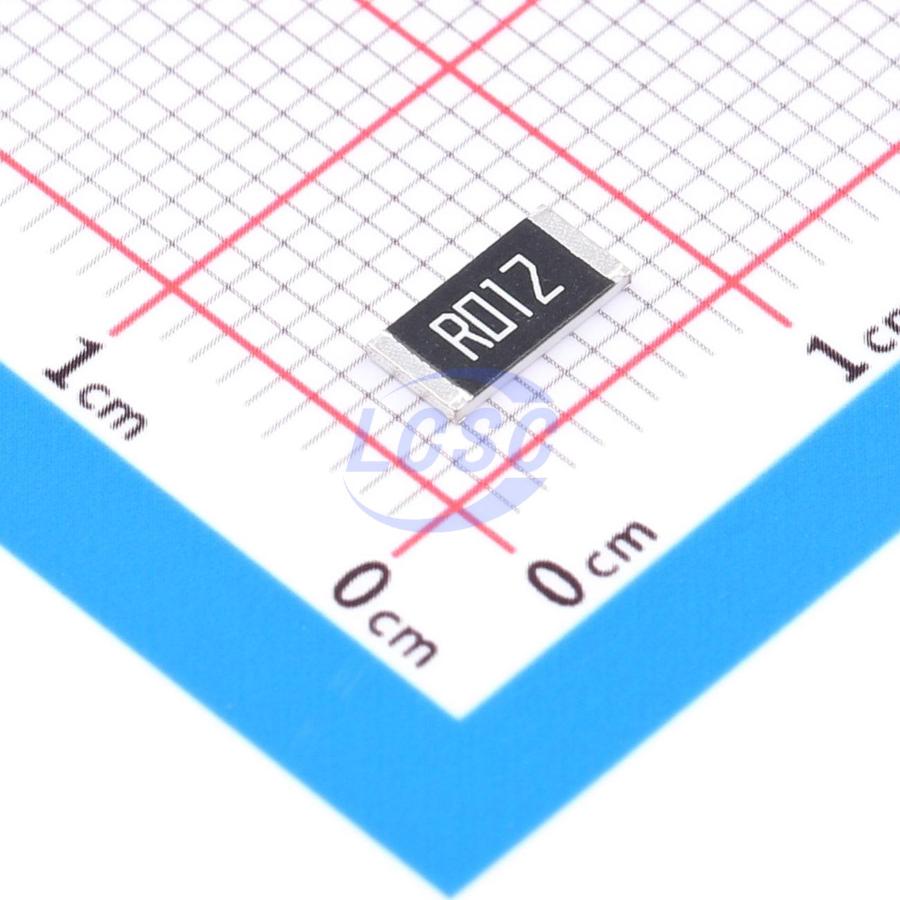

RL2512FK-070R012L
12mΩ 1W Thick Film Resistor ±1500ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.012Ω ±1% 1W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- RL2512FK-070R012L
- Store part #
- C876444
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,090 in stock
#C876444
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.13 | ₹70.65 |
| 50+ | ₹11.30 | ₹565.00 |
| 150+ | ₹9.88 | ₹1,482.00 |
| 500+ | ₹8.82 | ₹4,410.00 |
| 2,500+ | ₹7.98 | ₹19,950.00 |
| 4,000+ | ₹7.55 | ₹30,200.00 |
5 × ₹14.13
₹70.65
excl. GST
₹83.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RL2512FK-070R012L
₹70.65 for 5 + GST
Specifications
- Resistance
- 12mΩ
- Power(Watts)
- 1W
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±1500ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.7 g
Overview
This specification describes low-ohm chip resistors from RL0402 to RL2512, manufactured using thick-film technology with lead-free terminations.
Applications
- Converters, printer devices, server boards, telecommunications, consumer electronics, automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- No hazardous waste
- High component and device reliability
- PCB space saving
- Non-prohibited materials used in product/production
- Low resistance for current sensing
- MSL rating: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT25R012FTE#C305112RALEC · 2512 | RALEC | 2512 | 1,170 | ₹8.63 · 1,170 in stock | View |
 | 25121WF120MT4E#C406965UNI-ROYAL · 2512 | UNI-ROYAL | 2512 | 160 | ₹5.95 · 160 in stock | View |
 | CR2512FR012E04Z#C176025EVER OHMS · 2512 | EVER OHMS | 2512 | 20 | ₹9.74 · 20 in stock | View |
 | GR2512F0R012T4G00#C49656630GiantOhm · 2512 | GiantOhm | 2512 | 3,740 | ₹4.60 · 3,740 in stock | View |
 | PA2512FKF070R012E#C914838YAGEO · 2512 | YAGEO | 2512 | 2,625 | ₹14.70 · 2,625 in stock | View |
