Nisshinbo Micro Devices Inc.

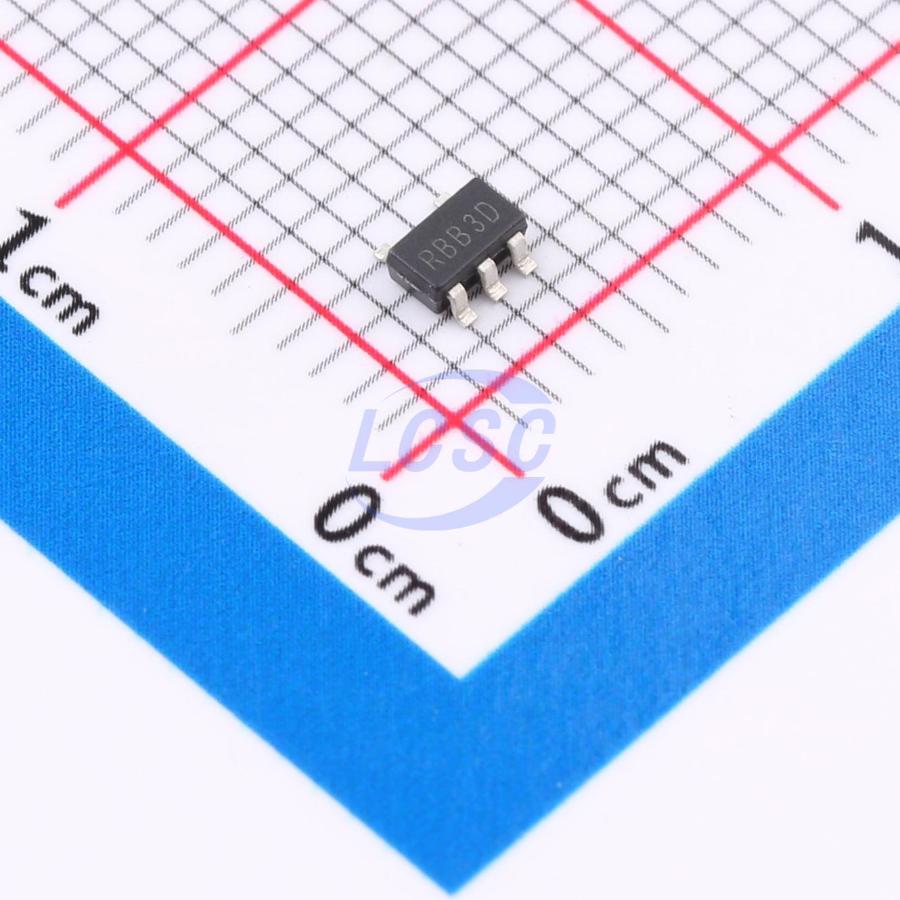

RP114N331D-TR-FF

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS CompliantActive

300mA LDO Regulator

Manufacturer: Nisshinbo Micro Devices Inc.
Manufacturer part #: RP114N331D-TR-FF
Store part #: C259725
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,490 in stock

#C259725

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.38	₹71.90
50+	₹11.69	₹584.50
150+	₹10.35	₹1,552.50
500+	₹9.35	₹4,675.00
3,000+	₹8.55	₹25,650.00
6,000+	₹8.14	₹48,840.00

Quantity (min 5, multiples of 5)

5 × ₹14.38

₹71.90

excl. GST

₹84.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RP114N331D-TR-FF

₹71.90 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 50uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 5.25V
Features: Enable control;Short Circuit Protection;Output discharge;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The RP114x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low dropout, and high ripple rejection. Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors for setting output voltage, a short current limit circuit, a chip enable circuit, and so on. RP114x features a minimum input voltage from 1.4V and the output voltage, which can be set from 0.8V to 3.6V (in 0.1V step). The output voltage of these ICs is internally fixed. These ICs perform with low dropout voltage due to built-in transistor with low ON resistance. Low supply current and a chip enable function prolong the battery life of each system. The ripple rejection, line transient response and load transient response of the RP114x Series are excellent, thus these ICs are very suitable for the power supply for hand-held communication equipment. Since the packages for these ICs are DFN(PLP)1010-4, SC-88A, SOT-23-5, therefore high density mounting of the ICs on boards is possible.

Applications

Power source for portable communication equipment.
Power source for electrical appliances such as cameras, VCRs and camcorders.
Power source for battery-powered equipment.

Key features

Supply Current... Typ. 50µA
Standby Current... Typ. 0.1µA
Input Voltage Range... 1.4V to 5.25V
Output Voltage Range... 0.8V to 3.6V (0.1V steps)
Output Voltage Accuracy... ±1.0% (VSET>2.0V, Topt = 25°C)
Temperature-Drift Coefficient of Output Voltage... Typ. ±80ppm/°C
Dropout Voltage... Typ. 0.25V (IOUT = 300mA, VSET = 2.8V)
Ripple Rejection... Typ. 75dB (f = 1kHz)
Line Regulation... Typ. 0.02%/V
Packages: DFN(PLP)1010-4, SC-88A, SOT-23-5
Built-in Fold Back Protection Circuit... Typ. 60mA (Current at short mode)
Ceramic capacitors are recommended to be used with this IC... 1.0µF or more
