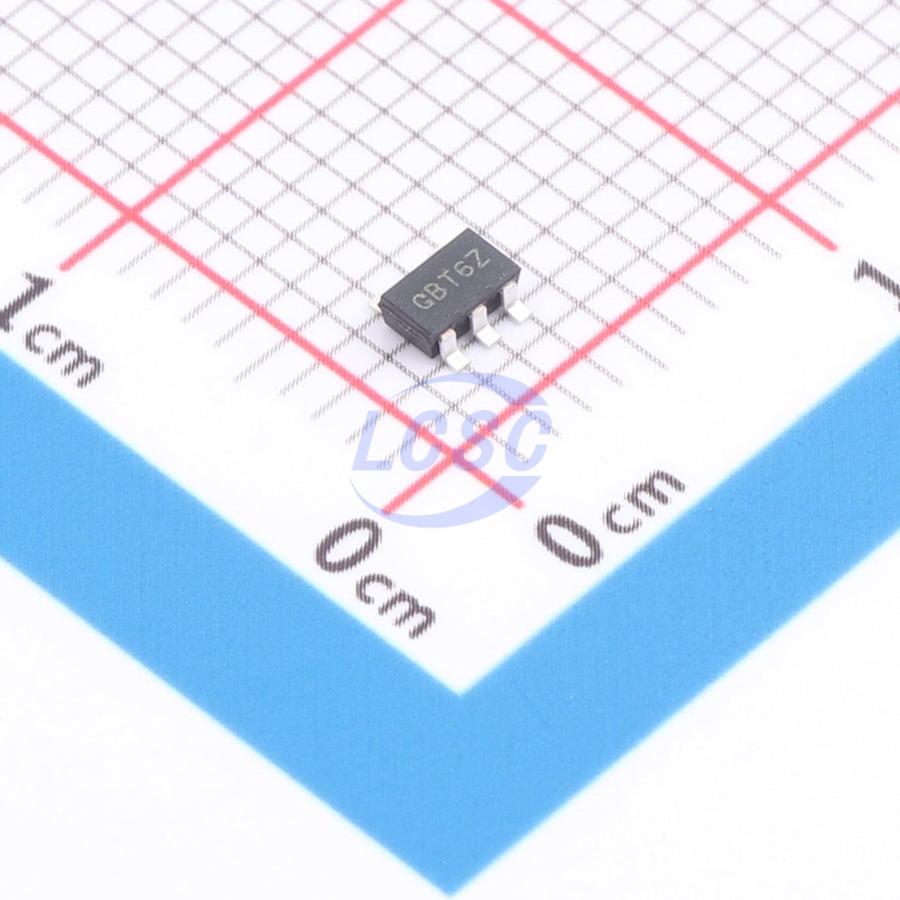

RP170N501D-TR-FE

The RP170x is LDO regulator featuring 300mA output current. Because of the 10V maximum input voltage, RP170x can be used in 2 cell lithium-ion battery powered portable appliances and besides a portable equipment. The supply current is Typ. 23μA though an excellent response characteristics. The output voltage range from 1.2V is possible. The output voltage accuracy and temperature-drift coefficient of output voltage of the RP170x Series are excellent. RP170x has a fold-back protection circuit and a thermal shutdown circuit. Moreover, a standby mode with ultra low supply current can be realized with the chip enable function. SC-88A, SOT-23-5 and SOT-89-5 with high power dissipation packages are available.

Applications

• Power source for portable communication equipment.
• Power source for electrical appliances such as cameras, VCRs and camcorders.
• Power source for battery-powered equipment.
• Power source for home appliances.

Key features

• Supply Current ··· Typ. 23μA
• Standby Mode ··· Typ. 0.1μA
• Dropout Voltage ··· Typ. 0.20V (IOUT=100mA, VOUT=3.0V) Typ. 0.77V (IOUT=300mA, VOUT=2.8V)
• Ripple Rejection ··· Typ. 70dB (f = 1kHz)
• Temperature-Drift Coefficient of Output Voltage ··· Typ. ±80ppm/°C
• Line Regulation ··· Typ. 0.02%/V
• Output Voltage Accuracy ··· ±1.0%
• Packages ··· SC-88A, SOT-23-5, SOT-89-5
• Input Voltage Range ··· 2.6V to 10.0V
• Output Voltage Range ··· 1.2V to 6.5V (0.1V steps)
• Built-in Fold Back Protection Circuit ··· Typ. 40mA (Current at short mode)
• Built-in Thermal Shutdown Circuit ··· Shutdown Temperature at 165°C
• Built-in Constant Slope Circuit (Soft-start Function)
• Ceramic capacitors are recommended to be used with this IC ··· 1.0μF or more
