ROHMDatasheet (PDF)

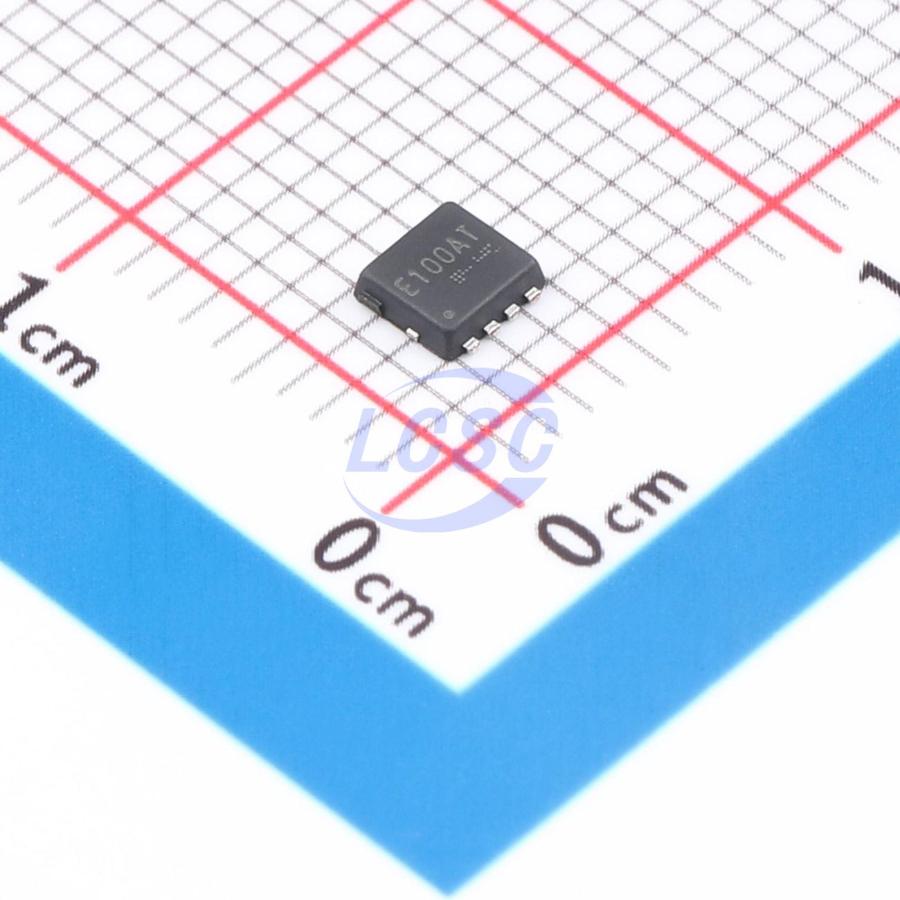

RQ3E100ATTB
2W 30V 11.4mΩ@10V 1 P-Channel P-Channel HSMT-8(3x3.2) Single FETs, MOSFETs RoHS
HSMT-8(3x3.2)ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- RQ3E100ATTB
- Store part #
- C7060758
- Package / case
- HSMT-8(3x3.2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C7060758
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.17 | ₹105.17 |
| 10+ | ₹102.56 | ₹1,025.60 |
| 30+ | ₹100.81 | ₹3,024.30 |
| 100+ | ₹98.85 | ₹9,885.00 |
1 × ₹105.17
₹105.17
excl. GST
₹124.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RQ3E100ATTB
₹105.17 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 340pF
- Ciss-Input Capacitance
- 1.9nF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 10A;31A
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 11.4mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 42nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- Switch
Key features
- Low on-resistance
- High-power compact package (HSMT8)
- Lead-free plating; RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP3011SFVW-13#C5245374DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 4 | ₹207.63 · 4 in stock | View |
 | CJAB35P03#C504071JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 19,250 | ₹32.48 · 19,250 in stock | View |
 | SI7617DN-T1-GE3#C727607VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 4,357 | ₹98.54 · 4,357 in stock | View |
 | DMPH4025SFVWQ-13#C6832250DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 100 | ₹139.72 · 100 in stock | View |
 | DMP3013SFV-7#C264098DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 4,074 | ₹164.03 · 4,074 in stock | View |
