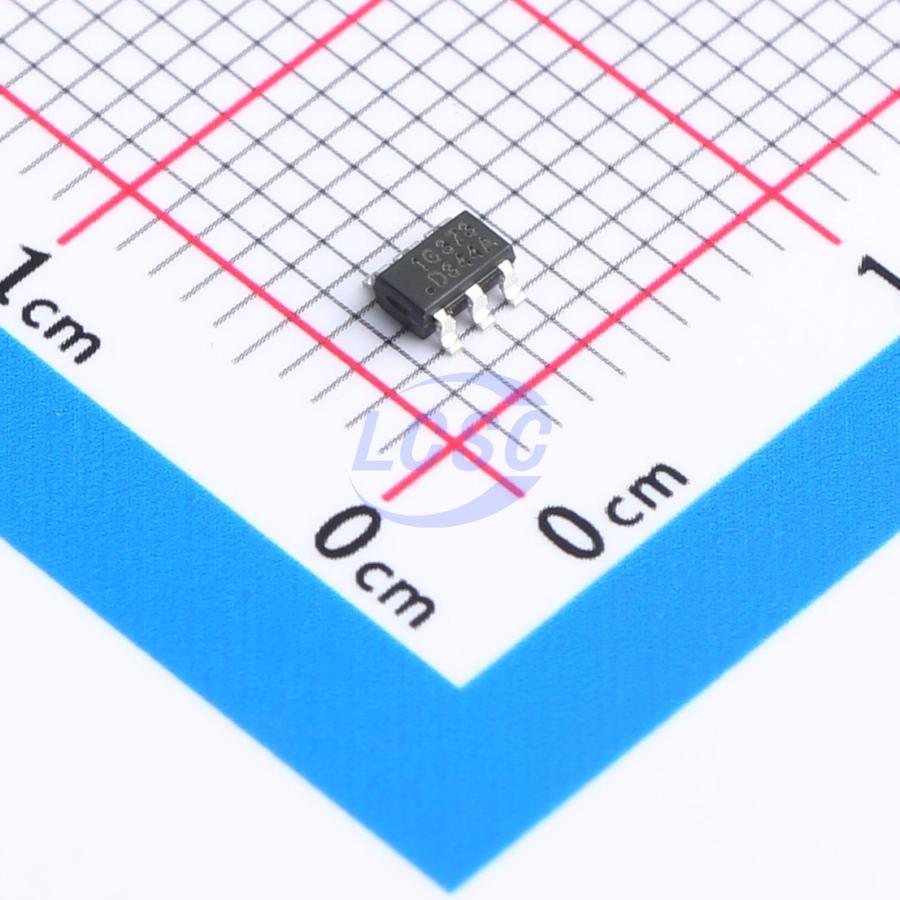

RS1G373XH6
D Latch 1.65V~5.5V 1 7ns SOT-23-6 Latches
Single D-Type Latch With 3-State Output
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C20611920
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.03 | ₹95.15 |
| 50+ | ₹14.21 | ₹710.50 |
| 150+ | ₹12.14 | ₹1,821.00 |
| 500+ | ₹9.57 | ₹4,785.00 |
5 × ₹19.03
₹95.15
excl. GST
₹112.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G373XH6
₹95.15 for 5 + GST
Specifications
- Logic Type
- D Latch
- Quiescent Current
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 24mA
- Output Type
- Tri-State
- Setup Time
- 1.5ns
- Number of Gates
- 1
- Current - Output High(IOH)
- 24mA
- Hold Time
- 1.5ns
- Propagation Delay
- 7ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.016 g
Overview
The RS1G373 device is a single D-type latch is designed for 1.65V to 5.5V VCC operation. This device is particularly suitable for implementing buffer registers, l/O ports, bidirectional bus drivers and working registers. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the logic levels set up at the D inputs. OE(overline) does not affect the internal operations of the latch. Old data can be retained or new data can be entered while the outputs are in the high-impedance state. The RS1G373 is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. This device available in Green SOT23-6 and SOT363(SC70-6) packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Servers
- Printers
- Telecom and Grid Infrastructure
- Electronic Point of Sale
- Memory Addressing
- Buffer Registers
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 10μA (Max)
- Operating Temperature Range: -40°C to +125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Ioff Supports Live Insertion, Partial-Power Down Mode, and Back-Drive Protection
- Micro SIZE PACKAGES: SOT23-6, SOT363(SC70-6)
