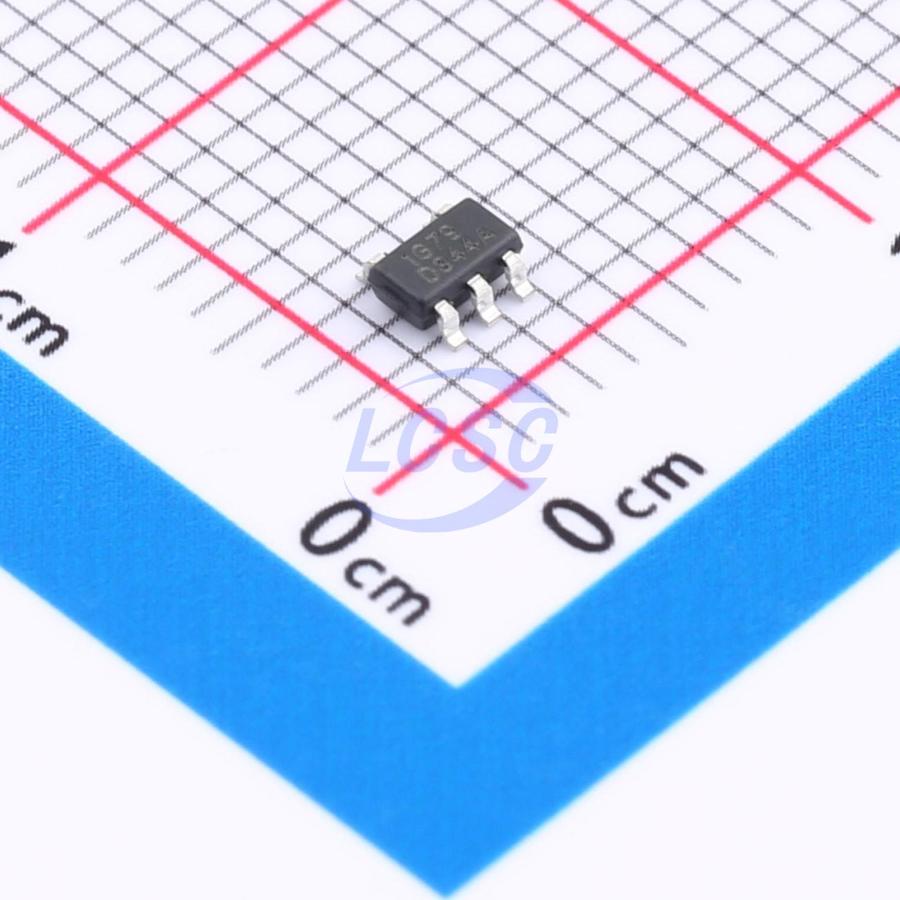

RUNIC

RS1G79XF5

1.65V~5.5V 1 1 7.5ns@5V,50pF SOT-23-5 Flip Flops

SOT-23-5RoHSActive

Single Positive-Edge-Triggered D-Type Flip-Flop

Manufacturer: RUNIC
Manufacturer part #: RS1G79XF5
Store part #: C42459518
Package / case: SOT-23-5
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,640 in stock

#C42459518

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.40	₹54.00
100+	₹5.27	₹527.00
300+	₹5.19	₹1,557.00
1,000+	₹5.11	₹5,110.00

Quantity (min 10, multiples of 10)

10 × ₹5.40

₹54.00

excl. GST

₹63.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G79XF5

₹54.00 for 10 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Number of Bits per Element: 1
Operating Temperature: -40℃~+125℃
Series: RS1G79
Current - Output High(IOH): 24mA
Number of Elements: 1
Current - Output Low(IOL): 24mA
Setup Time: 1ns
Quiescent Current: 100nA
Hold Time: 1ns
Propagation Delay: 7.5ns@5V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.023 g

Overview

The RS1G79 single positive-edge-triggered D-type flipflop is designed for 1.65V to 5.5V VCC operation. When data at the data (D) input meets the setup time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the level at the output.

Applications

Network Switch
Telecom Infrastructure
Servers
I/O Expanders
LED Displays

Key features

Operating Voltage Range: 1.65V to 5.5V
Low Power Consumption: 10μA (Max)
Operating Temperature Range: -40°C to +125°C
Inputs Accept Voltage to 5.5V
High Output Drive: ±24mA at Vcc = 3.0V
Ioff Supports Live Insertion, Partial-Power Down Mode, and Back-Drive Protection
Micro SIZE PACKAGES: SOT23-5, SC70-5
