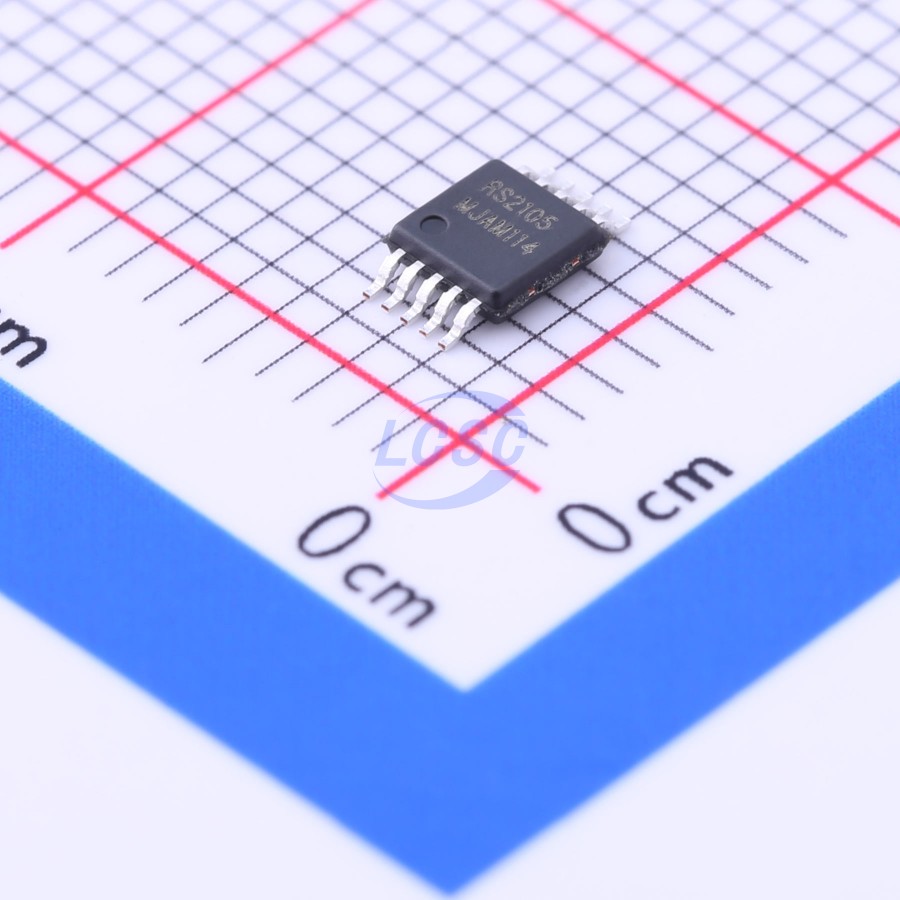

RUNIC

RS2105XN

2 1.8V~5.5V 500mΩ MSOP-10 Analog Switches, Multiplexers, Demultiplexers RoHS

MSOP-10ROHS3 CompliantActive

Ultra Low ON-Resistance, Low Voltage, Dual, SPDT Analog Switch

Manufacturer: RUNIC
Manufacturer part #: RS2105XN
Store part #: C237025
Package / case: MSOP-10
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,490 in stock

#C237025

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹35.46	₹177.30
50+	₹29.20	₹1,460.00
150+	₹25.03	₹3,754.50
500+	₹20.86	₹10,430.00
2,500+	₹19.82	₹49,550.00
4,000+	₹16.70	₹66,800.00

Quantity (min 5, multiples of 5)

5 × ₹35.46

₹177.30

excl. GST

₹209.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2105XN

₹177.30 for 5 + GST

Specifications

Features: Glitch-free switching
Operating Temperature: -40℃~+125℃
Number of Channels: 2
Voltage - Supply: 1.8V~5.5V
Ron: 500mΩ
Con: 350pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

The RS2105 is a dual, low on-resistance, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V. The RS2105 device can handle both analog and digital signals. It features fast switching speeds (50ns) and low on-resistance (0.5Ω TYP). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

Wearable Devices
Battery-Operated Equipment
Signal Gating, Chopping, Modulation or Demodulation (Modem)
Portable Computing
Cell Phones

Key features

3dB Bandwidth: 30MHz High Speed, Typically 50ns
Supply Range: +1.8V to +5.5V
Low ON-State Resistance, 0.5Ω(TYP)
Break-Before-Make Switching
Rail-to-Rail Operation
TTL/CMOS Compatible
Extended Industrial Temperature Range: -40°C to +125°C

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
RS2102XN#C255473RUNIC · MSOP-10	RUNIC	MSOP-10	985	₹40.74 · 985 in stock	View
RS2227XN#C255478RUNIC · MSOP-10	RUNIC	MSOP-10	9,565	₹41.54 · 9,565 in stock	View
RS2228XN#C783420RUNIC · MSOP-10	RUNIC	MSOP-10	3,900	₹43.29 · 3,900 in stock	View
RS2058XN#C255475RUNIC · MSOP-10	RUNIC	MSOP-10	10,150	₹38.83 · 10,150 in stock	View
