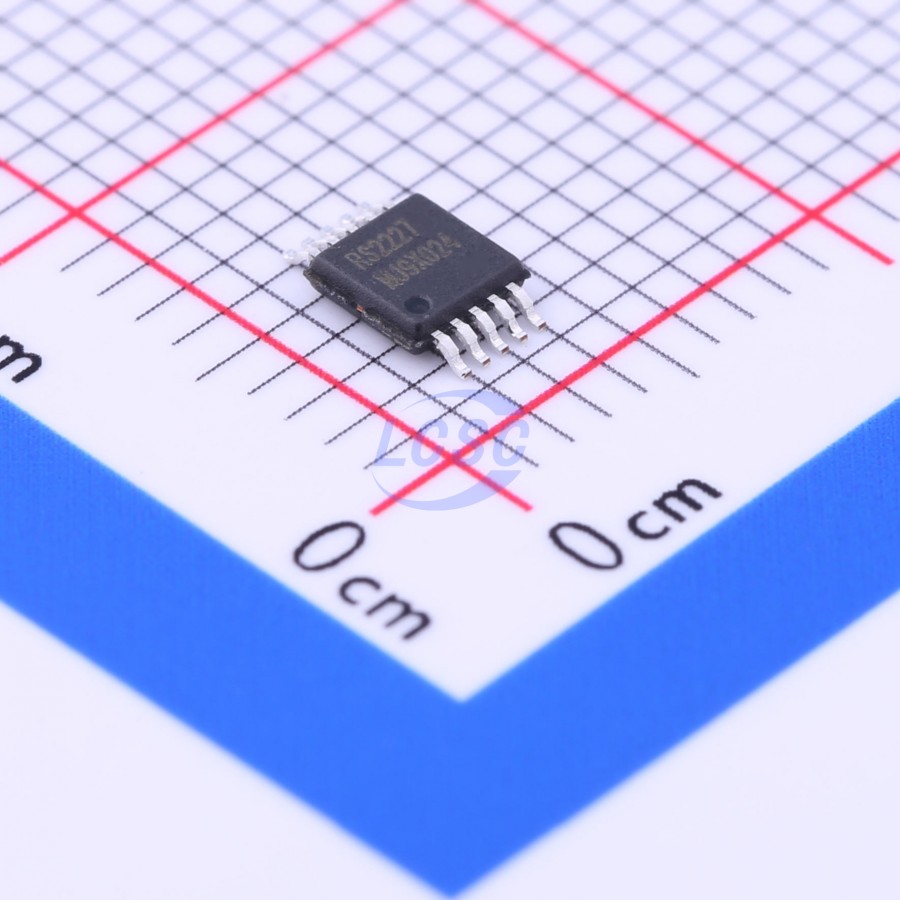

RUNICDatasheet (PDF)
RS2227XN
1.8V~5.5V 550MHz 6Ω 2 2:1 MSOP-10 Analog Switches - Special Purpose RoHS
MSOP-10ROHS3 CompliantActive
High-Speed USB 2.0 (480-Mbps) 1:2 Multiplexer/Demultiplexer Switch
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2227XN
- Store part #
- C255478
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,565 in stock
#C255478
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.54 | ₹207.70 |
| 50+ | ₹31.10 | ₹1,555.00 |
| 150+ | ₹26.51 | ₹3,976.50 |
| 500+ | ₹22.97 | ₹11,485.00 |
| 2,500+ | ₹20.88 | ₹52,200.00 |
| 4,000+ | ₹18.79 | ₹75,160.00 |
5 × ₹41.54
₹207.70
excl. GST
₹245.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS2227XN
₹207.70 for 5 + GST
Specifications
- Turn-on time
- 20ns
- Turn-off time
- 15ns
- Voltage - Supply
- 1.8V~5.5V
- -3dB Bandwidth
- 550MHz
- Ron
- 6Ω
- Number of Channels
- 2
- Propagation Delay (tpd)
- 350ps
- Switch Circuit
- 2:1
- Operating Temperature
- -40℃~+85℃
- Features
- Glitch-free switching
- Con
- 7pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.159 g
Overview
-3dB Bandwidth: 550MHz Supply Range: +1.8V to +5.5V RON is Typically 6Ω Fast Switching Times: tON 20ns tOFF 15ns Break-Before-Make Switching Low Power Consumption (μA Maximum) • Rail-to-Rail Input and Output Operation Extended Industrial Temperature Range: -40°C to +85°C MicroSIZE PACKAGES: MSOP-10
Applications
- Routes Signals for USB 1.0, 1.1, and 2.0
- MP3 and Other Personal Media Players
- Portable Instrumentation
- USB Switching
- Digital Cameras
- Set-Top Box
- Cell Phones
- PDAs
Key features
- -3dB Bandwidth: 550MHz
- Supply Range: +1.8V to +5.5V
- RON is Typically 6Ω
- Fast Switching Times: tON 20ns tOFF 15ns
- Break-Before-Make Switching
- Low Power Consumption (μA Maximum)
- Rail-to-Rail Input and Output Operation
- Extended Industrial Temperature Range: -40°C to +85°C
- MicroSIZE PACKAGES: MSOP-10
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS2228XN#C783420RUNIC · MSOP-10 | RUNIC | MSOP-10 | 3,900 | ₹43.29 · 3,900 in stock | View |
 | RS2105XN#C237025RUNIC · MSOP-10 | RUNIC | MSOP-10 | 10,490 | ₹35.46 · 10,490 in stock | View |
 | RS2102XN#C255473RUNIC · MSOP-10 | RUNIC | MSOP-10 | 985 | ₹40.74 · 985 in stock | View |
 | RS2058XN#C255475RUNIC · MSOP-10 | RUNIC | MSOP-10 | 10,150 | ₹38.83 · 10,150 in stock | View |
