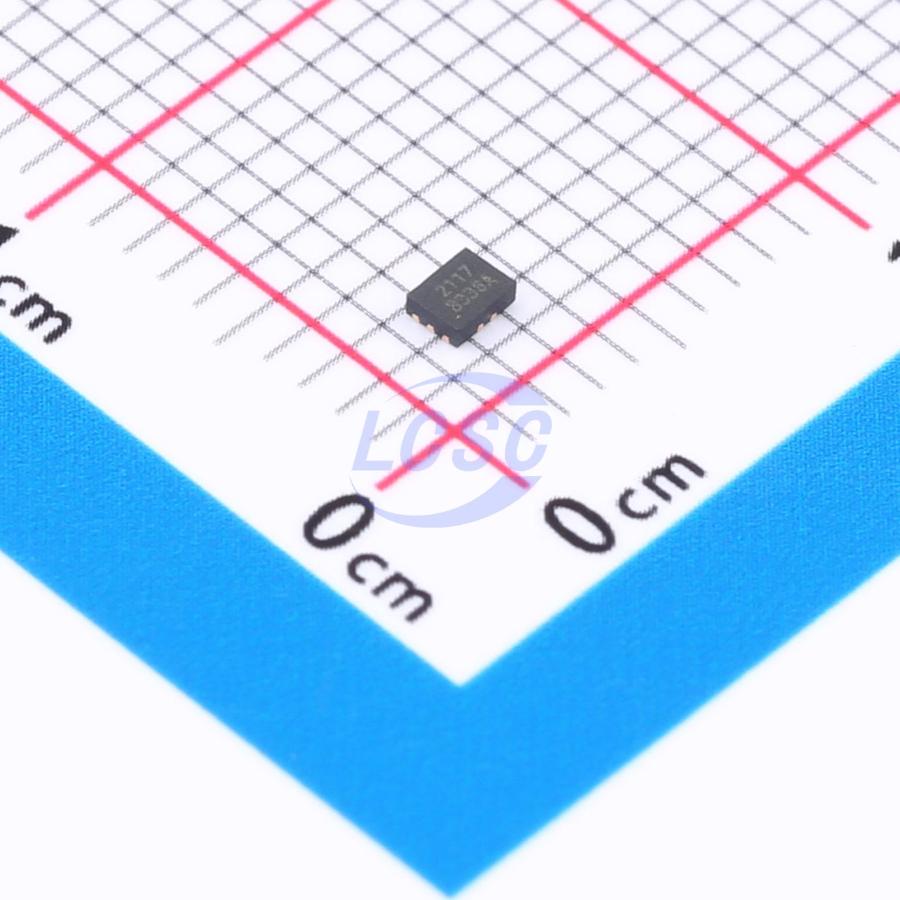

RS2117HYUTQK10
2.5V~5.5V 2 6.5Ω@3.3V QFN-1.4x1.8-10L Analog Switches, Multiplexers, Demultiplexers
QFN-1.4x1.8-10LRoHSActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2117HYUTQK10
- Store part #
- C5372464
- Package / case
- QFN-1.4x1.8-10L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,870 in stock
#C5372464
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.48 | ₹237.40 |
| 50+ | ₹35.56 | ₹1,778.00 |
| 150+ | ₹30.36 | ₹4,554.00 |
| 500+ | ₹23.85 | ₹11,925.00 |
5 × ₹47.48
₹237.40
excl. GST
₹280.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS2117HYUTQK10
₹237.40 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 2.5V~5.5V
- Number of Channels
- 2
- Ron
- 6.5Ω@3.3V
- Con
- 25pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
RS2117H is a bidirectional, dual-channel SPDT analog switch designed to operate over a supply voltage range of 2.5V to 5.5V, capable of handling negative signals as low as -2.0V. The device features an on-resistance as low as 4Ω with channel-to-channel matching within 1Ω. It is available in UQFN1.4X1.8-10 and MSOP10 packages.
Applications
- Wearable devices
- Battery-powered devices
- Signal gating, chopping, modulation or demodulation
- Portable computing devices
- Mobile phones
Key features
- 3dB Bandwidth: 250MHz
- Supply Range: +2.5V to +5.5V
- Negative Signal Swing Capability: -2V to V+
- Break-Before-Make Switching
- Fast Turn-On and Turn-Off Times
- 1.8V Logic Control
- Extended Industrial Temperature Range: -40°C to +85°C
- Available in Small Green UQFN1.4X1.8-10 and MSOP10 Packages
