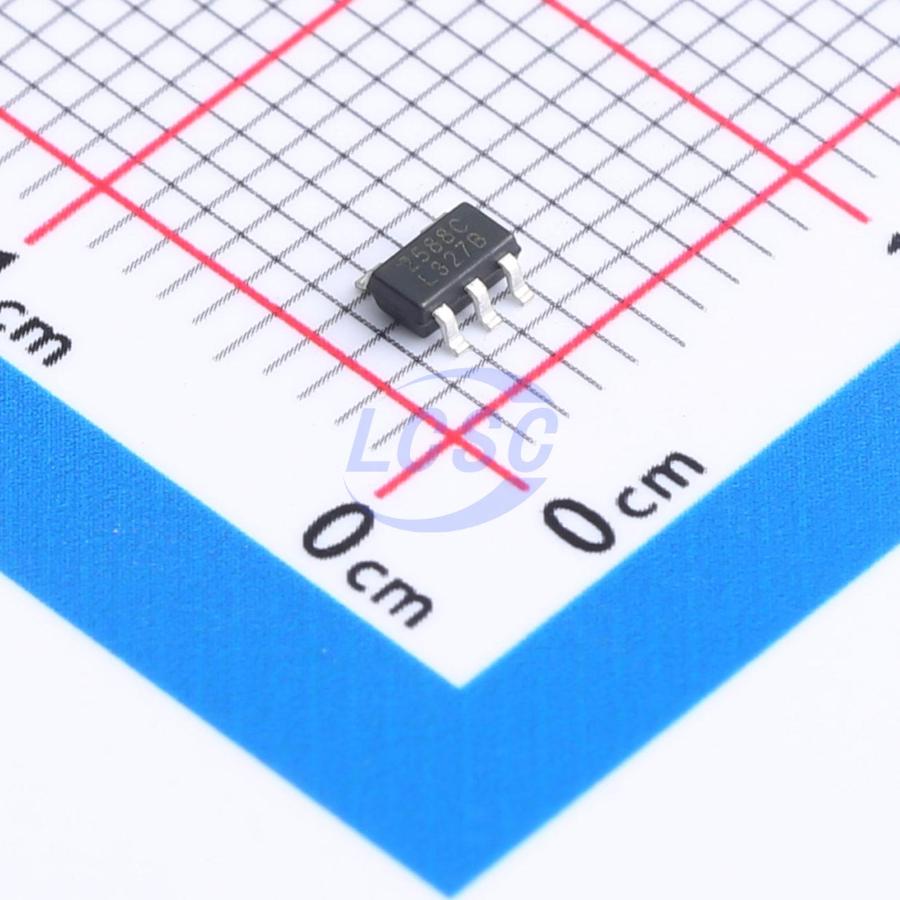

RS2588CYF5
1 2.86A Active High High Side Switch SOT23-5 Power Distribution Switches, Load Drivers RoHS
SOT23-5ROHS3 CompliantActive
Low Quiescent Current Power Distribution Switch
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2588CYF5
- Store part #
- C5372480
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C5372480
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.39 | ₹141.95 |
| 50+ | ₹21.83 | ₹1,091.50 |
| 150+ | ₹19.02 | ₹2,853.00 |
| 500+ | ₹15.52 | ₹7,760.00 |
| 3,000+ | ₹13.96 | ₹41,880.00 |
| 6,000+ | ₹13.02 | ₹78,120.00 |
5 × ₹28.39
₹141.95
excl. GST
₹167.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS2588CYF5
₹141.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 2.86A
- Control Input Logic
- Active High
- Operating Voltage
- 2.5V~5.5V
- RDS(on)
- 70mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
An integrated 70mΩ(TYP) power switch for self-powered and bus-powered universal series bus (USB) applications. Internally current limited and has thermal shutdown function to protect device and load from over-current damage. Thermal shutdown shuts off the output MOSFET and asserts the flag pin output if the die temperature exceeds 150°C until the die temperature drops to 130°C. The soft-start circuit can minimize inrush current in applications where highly capacitive loads are employed. The flag pin asserts low when during over-current and thermal conditions after a 13ms blanking time to prevent false reporting. Available in SOT23-5 package. Rated over the -40°C to +85°C temperature range.
Applications
- Smart Phone & LCD TV
- Set-Top Boxes
- VOIP
- USB Bus/Self Powered Hubs/Peripherals
- Portable Consumer or Medical Products
Key features
- 70mΩ (TYP) High-side P-Channel MOSFET
- Low Quiescent Current
- Input Voltage from 2.5V to 5.5V
- Three Current Limit Levels 1.1A, 2.1A, 2.6A
- Maximum Shutdown Current ≤1uA
- Soft-Start Function
- Under-Voltage Lockout Protection for VIN
- No Reversed Leakage Current
- Thermal Shutdown Protection
- Operation temperature from -40°C to 85°C
- Lead-Free Packages: SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS2582YF5#C42459544RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 4,185 | ₹27.99 · 4,185 in stock | View |
 | RS2588BYF5#C5352785RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 1,815 | ₹27.48 · 1,815 in stock | View |
