RUNICDatasheet (PDF)

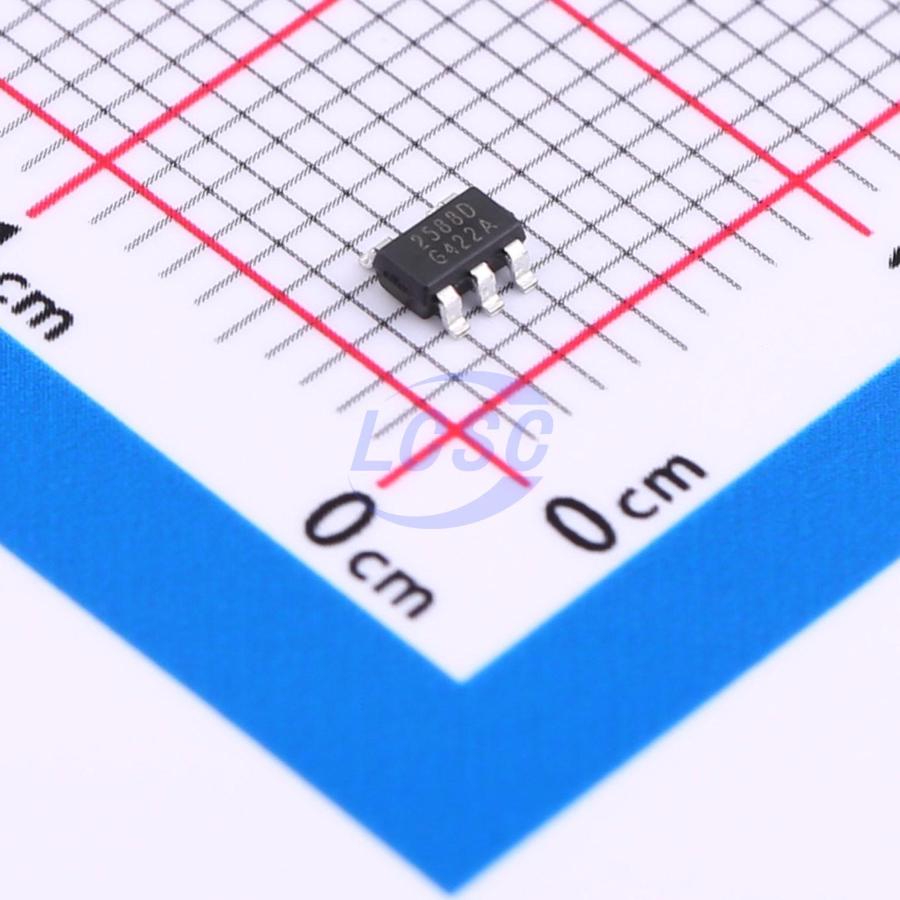

RS2588DYF5
3A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
Low Quiescent Current Power Distribution Switch
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2588DYF5
- Store part #
- C42459547
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,670 in stock
#C42459547
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.08 | ₹165.40 |
| 50+ | ₹25.97 | ₹1,298.50 |
| 150+ | ₹22.93 | ₹3,439.50 |
| 500+ | ₹19.13 | ₹9,565.00 |
| 3,000+ | ₹17.44 | ₹52,320.00 |
| 6,000+ | ₹16.43 | ₹98,580.00 |
5 × ₹33.08
₹165.40
excl. GST
₹195.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS2588DYF5
₹165.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Soft-start;Reverse voltage protection
- Maximum Continuous Current
- 3A
- Control Input Logic
- Active High
- Operating Voltage
- 2.5V~5.5V
- RDS(on)
- 54mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
The RS2588 is an integrated 70mΩ/54mΩ (TYP,70mΩ for RS2588A/B/C, 54mΩ for RS2588D) power switch for self-powered and bus-powered universal series bus (USB) applications. The RS2588 is internally current limited and has thermal shutdown function to protect device and load from over-current damage. Thermal shutdown shuts off the output MOSFET and asserts the flag pin output if the die temperature exceeds 150°C until the die temperature drops to 130°C. The soft-start circuit can minimize inrush current in applications where highly capacitive loads are employed. The flag pin asserts low when during over-current and thermal conditions after a 13ms blanking time to prevent false reporting. The RS2588 is available in SOT23-5 package. It is rated over the -40°C to 85°C temperature range.
Applications
- Smart Phone & LCD TV
- Set-Top Boxes
- VOIP
- USB Bus/Self Powered Hubs/Peripherals
- Portable Consumer or Medical Products
Key features
- 70mΩ/54mΩ(TYP) High-side P-Channel MOSFET
- Low Quiescent Current
- Input Voltage from 2.5V to 5.5V
- Four Current Limit Levels 1.1A, 2.1A, 2.6A, 3.0A
- Maximum Shutdown Current μA
- Soft-Start Function
- Under-Voltage Lockout Protection for VIN
- No Reversed Leakage Current
- Thermal Shutdown Protection
- Operation temperature from -40°C to 85°C
- Lead-Free Packages: SOT23-5
