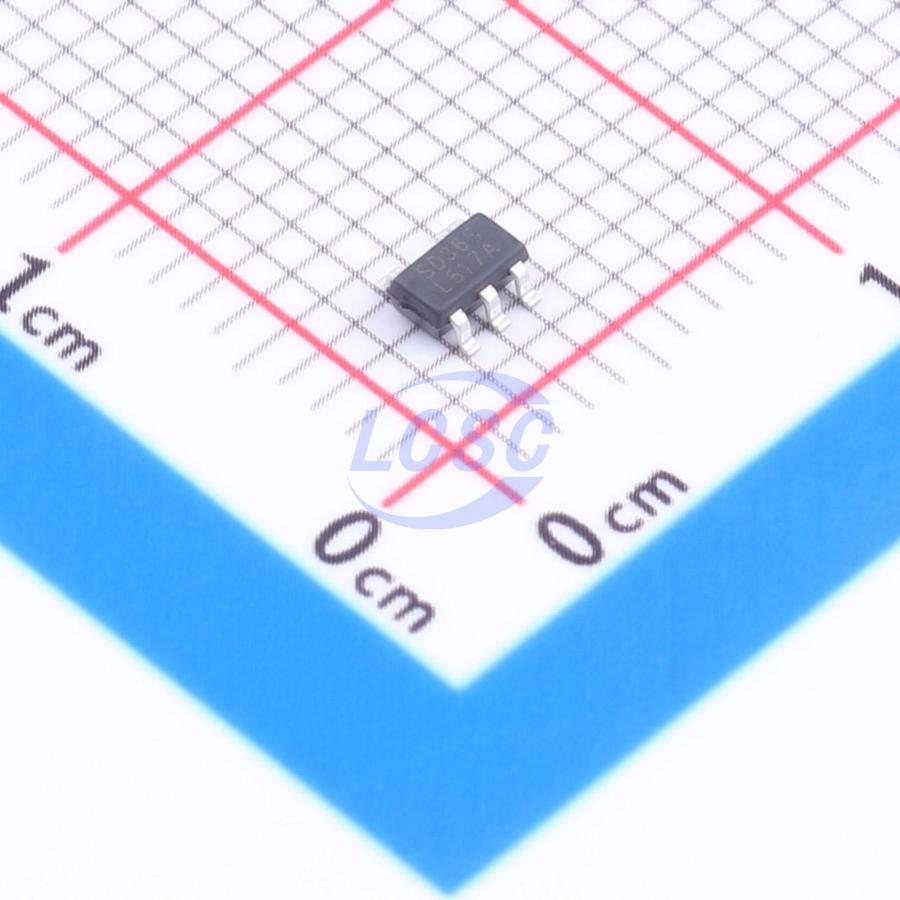

RUNIC

RS3002-3.6SYF5

3.6V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSSold out at source

IC REG LINEAR 3.6V 150mA SOT-23-5

Manufacturer: RUNIC
Manufacturer part #: RS3002-3.6SYF5
Store part #: C42459562
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,410 in stock

#C42459562

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹11.34	₹56.70
50+	₹8.93	₹446.50
150+	₹7.74	₹1,161.00
500+	₹6.84	₹3,420.00
3,000+	₹6.11	₹18,330.00
6,000+	₹5.76	₹34,560.00

Quantity (min 5, multiples of 5)

5 × ₹11.34

₹56.70

excl. GST

₹66.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS3002-3.6SYF5

₹56.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.6V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Output Configuration: Positive
Operating Voltage: 36V
Output Current: 150mA
Features: Enable control;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.032 g

Overview

The RS3002 series is a group of low-power, high-voltage linear regulators implemented in CMOS technology. Operating over a voltage range of 2.5V to 36V, it delivers 150mA output current. The device supports input voltages up to 36V. The series offers multiple fixed output voltage options. CMOS technology ensures low dropout voltage and ultra-low quiescent current. The RS3002 is available in Green SOT23-3, SOT23, SOT89-3, TO-92, SOT23-5, and SOT-223 packages. The operating ambient temperature range is -40℃ to 85℃.

Applications

Audio/video equipment
Communication equipment
Battery-powered equipment
Automotive head units
Laptops, PDAs, notebook computers

Key features

Ultra-low quiescent current: 2.5μA typical, 5μA maximum at light load
Rated output current: 150mA
Low dropout voltage
Low temperature coefficient
High input voltage (up to 36V)
Output voltage accuracy: ±2.5% (maximum, at 25℃), ±1.0% (Class A maximum, at 25℃)
Fixed output voltages: 3.0V, 3.3V, 3.6V, and 5.0V
Operating temperature range: -40℃ to 85℃
Compact packages: SOT23-3, SOT23, SOT89-3, SOT89-3 (L-type), and SOT-223
