RUNICDatasheet (PDF)

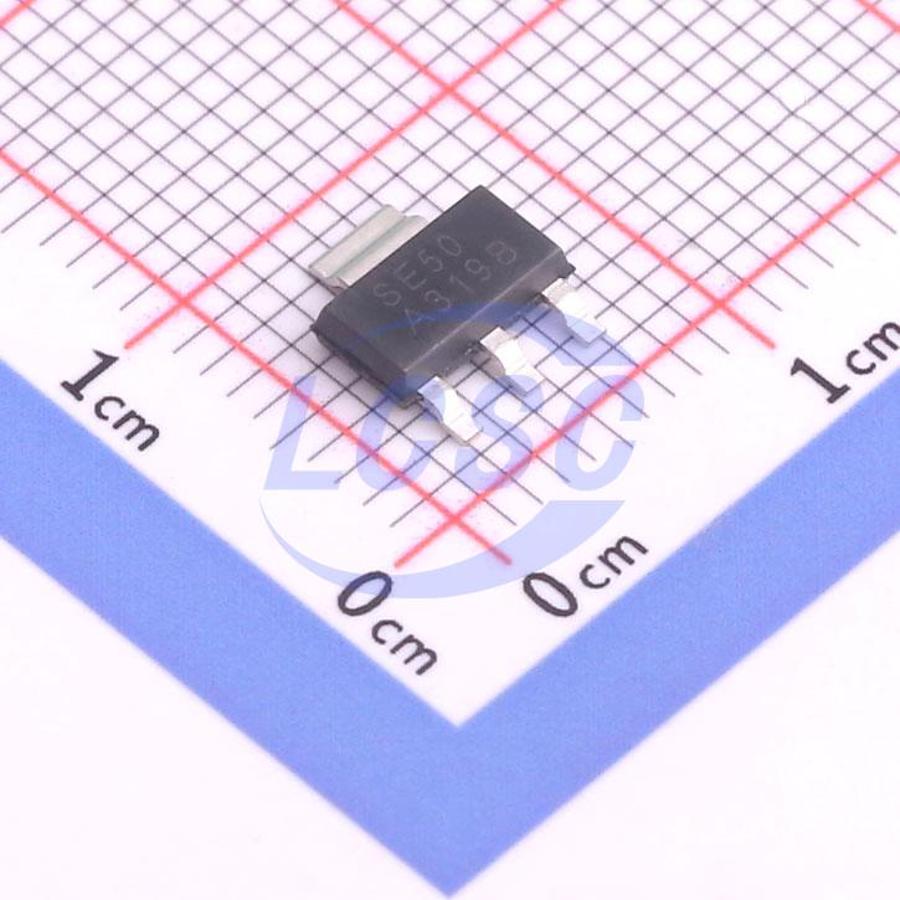

RS3007-5.0YD3
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
300mA, Low Power Consumption, High Voltage CMOS LDO Regulator
- Manufacturer
- RUNIC
- Manufacturer part #
- RS3007-5.0YD3
- Store part #
- C5372519
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,085 in stock
#C5372519
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.20 | ₹151.00 |
| 50+ | ₹22.56 | ₹1,128.00 |
| 150+ | ₹19.28 | ₹2,892.00 |
| 500+ | ₹15.19 | ₹7,595.00 |
5 × ₹30.20
₹151.00
excl. GST
₹178.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RS3007-5.0YD3
₹151.00 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 45V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.149 g
Overview
A set of Low power high voltage regulators implemented in CMOS technology. Can provide 300mA output current. Allows input voltage as high as 45V. Suitable for multicell battery systems, bus voltage power supply systems and other high DC voltage systems. Wide input voltage can withstand the impact of surge voltage and ensure the stability of output voltage. Only consume 3uA (typical), important in battery power system to reduce the standby power consumption of the whole system. Available in Green SOT23-3, SOT23-5, SOT89-3L and SOT223 and SOP8 packages for different application requirements.
Applications
- Smart Power Network Equipment
- Portable Power Tools
- BMS systems
- Motor control system/Industrial control system
- Power Meter/Instrument
- White Goods
- Vehicle-mounted system
- Battery-Powered Equipment
- Automotive Head Unit
- Security Equipment
- Communication Equipment
Key features
- Low Quiescent Current IQ: 3uA (TYP)
- 300mA Nominal Output Current
- Low Dropout Voltage
- Low Temperature Coefficient
- High Input Voltage (up to 45V)
- Output Voltage Accuracy: ±1%/±2%
- Fixed Output Voltage: 1.8V, 2.5V, 3.0V, 3.3V and 5.0V
- Current Limit Protection
- Over Temperature Protection
- SOT23-3, SOT23-5, SOT89-3L and SOT223 and SOP8 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS3015-5.0XD3-Q1#C54300661RUNIC · SOT-223 | RUNIC | SOT-223 | 2,185 | ₹46.83 · 2,185 in stock | View |
| RS3015-5.0XD3#C50202031RUNIC · SOT223 | RUNIC | SOT223 | On request | Price on request | Quote | |
