RUNICDatasheet (PDF)

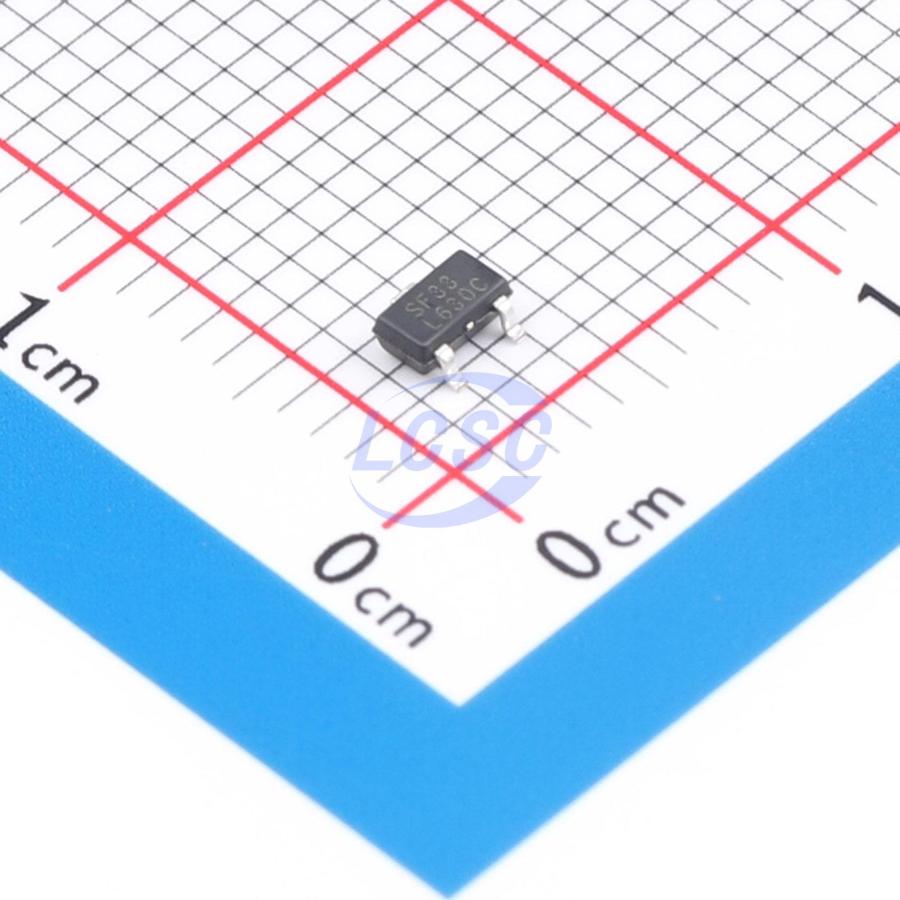

RS3015-3.3XF3
3.3V Positive Fixed SOT23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT23-3RoHSActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS3015-3.3XF3
- Store part #
- C50202030
- Package / case
- SOT23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,225 in stock
#C50202030
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.99 | ₹99.95 |
| 50+ | ₹15.93 | ₹796.50 |
| 150+ | ₹13.89 | ₹2,083.50 |
| 500+ | ₹12.37 | ₹6,185.00 |
| 3,000+ | ₹11.15 | ₹33,450.00 |
| 6,000+ | ₹10.54 | ₹63,240.00 |
5 × ₹19.99
₹99.95
excl. GST
₹117.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS3015-3.3XF3
₹99.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 45V
- Output Type
- Fixed
- Features
- Enable control;Input under-voltage protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
This device is a low dropout linear regulator designed with CMOS technology, capable of delivering 300mA output current and supporting input voltages up to 45V. It is well suited for multi-cell battery systems, bus-powered systems, automotive battery-powered systems, and other high DC voltage applications. Its wide input voltage range enables it to withstand surge voltages while maintaining output voltage stability. The series features a typical quiescent current of only 3μA, which is particularly beneficial for battery-powered systems by reducing overall system standby power consumption. The device is available in green SOT23-3, SOT23-5, SOT89-3, and SOT-223 packages to meet various application requirements.
Applications
- Smart grid equipment
- Portable power tools
- Battery management systems
- Motor control systems / Industrial control systems
- Energy meters / Instrumentation
Key features
- Input voltage range: 3 V to 45 V
- Output voltage range: Fixed options: 1.8V, 2.5V, 3.0V, 3.3V, and 5.0V
- Ultra-low quiescent current: 3µA typical
- Load current up to 300mA
- Low dropout voltage
- Low temperature coefficient
- Current limiting protection
- Over-temperature protection
- Output voltage accuracy: ±1%
- Available in SOT23-3, SOT23-5, SOT89-3, and SOT-223 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS3007-3.3AYF3#C5372514RUNIC · SOT23-3 | RUNIC | SOT23-3 | On request | Price on request | Quote |
