RS706-2.63YK

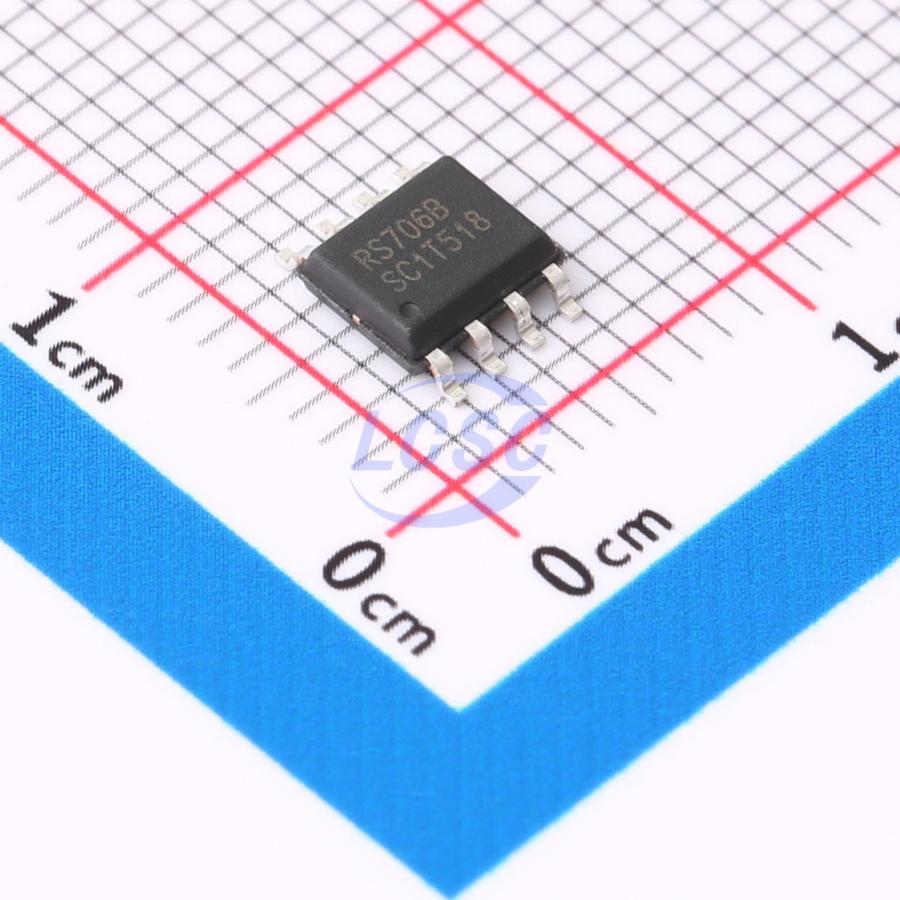

160ms Active Low 1V~5.5V 1 SOIC-8 Supervisors RoHS
Supply Voltage Supervisor with Watchdog and Manual Reset
- Manufacturer
- RUNIC
- Manufacturer part #
- RS706-2.63YK
- Store part #
- C5372601
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,195 in stock
#C5372601
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.41 | ₹182.05 |
| 50+ | ₹27.19 | ₹1,359.50 |
| 150+ | ₹23.23 | ₹3,484.50 |
| 500+ | ₹18.30 | ₹9,150.00 |
5 × ₹36.41
₹182.05
excl. GST
₹214.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS706-2.63YK
₹182.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- output type
- Open-drain
- Reset Timeout
- 160ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 20uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.119 g
Overview
The RS706 microprocessor (μP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery function in μP systems. This device significantly improves system reliability and accuracy compared to separate ICs or discrete components. The RS706 provide four functions: 1) A reset output during power-up, power-down, and brownout conditions. The reset output remains operational with VCC as low as 1.0V. 2) An independent watchdog output that goes low if the watchdog input has not been toggled within 1.6 seconds (TYP). 3) A 1.2V threshold detector for power-fail warning, lowbattery detection, or for monitoring a power supply. 4) An active-low manual-reset input. The RS706 is available in Green SOIC-8 (SOP8) package. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Computers SOC, DSP or Micro Controllers Embedded Systems
- Industrial Equipment
- Intelligent Instruments Critical μP Power Monitoring
- Wireless Communications Systems
Key features
- Operating voltage range: 1.0V to 5.5V
- Low power consumption: 40μA (maximum)
- Precision supply voltage monitoring: 2.63V, 2.93V, 3.08V, 4.00V
- Debounced TTL/CMOS-compatible manual reset input
- Guaranteed RESET asserted at Vcc = 1.00V
- 160ms reset pulse width
- Independent watchdog timer (typical 1.6 seconds)
- Timeout voltage monitoring for power failure or low battery warning
- Operating temperature range: -40°C to +125°C
- Available in green package: SOIC-8 (SOP8)
