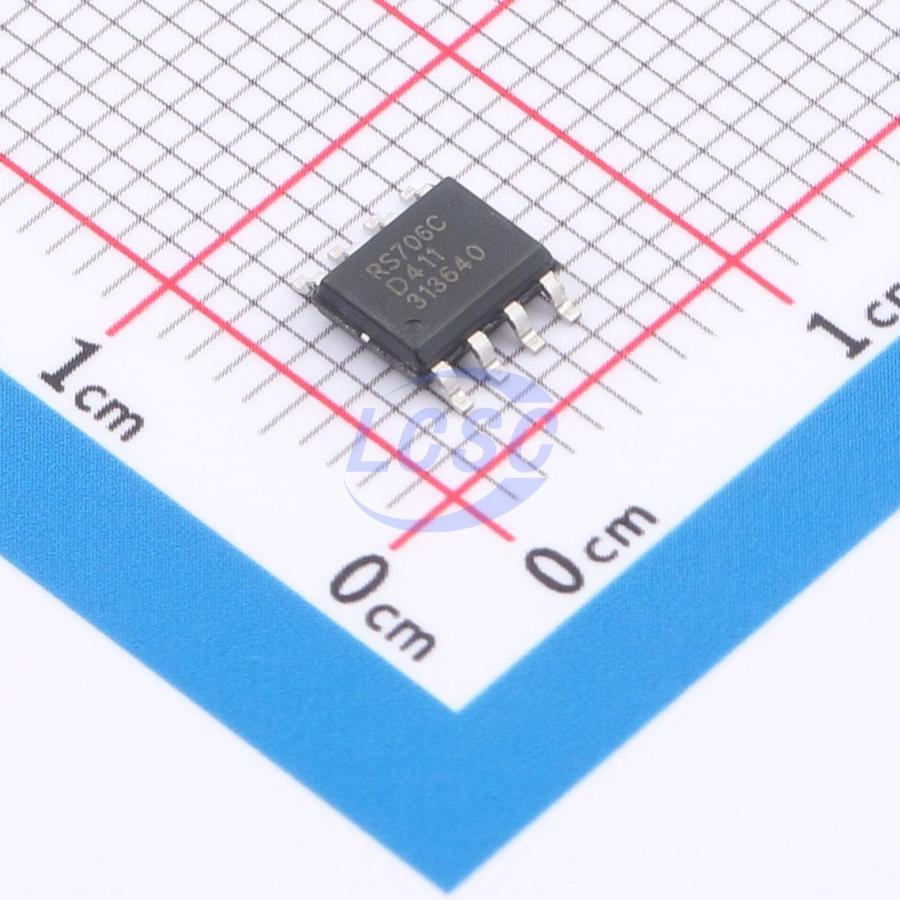

RS706-2.93XK-Q1
1.6s Active Low 3.05V~5.5V 1 SOP-8 Supervisors
- Manufacturer
- RUNIC
- Manufacturer part #
- RS706-2.93XK-Q1
- Store part #
- C42459648
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,685 in stock
#C42459648
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.90 | ₹249.50 |
| 50+ | ₹39.05 | ₹1,952.50 |
| 150+ | ₹34.28 | ₹5,142.00 |
| 500+ | ₹28.64 | ₹14,320.00 |
| 2,500+ | ₹26.04 | ₹65,100.00 |
| 4,000+ | ₹24.30 | ₹97,200.00 |
5 × ₹49.90
₹249.50
excl. GST
₹294.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS706-2.93XK-Q1
₹249.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 1.6s
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 20uA
- Voltage - Supply
- 3.05V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
The RS706-Q1 microprocessor supervisory circuit simplifies the monitoring of power-supply and battery functions in microprocessor systems, reducing the number of components and complexity required. Compared to discrete ICs or discrete components, this device significantly improves system reliability and accuracy. The RS706-Q1 provides four functions: First, it generates a reset output during power-up, power-down, and undervoltage conditions, with the reset output remaining valid down to VCC as low as 1.2V. Second, an independent watchdog output that goes low if the watchdog input is not toggled within 1.6 seconds (typical). Third, a 1.2V threshold detector for power-fail warning, battery low detection, or power-supply monitoring. Fourth, an active-low manual reset input. The RS706-Q1 is available in a green SOP8 package with an operating temperature range of -40°C to +125°C.
Applications
- System-on-chip, DSP, or microcontroller
- Industrial equipment
- Smart instrumentation
- Critical processor power supply monitoring
- Wireless communication systems
Key features
- Operating voltage range: 1.2V to 5.5V
- Low power consumption: 50µA max
- Precision supply voltage monitoring thresholds: 2.63V, 2.93V, 3.08V, 4.00V, 4.65V
- Guaranteed RESET (overline) assertion at VCC = 1.2V
- 200ms reset pulse width
- Independent watchdog timer timeout: 1.6s typical
- Voltage monitor for power failure or low battery warning
- Operating temperature range: -40°C to +125°C
