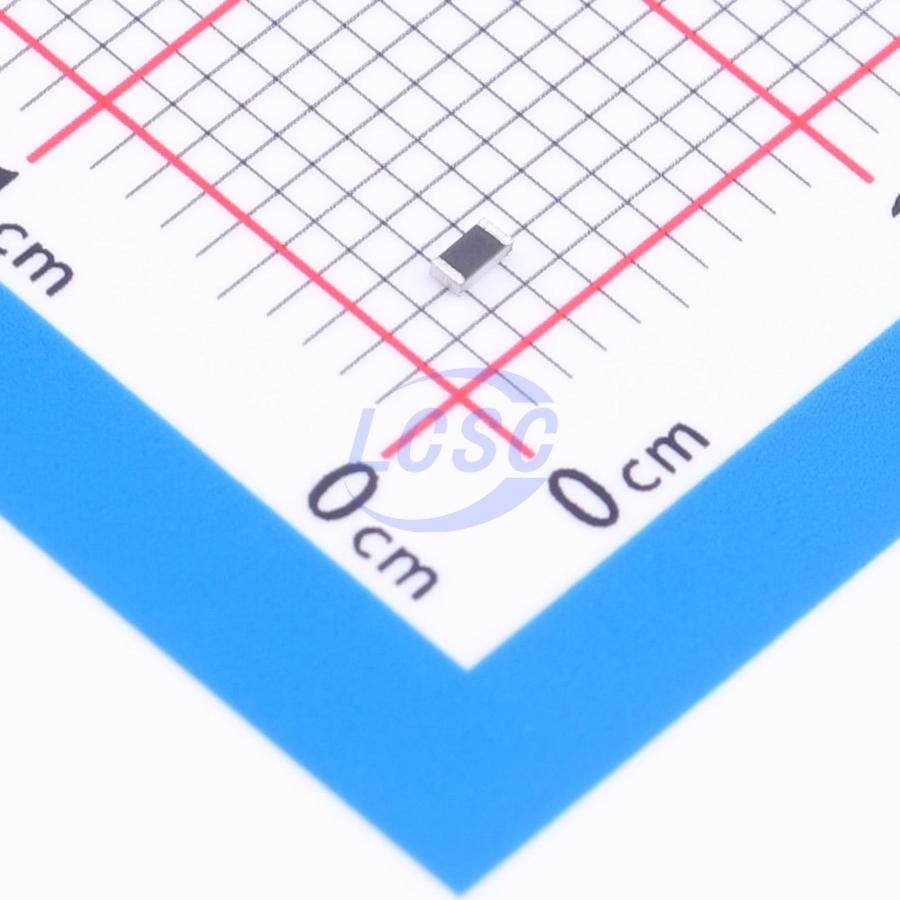

KOADatasheet (PDF)
RS73F1JTTD1501B
200mW 1.5kΩ Thick Film Resistor ±25ppm/℃ ±0.1% 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 1.5kΩ ±0.1% 200mW 0603
- Manufacturer
- KOA
- Manufacturer part #
- RS73F1JTTD1501B
- Store part #
- C3914685
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,390 in stock
#C3914685
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.80 | ₹98.00 |
| 100+ | ₹7.86 | ₹786.00 |
| 300+ | ₹6.89 | ₹2,067.00 |
| 1,000+ | ₹6.17 | ₹6,170.00 |
| 5,000+ | ₹5.58 | ₹27,900.00 |
| 10,000+ | ₹5.29 | ₹52,900.00 |
10 × ₹9.80
₹98.00
excl. GST
₹115.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RS73F1JTTD1501B
₹98.00 for 10 + GST
Specifications
- Power(Watts)
- 200mW
- Resistance
- 1.5kΩ
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
Key features
- Metal glaze thick film resistor for SMT
- High-precision resistor with temperature coefficient ±25×10⁻⁶/K and tolerance ±0.1%
- High reliability with ΔR of ±0.2% and ±0.5% in reliability testing
- Compatible with wave soldering and reflow soldering
- Lead-free termination compliant with EU RoHS. EU RoHS directive does not apply to lead glass contained in electrodes, resistive elements, and glass
- AEC-Q200 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RS73F1JRTTD1501B#C7349931KOA · 0603 | KOA | 0603 | On request | Price on request | Quote | |
 | ERJPB3B1501V#C413720PANASONIC · 0603 | PANASONIC | 0603 | On request | ₹8.28 · 0 in stock | View |
| RS73G1JTTD1501B#C4201133KOA · 0603 | KOA | 0603 | On request | Price on request | Quote | |
| RS73G1JRTTD1501B#C5871297KOA · 0603 | KOA | 0603 | On request | Price on request | Quote | |
| PHP00603E1501BBT1#C3985209VISHAY · 0603 | VISHAY | 0603 | On request | Price on request | Quote | |
