KOADatasheet (PDF)
RS73F2BTTD2001B

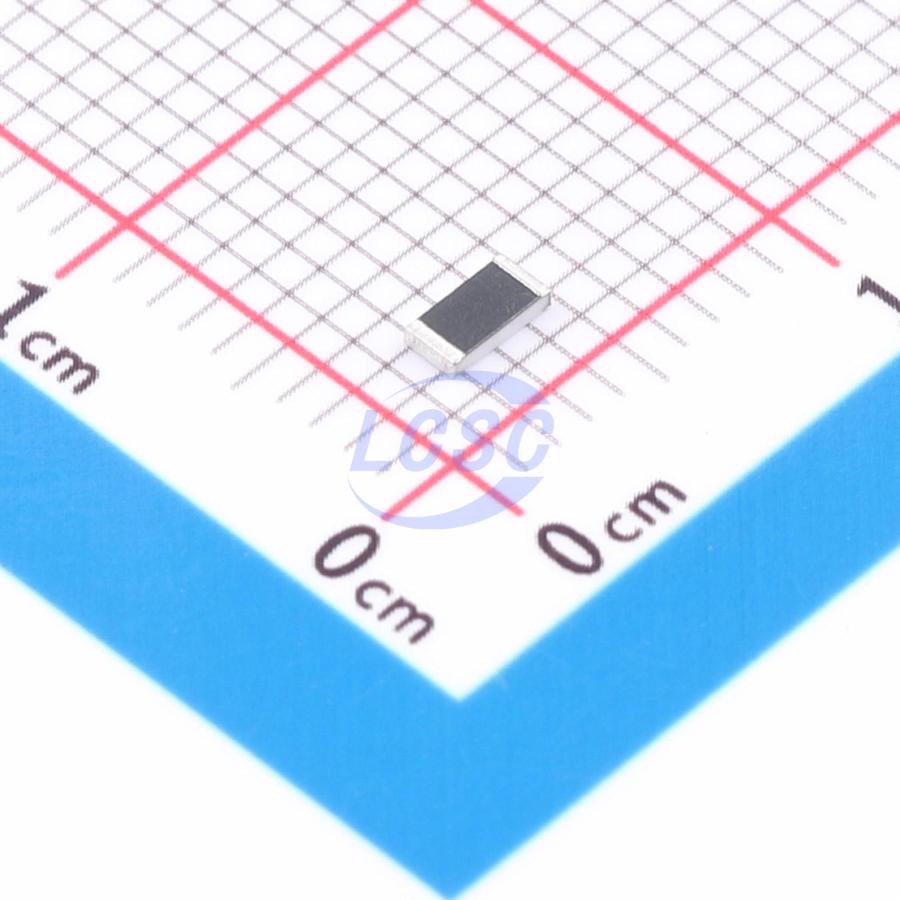

2kΩ 333mW Thick Film Resistor ±25ppm/℃ ±0.1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 2kΩ ±0.1% 333mW 1206
- Manufacturer
- KOA
- Manufacturer part #
- RS73F2BTTD2001B
- Store part #
- C4103643
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,800 in stock
#C4103643
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.34 | ₹56.70 |
| 50+ | ₹9.09 | ₹454.50 |
| 150+ | ₹7.96 | ₹1,194.00 |
| 500+ | ₹7.13 | ₹3,565.00 |
| 2,500+ | ₹6.46 | ₹16,150.00 |
| 5,000+ | ₹6.11 | ₹30,550.00 |
5 × ₹11.34
₹56.70
excl. GST
₹66.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RS73F2BTTD2001B
₹56.70 for 5 + GST
Specifications
- Resistance
- 2kΩ
- Power(Watts)
- 333mW
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Key features
- Metal glaze thick film resistor for SMT
- High-precision resistor with temperature coefficient ±25×10⁻⁶/K and tolerance ±0.1%
- High reliability with ΔR of ±0.2% and ±0.5% in reliability testing
- Compatible with wave soldering and reflow soldering
- Lead-free termination compliant with EU RoHS. EU RoHS directive does not apply to lead glass contained in electrodes, resistive elements, and glass
- AEC-Q200 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TNPW12062K00BEEA#C2076397VISHAY · 1206 | VISHAY | 1206 | 9,820 | ₹52.07 · 9,820 in stock | View |
 | RTAN1206BKE2K00#C346751SEI(Stackpole Electronics Inc.) · 1206 | SEI(Stackpole Electronics Inc.) | 1206 | 26 | ₹75.45 · 26 in stock | View |
 | EZFR1206Q2K00L9#C19677981RESI · 1206 | RESI | 1206 | 6 | ₹2,757.41 · 6 in stock | View |
| RS73F2BRTTD2001B#C6664700KOA · 1206 | KOA | 1206 | On request | Price on request | Quote | |
| RS73G2BTTD2001B#C4165564KOA · 1206 | KOA | 1206 | On request | Price on request | Quote | |
