RUNIC

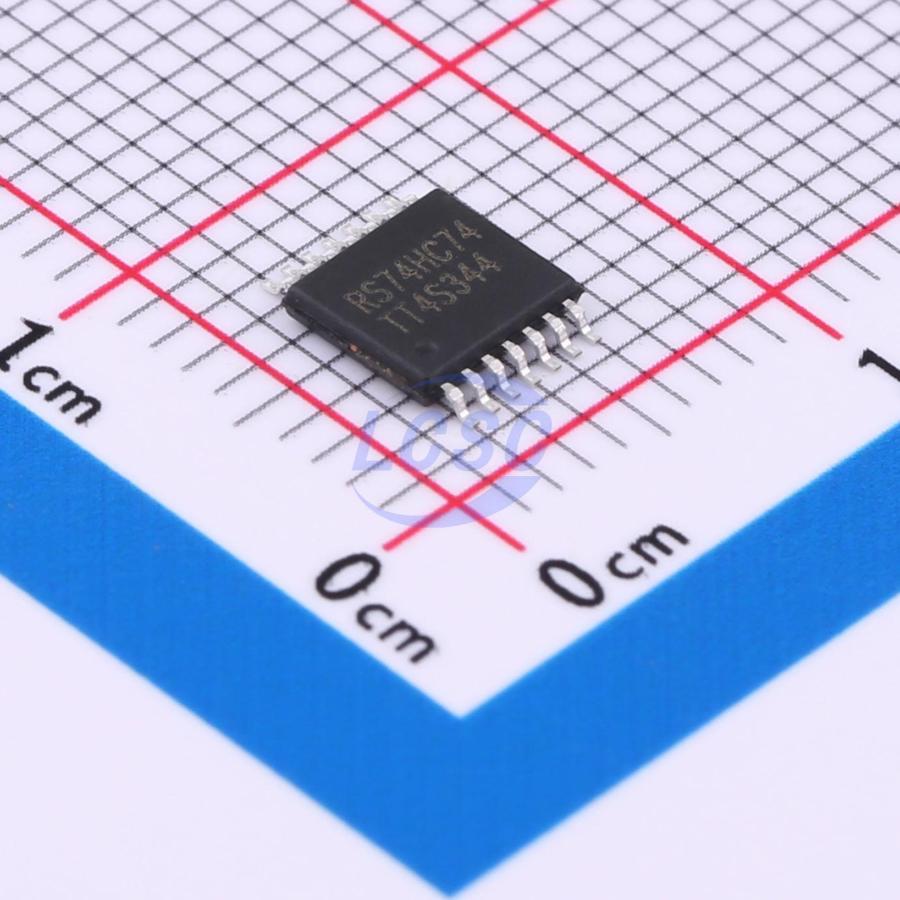

RS74HC74XQ

1.65V~5.5V 1 2 9.5ns@5V,50pF TSSOP-14 Flip Flops

TSSOP-14RoHSActive

Dual Positive-Edge-Triggered D-Type Flip-Flop with set and reset

Manufacturer: RUNIC
Manufacturer part #: RS74HC74XQ
Store part #: C20611904
Package / case: TSSOP-14
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,760 in stock

#C20611904

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹27.70	₹138.50
50+	₹21.30	₹1,065.00
150+	₹18.56	₹2,784.00
500+	₹15.14	₹7,570.00
2,500+	₹13.61	₹34,025.00
4,000+	₹12.70	₹50,800.00

Quantity (min 5, multiples of 5)

5 × ₹27.70

₹138.50

excl. GST

₹163.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS74HC74XQ

₹138.50 for 5 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Number of Bits per Element: 1
Output Type: Complementary
Operating Temperature: -40℃~+125℃
Series: 74HC
Synchronous/Asynchronous: Asynchronous
Current - Output High(IOH): 24mA
Number of Elements: 2
Current - Output Low(IOL): 24mA
Quiescent Current: 10uA
Propagation Delay: 9.5ns@5V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.072 g

Overview

The RS74HC74 dual positive-edge-triggered D-type flipflop is designed for 1.65V to 5.5V VCC operation. The RS74HC74 have individual data (nD), clock (nCP), set (n̅SD) and reset (n̅RD) inputs, and complementary nQ and nQ̅ outputs. Data at the nD-input, that meets the set-up and hold time requirements on the LOW-to-HIGH clock transition, is stored in the flip-flop and appears at the nQ output.
