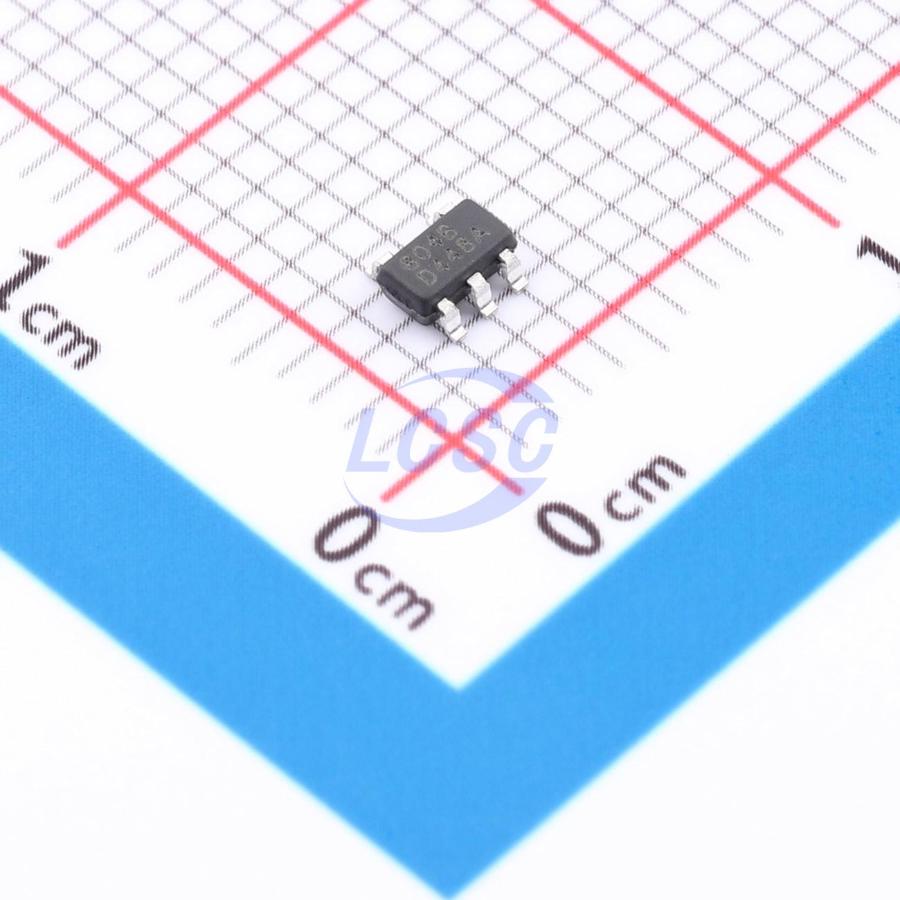

RS804-2.63XF5
Active Low 2.74V~5.5V SOT-23-5 Supervisors
- Manufacturer
- RUNIC
- Manufacturer part #
- RS804-2.63XF5
- Store part #
- C42459656
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,965 in stock
#C42459656
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.09 | ₹170.45 |
| 50+ | ₹26.43 | ₹1,321.50 |
| 150+ | ₹23.15 | ₹3,472.50 |
| 500+ | ₹19.05 | ₹9,525.00 |
| 3,000+ | ₹18.14 | ₹54,420.00 |
| 6,000+ | ₹17.04 | ₹1,02,240.00 |
5 × ₹34.09
₹170.45
excl. GST
₹201.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS804-2.63XF5
₹170.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 2.74V~5.5V
- Threshold Voltage
- 2.63V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
The RS804 can monitor system voltages from 1.2V to 5.5V. When VCC voltage drops below the reset threshold, the device will send a reset signal. When VCC voltage rises to the reset threshold, the reset output remains low within a user-adjustable reset timeout period set by an external capacitor. The RS804 also features an excellent transient immunity to ignore fast VCC transients. The RS804 is available in Green SOT23-5 package. It operates over an ambient temperature range of -40°C to 125°C.
Applications
- Computers
- Battery-Powered Applications
- Portable Equipment
- Controllers
- Intelligent Instruments
- Critical μP Power Monitoring
Key features
- Operating Voltage Range: 1.2V to 5.5V
- Low Quiescent Current: 6μA (Max)
- Adjustable Reset Timeout Period
- Guaranteed RESET(overline) Valid at Vcc = 1.2V
- Operating Temperature Range: -40°C to 125°C
- Push-Pull RESET(overline) Output
- Available in Green Package: SOT23-5
