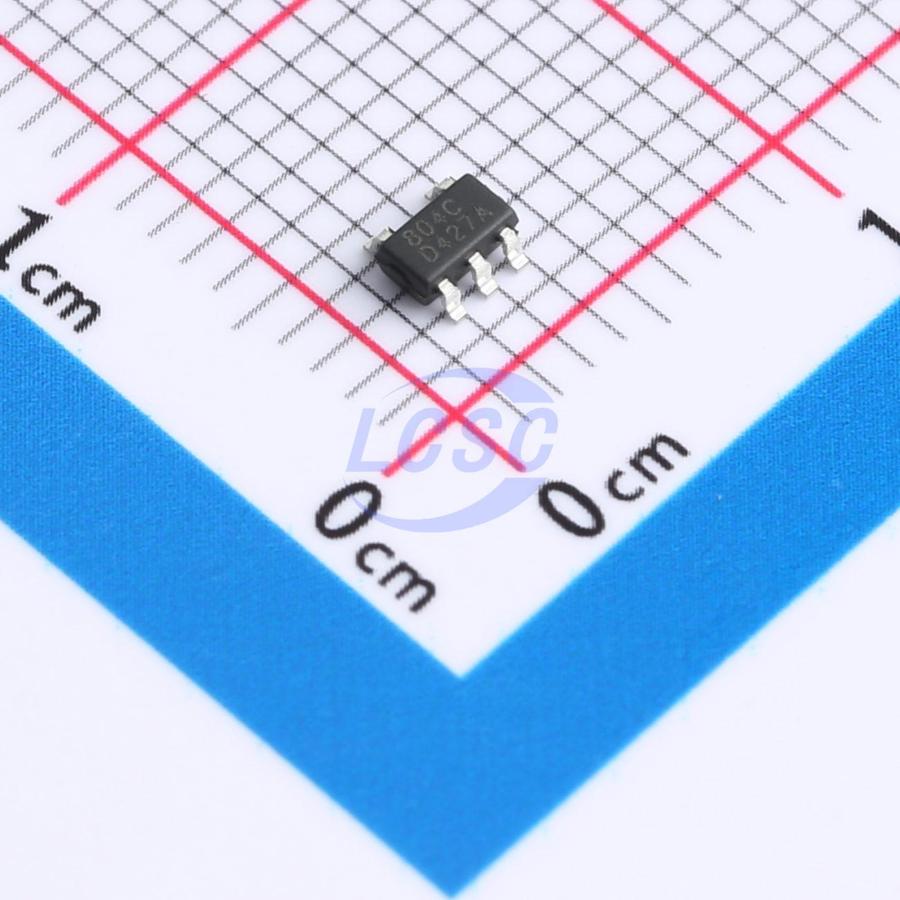

RS804-2.93XF5
50us Active Low 3.05V~5.5V 1 SOT-23-5 Supervisors
Low-power microprocessor reset circuit with adjustable reset timeout delay via capacitor
- Manufacturer
- RUNIC
- Manufacturer part #
- RS804-2.93XF5
- Store part #
- C42459657
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C42459657
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.93 | ₹189.65 |
| 50+ | ₹30.34 | ₹1,517.00 |
| 150+ | ₹27.08 | ₹4,062.00 |
| 500+ | ₹23.02 | ₹11,510.00 |
| 3,000+ | ₹21.06 | ₹63,180.00 |
| 6,000+ | ₹19.98 | ₹1,19,880.00 |
5 × ₹37.93
₹189.65
excl. GST
₹223.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS804-2.93XF5
₹189.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Push-pull
- Reset Timeout
- 50us
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 3.05V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.078 g
Overview
The RS804 can monitor system voltages from 1.2V to 5.5V. When VCC voltage drops below the reset threshold, the device will send a reset signal. When VCC voltage rises to the reset threshold, the reset output remains low within a user-adjustable reset timeout period set by an external capacitor. The RS804 also features an excellent transient immunity to ignore fast VCC transients. The RS804 is available in Green SOT23-5 package. It operates over an ambient temperature range of -40°C to 125°C.
Applications
- Computers
- Battery-Powered Applications
- Portable Equipment
- Controllers
- Intelligent Instruments
- Critical μP Power Monitoring
Key features
- Operating Voltage Range: 1.2V to 5.5V
- Low Quiescent Current: 6μA (Max)
- Adjustable Reset Timeout Period
- Guaranteed RESET(overline) Valid at Vcc = 1.2V
- Operating Temperature Range: -40°C to 125°C
- Push-Pull RESET(overline) Output
- Available in Green Package: SOT23-5
