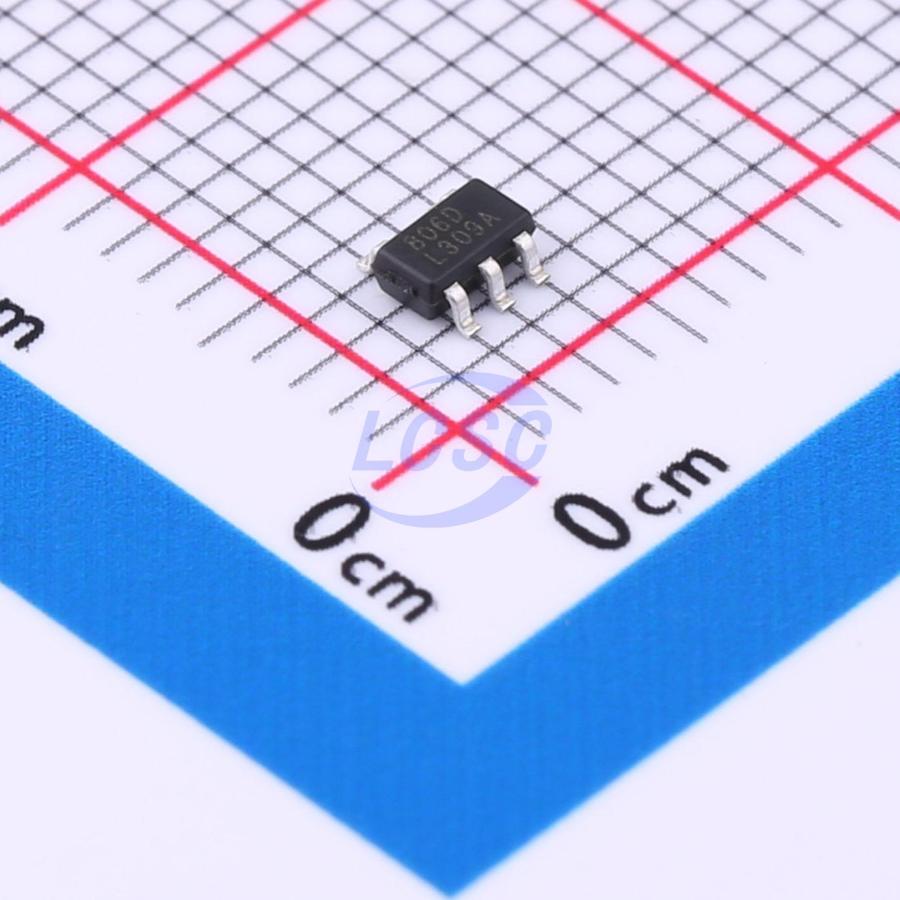

RS806-3.08YF5
200ms Active Low 3.21V~5.5V 1 SOT23-5 Supervisors RoHS
Supply Voltage Supervisor with Watchdog and Manual Reset
- Manufacturer
- RUNIC
- Manufacturer part #
- RS806-3.08YF5
- Store part #
- C7502532
- Package / case
- SOT23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C7502532
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.83 | ₹194.15 |
| 50+ | ₹29.00 | ₹1,450.00 |
| 150+ | ₹24.78 | ₹3,717.00 |
| 500+ | ₹19.51 | ₹9,755.00 |
5 × ₹38.83
₹194.15
excl. GST
₹229.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS806-3.08YF5
₹194.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 20uA
- Voltage - Supply
- 3.21V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The RS806 microprocessor (μP) supervisory circuits reduce the complexity and number of components required to monitor power- supply and battery function in μP systems. This device significantly improves system reliability and accuracy compared to separate ICs or discrete components. The RS806 provide four functions: 1) A reset output during power-up, power-down, and brownout conditions. The reset output remains operational with VCC as low as 1.2V 2) RESET output that goes low if the watchdog input has not been toggled within 1.6 seconds (typ). 3) A 1.2V threshold detector for power-fail warning, lowbattery detection, or for monitoring a power supply. 4) An active-low manual-reset input. The RS806 is available in Green SOT23- 5 package. It operates over an ambient temperature range of - 40℃ to +125℃
Applications
- Computers
- SOC, DSP or Micro controllers
- Embedded Systems
- Industrial Equipment
- Intelligent Instruments
- Critical μP Power Monitoring
- Wireless Communications Systems
Key features
- Operating Voltage Range: 1.2V to 5.5V
- Low Power Consumption: 50μA (Max)
- Precision Supply-Voltage Monitor: 2.63V, 2.93V, 3.08V, 4.00V, 4.65V
- Guaranteed RESET Valid at VCC = 1.2V
- 200ms Reset Pulse Width
- Voltage Monitor for Power-Fail or LowBattery Warning
- Operating Temperature Range: - 40°C to +125°C
- Available in Green Package: SOT23- 5
