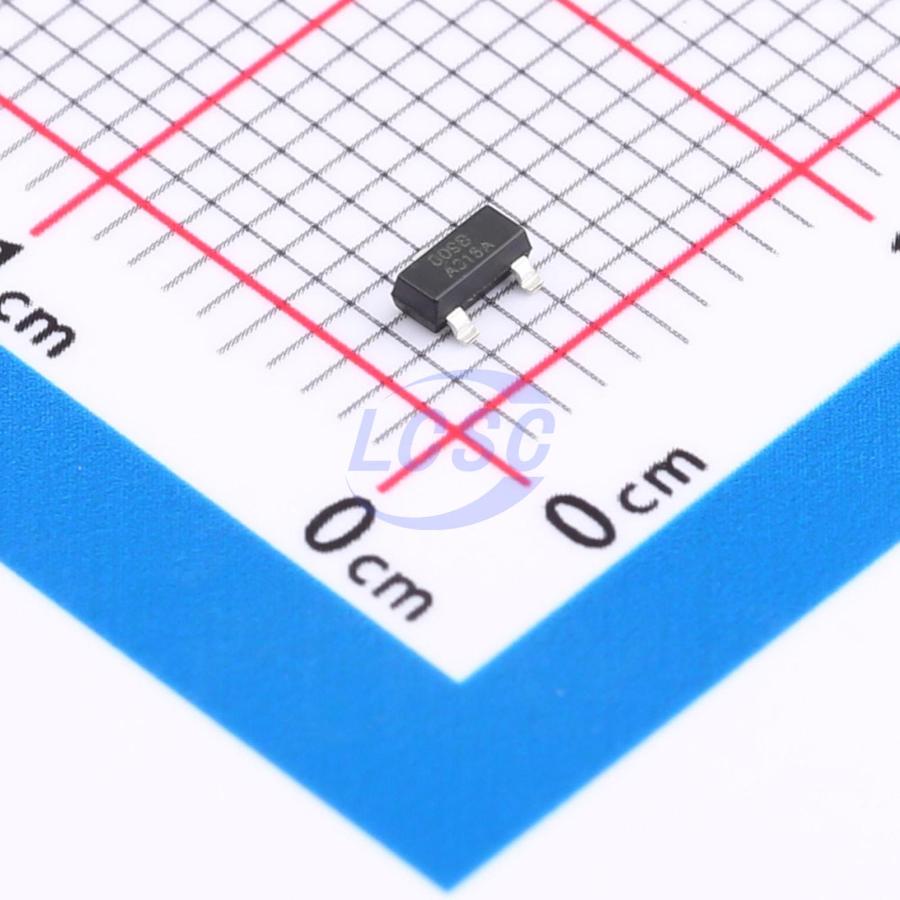

RS809-2.63YSF3
200ms Active Low 1.2V~5.5V 1 SOT23 Supervisors RoHS
Supply Voltage Supervisor with Reset Circuits
- Manufacturer
- RUNIC
- Manufacturer part #
- RS809-2.63YSF3
- Store part #
- C7502533
- Package / case
- SOT23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C7502533
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹14.14 | ₹141.40 |
| 100+ | ₹10.57 | ₹1,057.00 |
| 300+ | ₹8.78 | ₹2,634.00 |
| 3,000+ | ₹7.45 | ₹22,350.00 |
10 × ₹14.14
₹141.40
excl. GST
₹166.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS809-2.63YSF3
₹141.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 20uA
- Voltage - Supply
- 1.2V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.049 g
Overview
The RS809 microprocessor (μP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery function in μP systems. This device significantly improves system reliability and accuracy compared to separate ICs or discrete components. These circuits perform a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 200ms after VCC has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available. The RS809 have push-pull outputs. The RS809 have an active-low RESET output. The reset comparator is designed to ignore fast transients on VCC and the outputs are guaranteed to be in the correct logic state for VCC down to 1.2V. Low supply current makes the RS809 ideal for use in portable equipment. The RS809 is available in Green SOT23 package. It operates over an ambient temperature range of -40℃ to +125℃
Applications
- Computers
- SOC, DSP or Microcontrollers
- Embedded Systems
- Industrial Equipment
- Intelligent Instruments
- Critical μP Power Monitoring
- Wireless Communications Systems
Key features
- Operating Voltage Range: 1.2V to 5.5V
- Low Power Consumption: 50μA (Max)
- Precision Supply-Voltage Monitor: 2.63V, 2.93V, 3.08V, 4.00V, 4.65V
- Guaranteed RESET Valid at VCC = 1.2V
- 200ms Reset Pulse Width
- Voltage Monitor for Power-Fail or Low Battery Warning
- Operating Temperature Range: -40°C to +125°C
- Push-pull, RESET Output
- Available in Green Package: SOT23
