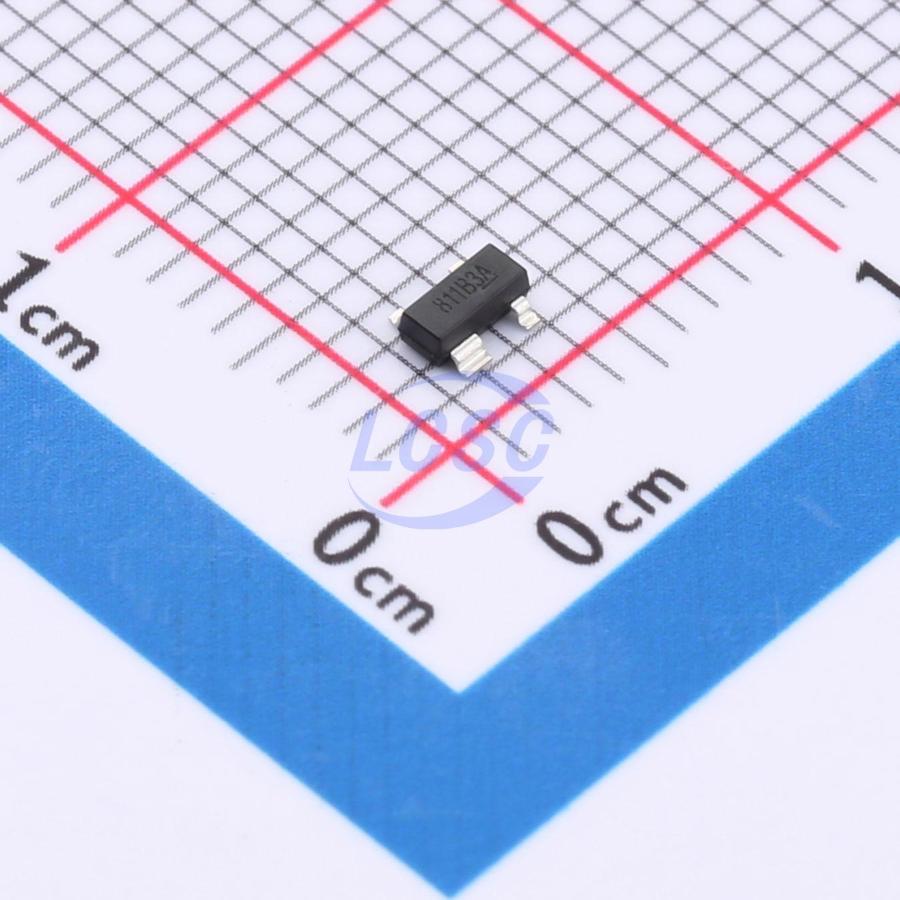

RS811-2.63YA4
200ms Manual reset input Active Low 2.74V~5.5V 1 SOT-143 Supervisors RoHS
Supply Voltage Supervisor with Manual Reset Input
- Manufacturer
- RUNIC
- Manufacturer part #
- RS811-2.63YA4
- Store part #
- C7502535
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,330 in stock
#C7502535
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.41 | ₹77.05 |
| 50+ | ₹11.52 | ₹576.00 |
| 150+ | ₹9.58 | ₹1,437.00 |
| 500+ | ₹8.11 | ₹4,055.00 |
5 × ₹15.41
₹77.05
excl. GST
₹90.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS811-2.63YA4
₹77.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 20uA
- Voltage - Supply
- 2.74V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The RS811 microprocessor (μP) supervisory circuits reduce the complexity and number of components required to monitor power- supply and battery function in μP systems. This device significantly improves system reliability and accuracy compared to separate ICs or discrete components. The RS811 provide two functions: 1) A reset output during power- up, power- down, and brownout conditions. The reset output remains operational with VCC as low as 1.2V. 2) An active- low manual- reset input. The RS811 is available in Green SOT- 143 package. It operates over an ambient temperature range of - 40℃ to +125℃
Applications
- Computers
- SOC, DSP or Micro Controllers
- Embedded Systems
- Industrial Equipment
- Intelligent Instruments
- Critical μP Power Monitoring
- Wireless Communications Systems
Key features
- Operating Voltage Range: 1.2V to 5.5V
- Low Power Consumption: 50μA (Max)
- Precision Supply- Voltage Monitor: 2.63V, 2.93V, 3.08V, 4.00V, 4.65V
- Guaranteed RESET Valid at VCC = 1.2V
- 200ms Reset Pulse Width
- Voltage Monitor for Power- Fail or LowBattery Warning
- Operating Temperature Range: - 40°C to +125°C
- Available in Green Package: SOT- 143
