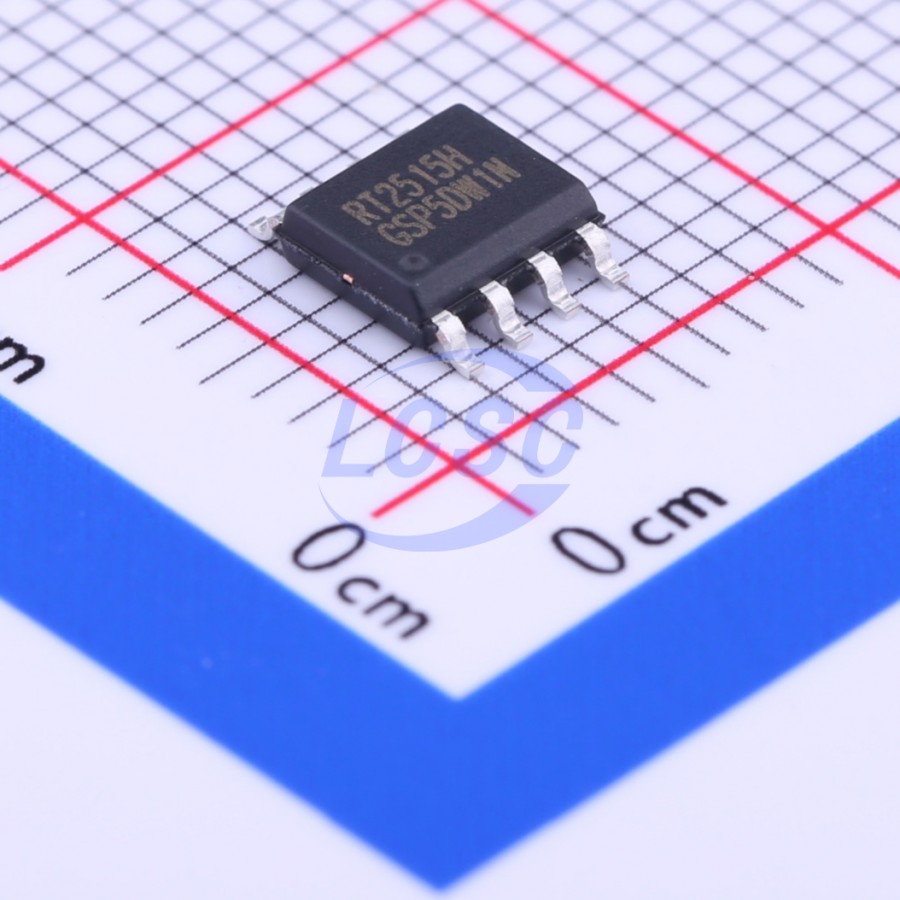

RICHTEK

RT2515HGSP

500mV~6V Positive Adjustable SOP-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOP-8-EPROHS CompliantActive

2A, Low Input Voltage, Ultra-Low Dropout LDo Regulator with Enable

Manufacturer: RICHTEK
Manufacturer part #: RT2515HGSP
Store part #: C242642
Package / case: SOP-8-EP
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,588 in stock

#C242642

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
1+	₹78.85	₹78.85
10+	₹64.09	₹640.90
30+	₹57.78	₹1,733.40
100+	₹49.96	₹4,996.00
500+	₹41.28	₹20,640.00
1,000+	₹39.11	₹39,110.00

Quantity (min 1)

1 × ₹78.85

₹78.85

excl. GST

₹93.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

RT2515HGSP

₹78.85 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 500mV~6V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 1.5mA
Output Configuration: Positive
Output Current: 2A
Operating Voltage: 6V
Features: Enable control;Over Current Protection;Thermal shutdown;Input under-voltage protection;Short Circuit Protection
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.361 g

Overview

The RT2515H is a high performance positive voltage regulator designed for use in applications requiring ultralow input voltage and ultra-low dropout voltage at up to 2 amperes. It operates with an input voltage as low as 1.4V, with output voltage programmable as low as 0.5V. The RT2515H features ultra low dropout, ideal for applications where output voltage is very close to input voltage. Additionally, the RT2515H has an enable pin to further reduce power dissipation while shutdown. The RT2515H provides excellent regulation over variations in line, load and temperature. The RT2515H is available in the SOP-8 (Exposed Pad) package. The output voltage can be set by an external divider depending on how the FB pin is configured.
